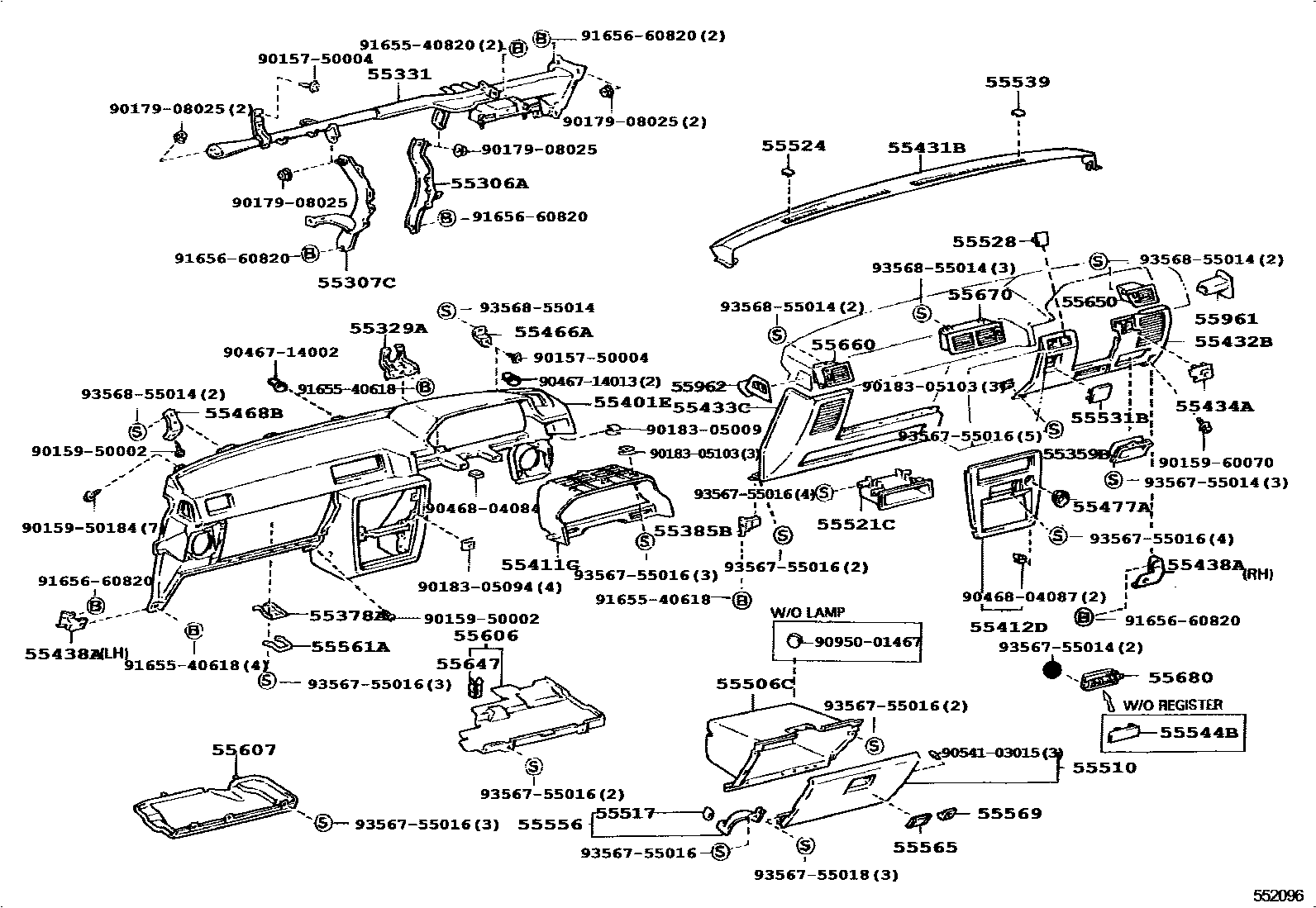

INSTRUMENT PANEL & GLOVE COMPARTMENT

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-22120iGX70,LX76,YX7#198810-199704

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-22170iGX70,LX76,YX7#198810-199704

55329ABRACKET, INSTRUMENT PANEL METER

main55329-22030iGX70,LX76,YX7#198810-199704

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-22050iGX70,LX76,YX7#198810-199704

55359BBOX, INSTRUMENT PANEL, CENTER

main55359-22020iGX70,LX76,YX7#198810-199704

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-22010iGX70,LX76,YX7#198810-199704

55385BBRACKET, FINISH PANEL MOUNTING, NO.5

main55385-22020iGX70,LX76,YX7#198810-199704

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-22210-06iGX70,LX76,YX76198810-199302

SABLE,TRIM4#

main55401-22210-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55401-22210-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

main55401-22210-32iGX70198810-199302

NEW MAROON,TRIM3#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-22250iGX70,LX76,YX7#198810-199704

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-22210iGX70,LX76,YX7#198810-199704

main55412-22300iGX70199008-199509

main55412-22380iGX70199509-199704

55431BPANEL, INSTRUMENT PANEL FINISH, UPPER

main55431-22030-03iGX70,LX76,YX76199008-199111

COOL GRAY,TRIM1#

main55431-22030-06iGX70,LX76,YX76198810-199302

SABLE,TRIM4#

main55431-22030-12iGX70198810-199302

NEW MAROON,TRIM3#

main55431-22030-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55431-22030-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-22120-06iLX76,YX76198812-199302

SABLE,TRIM4#

sub55432-22130

main55432-22120-13iLX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

sub55432-22130

main55432-22120-14iLX76,YX76198812-199008

BLUE,TRIM8#

sub55432-22130

main55432-22170-06iGX70198810-199704

SABLE,TRIM4#

main55432-22170-12iGX70198810-199302

NEW MAROON,TRIM3#

main55432-22170-13iGX70199008-199704

MEDIUM GRAY,TRIM1#

main55432-22170-14iGX70198810-199008

BLUE,TRIM8#

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-22020-06iLX76,YX76198812-199302

SABLE,TRIM4#

main55433-22020-13iLX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55433-22020-14iLX76,YX76198812-199008

BLUE,TRIM8#

main55433-22070-06iGX70198810-199704

SABLE,TRIM4#

main55433-22070-12iGX70198810-199302

NEW MAROON,TRIM3#

main55433-22070-13iGX70199008-199704

MEDIUM GRAY,TRIM1#

main55433-22070-14iGX70198810-199008

BLUE,TRIM8#

main55433-22080-03iGX70199008-199302

main55433-22080-06iGX70199008-199302

main55433-22080-12iGX70199008-199302

55434APANEL, INSTRUMENT FINISH, LOWER SUB

main55434-22040-06iGX70199302-199704

SABLE,TRIM4#

main55434-22040-12iGX70198810-199302

NEW MAROON,TRIM3#

main55434-22040-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55434-22040-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55438ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2

main55438-22010iGX70,LX76,YX7#198810-199704

main55438-22020iGX70,LX76,YX76198810-199008

main55438-22030iGX70,LX76,YX7#199008-199704

55466ARETAINER, INSTRUMENT PANEL SAFETY PAD

main55466-22030iGX70,LX76,YX7#198810-199704

55468BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.3

main55468-22030iGX70,LX76,YX7#198810-199704

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-22040iGX70,LX76,YX7#198810-199704

55506CCOMPARTMENT SUB-ASSY, GLOVE

main55506-22060iGX70,LX76,YX7#198810-199704

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-22070-06iGX70,LX76,YX76198810-199302

SABLE,TRIM4#

main55550-22070-12iGX70198810-199302

NEW MAROON,TRIM3#

main55550-22070-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55550-22070-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iGX70,LX76,YX7#198810-199704

55521CCOVER, STEREO OPENING

main55521-14050-01iLX76,YX76199008-199302

BLACK,TRIM1#,4#

55524COVER, SWITCH BACE HOLE

main55524-22050-06iGX70,LX76,YX76198810-199008

SABLE,TRIM4#

main55524-22050-12iGX70198810-199008

NEW MAROON,TRIM3#

main55524-22050-13iLX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55524-22050-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55528COVER, AUTO DRIVE OPENING

main55528-22020iGX70,LX76,YX7#198810-199704

55531BCOVER, CHOKE KNOB HOLE

main55531-22100-06iGX70,LX76,YX76..3FC,5F198810-199302

SABLE,TRIM4#

main55531-22100-12iGX70..5F198810-199302

NEW MAROON,TRIM3#

main55531-22100-13iGX70,LX76,YX7#..3FC,5F199008-199704

MEDIUM GRAY,TRIM1#

main55531-22100-14iGX70,LX76,YX76..3FC,5F198810-199008

BLUE,TRIM8#

55539COVER, SPARE SWITCH HOLE

main55539-22070-06iGX70199302-199704

SABLE,TRIM4#

main55539-22070-12iGX70198810-199302

NEW MAROON,TRIM3#

main55539-22070-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55539-22070-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55544BCOVER, INSTRUMENT PANEL LOWER REGISTER HOLE

main55544-32010-16iGX70,LX76,YX76198810-199008

SABLE,TRIM4#

main55544-32010-22iGX70198810-199008

NEW MAROON,TRIM3#

main55544-32010-33iLX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55544-32010-34iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-22060iGX70,LX76,YX7#198810-199704

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-22020iGX70,LX76,YX7#198810-199704

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22010-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55565-22010-16iGX70,LX76,YX76198810-199302

SABLE,TRIM4#

main55565-22010-22iGX70198810-199302

NEW MAROON,TRIM3#

main55565-22010-24iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22020-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55569-22020-16iGX70199302-199704

SABLE,TRIM4#

main55569-22020-22iGX70198810-199302

NEW MAROON,TRIM3#

main55569-22020-24iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-22090iGX70,LX76198810-199704

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-22040iGX70,LX76198810-199704

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iGX70,LX76198810-199704

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-22100-06iGX70,LX76,YX76198810-199302

SABLE,TRIM4#

main55650-22100-12iGX70198810-199302

NEW MAROON,TRIM3#

main55650-22100-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55650-22100-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-22080-06iGX70,LX76,YX76198810-199302

SABLE,TRIM4#

main55660-22080-12iGX70198810-199302

NEW MAROON,TRIM3#

main55660-22080-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55660-22080-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22080-06iGX70199302-199704

SABLE,TRIM4#

main55670-22080-12iGX70198810-199302

NEW MAROON,TRIM3#

main55670-22080-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55670-22080-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iGX70,LX76,YX76198810-199008

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22040-06iGX70199302-199704

SABLE,TRIM4#

main55961-22040-12iGX70198810-199302

NEW MAROON,TRIM3#

main55961-22040-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55961-22040-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-22040-06iGX70199302-199704

SABLE,TRIM4#

main55962-22040-12iGX70198810-199302

NEW MAROON,TRIM3#

main55962-22040-13iGX70,LX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main55962-22040-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

9015750004

main90157-50004

9015950002

main90159-50002

9015950184

main90159-50184

9015960070

main90159-60070

9017908025

main90179-08025

9018305009

main90183-05009

9018305094

main90183-05094

9018305103

main90183-05103

9046714002

main90467-14002

9046714013

main90467-14013

9046804084

main90468-04084

9046804087

main90468-04087

9054103015

main90541-03015

9095001467

main90950-01467

9165540618

main91655-40618

9165540820

main91655-40820

9165660820

main91656-60820

9356755014

main93567-55014

9356755016

main93567-55016

9356755018

main93567-55018

9356855014

main93568-55014

61 parts on this diagram · 1 diagram in section
