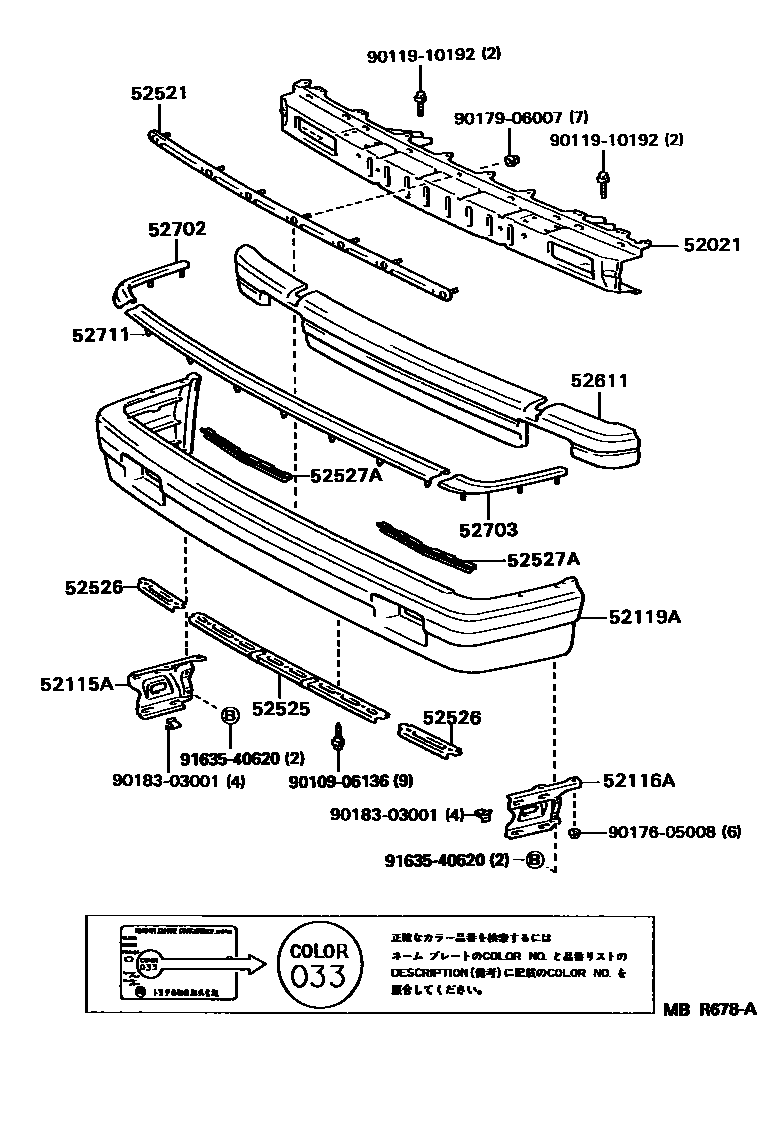

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
DARK RED MICA,3H3
sub52119-22940
sub52119-23300
sub52119-22400
sub52119-22320
sub52119-22410
sub52119-22310
SUPER SILVER 3 M,176
sub52119-22940
sub52119-23300
sub52119-22400
sub52119-22320
sub52119-22410
sub52119-22310
SUPER WHITE 4,050
sub52119-22940
sub52119-23300
sub52119-22400
sub52119-22320
sub52119-22410
sub52119-22310
52521RETAINER, FRONT BUMPER, UPPER CENTER
52525RETAINER, FRONT BUMPER, LOWER CENTER
52526RETAINER, FRONT BUMPER, LOWER SIDE
52527ARETAINER, FRONT BUMPER, LOWER CENTER NO.2
52611ABSORBER, FRONT BUMPER ENERGY
52702MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH
52703MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH
52711MOULDING, FRONT BUMPER
9010906136
main90109-06136
9011910192
main90119-10192
9017605008
main90176-05008
9017906007
main90179-06007
9018303001
main90183-03001
9163540620
main91635-40620
18 parts on this diagram · 1 diagram in section
