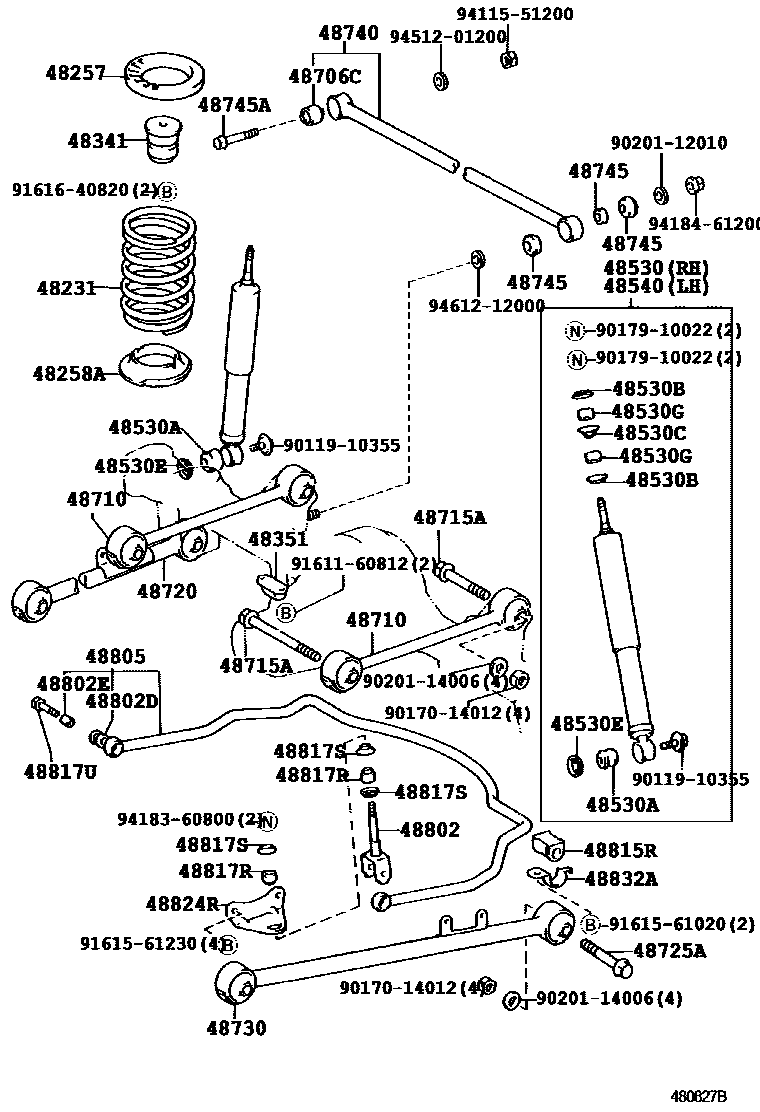

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
48257INSULATOR, REAR COIL SPRING
48258AINSULATOR, REAR COIL SPRING, LOWER
48351BUMPER, DIFFERENTIAL CARRIER
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48706CBUSH SUB-ASSY, LATERAL CONTROL ROD
48710ARM ASSY, UPPER CONTROL
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
BODY SIDE
AXLE HOUSING SIDE
48720ARM ASSY, LOWER CONTROL, RH
48725ABOLT(FOR LOWER CONTROL ARM)
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
L=12
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48802LINK SUB-ASSY, STABILIZER
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817UBOLT(FOR REAR STABILIZER)
sub91111-51040
48824RBRACKET, STABILIZER(FOR REAR)
48832ABRACKET, REAR STABILIZER BAR, NO.1
9011910355
main90119-10355
9017014012
main90170-14012
9017910022
main90179-10022
9020112010
main90201-12010
9020114006
main90201-14006
9161160812
main91611-60812
9161561020
main91615-61020
9161561230
main91615-61230
9161640820
main91616-40820
9411551200
main94115-51200
9418360800
main94183-60800
9418461200
main94184-61200
9451201200
main94512-01200
9461212000
main94612-12000
45 parts on this diagram · 1 diagram in section
