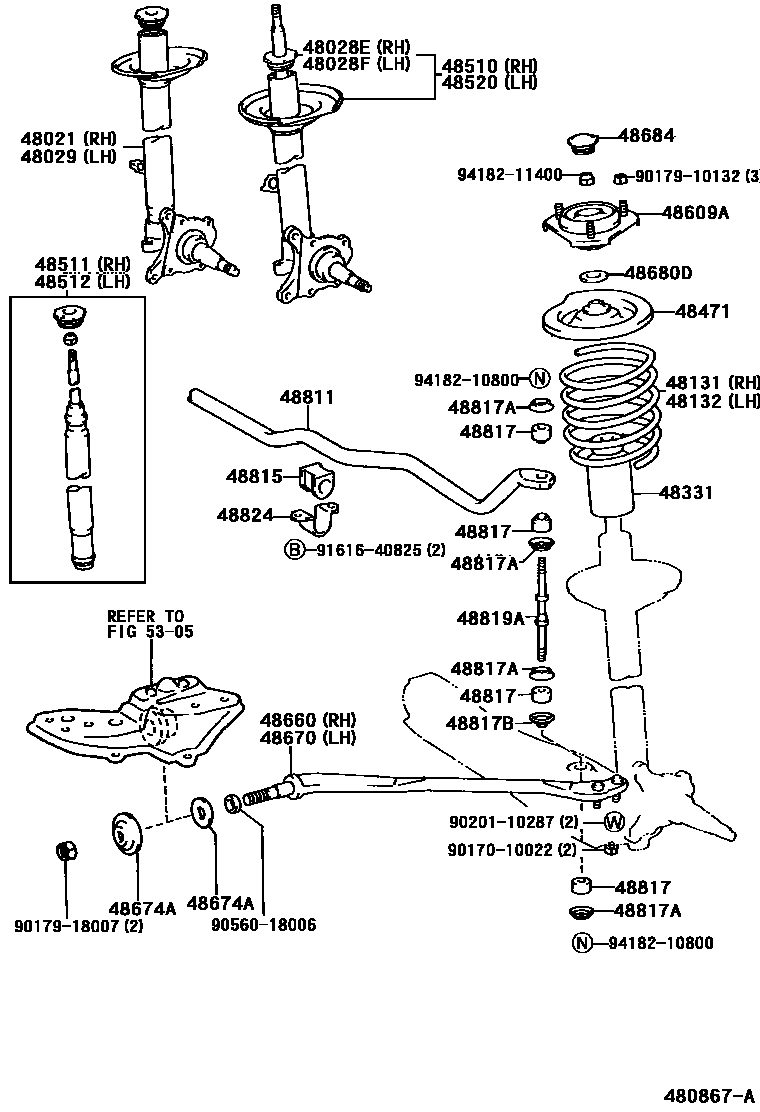

FRONT SPRING & SHOCK ABSORBER
48028ENUT SUB-ASSY, FRONT SHOCK ABSORBER RING, RH
48028FNUT SUB-ASSY, FRONT SHOCK ABSORBER RING, LH
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48331BUMPER, FRONT SPRING, NO.1
48471SEAT, FRONT SPRING, UPPER
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48660BAR ASSY, STRUT, RH
48670BAR ASSY, STRUT, LH
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
FR,OD=70
RR,OD=55
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48824BRACKET, STABILIZER, FRONT
5305
9017010022
main90170-10022
9017910132
main90179-10132
9017918007
main90179-18007
9020110287
main90201-10287
9056018006
main90560-18006
9161640825
main91616-40825
9418210800
main94182-10800
9418211400
main94182-11400
34 parts on this diagram · 1 diagram in section
