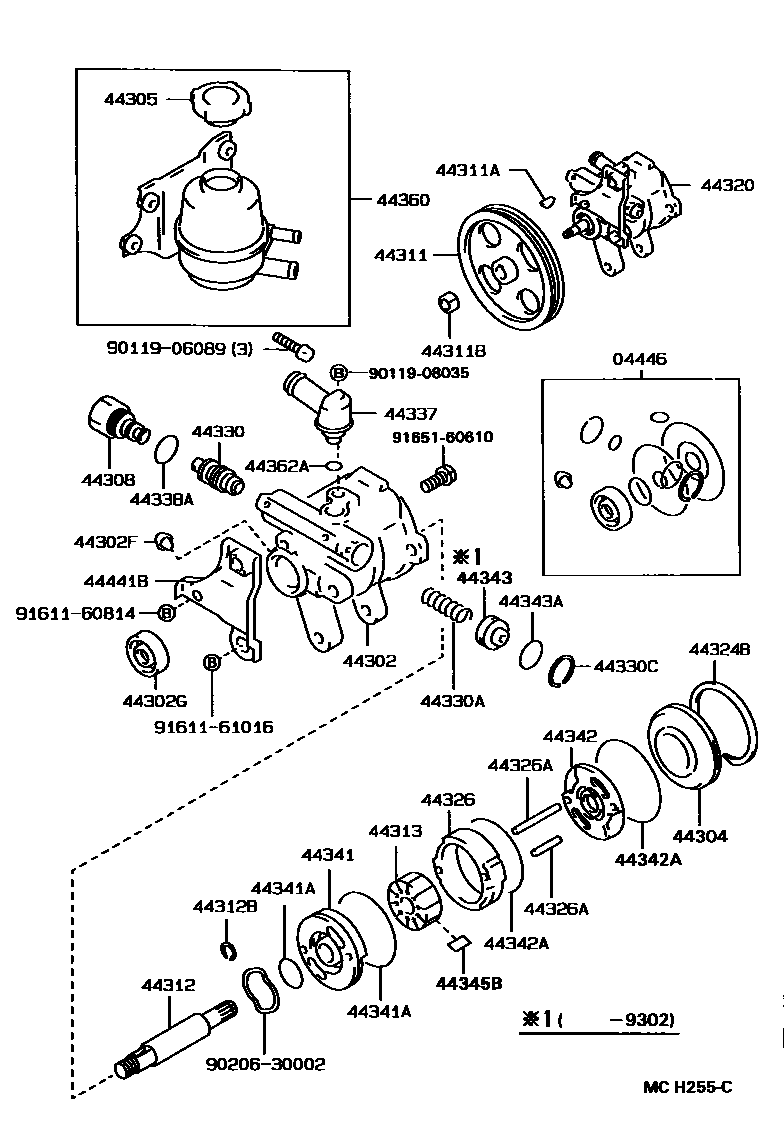

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20030iGX70198810-199502

sub04446-20031

main04446-20120iGX70199502-199704

main04446-30060iLX76198812-199012

main04446-30061iYX7#199012-199408

main04446-30132iLX76199008-199302

main04446-30141iLX76,YX78199302-199704

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iYX76198812-199012

main44302-22020iLX76198812-199302

main44302-22050iGX70198810-199302

sub44302-22070

main44302-22070iGX70199302-199704

main44302-28020iYX7#199012-199704

main44302-30110iLX76199302-199409

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iGX70,YX7#198810-199704

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17004iYX76199012-199704

main90311-18007iGX70198810-199704

main90311-24006iLX76198812-199302

sub90311-24009

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-28012iYX7#198812-199704

main44304-30051iLX76198812-199409

main44324-12031iGX70198810-199704

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iLX76198812-199012

sub44305-22050

main44305-22040iYX7#198812-199704

sub44305-22060

main44305-28020iGX70,LX76199309-199704

sub44305-28050

main44305-32030iGX70,LX76198810-199309

sub44305-28050

44308UNION SUB-ASSY, PRESSURE PORT

main44308-14041iLX76,YX7#198812-199704

main44308-22050iGX70198810-199704

44311PULLEY, VANE PUMP

main44311-12010iYX76198812-199012

main44311-22050iGX70198810-199704

main44311-22070iLX76198812-199302

main44311-30140iYX7#199012-199704

main44311-30150iLX76199302-199409

44311AKEY, VANE PUMP PULLEY

main90280-05008iGX70,LX76,YX76198810-199704

44311BNUT(FOR VANE PUMP PULLEY)

main90170-12011iLX76,YX76198812-199302

main90179-12022iGX70,LX76,YX78198810-199704

44312SHAFT, VANE PUMP

main44312-12010iLX76198812-199302

main44312-12030iGX70198810-199704

main44312-28010iYX76199202-199704

main44312-50010iYX76199012-199202

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iGX70198810-199704

main90520-15001iLX76,YX76198812-199302

main90520-15005iYX76199012-199704

44313ROTOR, VANE PUMP

main44313-22040iGX70,LX76,YX7#198810-199704

main44313-22050iGX70,LX76,YX7#198810-199704

main44313-22060iGX70,LX76,YX7#198810-199704

main44313-22070iGX70,LX76,YX7#198810-199704

main44313-22080iGX70,LX76,YX7#198810-199704

44320PUMP ASSY, VANE

main44320-22261iLX76198812-199302

main44320-22262iLX76199302-199409

main44320-22340iGX70198810-199302

sub44320-22480

main44320-22420iYX76198812-199012

sub44320-22421

sub44311-30140

sub90179-12022

main44320-22421iYX7#199012-199704

main44320-22480iGX70199302-199704

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iGX70198810-199704

44326RING, CAM(FOR VANE PUMP)

main44325-12010iLX76,YX7#198812-199704

main44325-12020iLX76,YX7#198812-199704

main44325-12030iLX76,YX7#198812-199704

main44325-12040iLX76,YX7#198812-199704

main44325-12050iLX76,YX7#198812-199704

main44325-30100iGX70198810-199704

main44325-30110iGX70198810-199704

main44325-30120iGX70198810-199704

main44325-30130iGX70198810-199704

main44325-30140iGX70198810-199704

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iGX70198810-199704

main90250-04049iGX70198810-199704

main90250-05008iLX76,YX7#198812-199704

44330VALVE ASSY, FLOW CONTROL

main44330-14010iGX70,LX76,YX76198810-198906

sub44330-20010

main44330-14020iGX70,LX76,YX76198810-198906

sub44330-20020

main44330-14030iGX70,LX76,YX76198810-198906

sub44330-20030

main44330-14040iGX70,LX76,YX76198810-198906

sub44330-20040

main44330-14050iGX70,LX76,YX76198810-198906

sub44330-20050

main44330-14060iGX70,LX76,YX76198810-198906

sub44330-20060

main44330-20010iGX70,LX76,YX7#198906-199704

sub44330-35191

main44330-20020iGX70,LX76,YX7#198906-199704

sub44330-35201

main44330-20030iGX70,LX76,YX7#198906-199704

sub44330-35211

main44330-20040iGX70,LX76,YX7#198906-199704

sub44330-35221

main44330-20050iGX70,LX76,YX7#198906-199704

sub44330-35231

main44330-20060iGX70,LX76,YX7#198906-199704

sub44330-35241

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iGX70,LX76,YX7#198810-199704

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iGX70,LX76,YX7#198810-199704

44337UNION, POWER STEERING SUCTION PORT

main44337-22060iGX70198810-199704

main44337-30010iLX76198812-199409

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iGX70198810-199704

sub90301-19013

main90301-22001iLX76,YX7#198812-199704

main96711-19014iLX76,YX7#198812-199704

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32010iGX70198810-199704

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25001iGX70198810-199704

sub90301-25008

main90301-52001iGX70198810-199704

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iLX76,YX7#198812-199704

main44342-32010iGX70198810-199704

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iGX70198810-199704

main90301-53002iLX76,YX7#198812-199704

44343SEAT, FLOW CONTROL SPRING

main44343-12040iGX70,LX76,YX76198810-199704

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iGX70,LX76,YX7#198810-199704

44345BPLATE, VANE PUMP

main44345-12010iGX70,LX76,YX7#198810-199704

main44345-12020iGX70,LX76,YX7#198810-199704

main44345-12030iGX70,LX76,YX7#198810-199704

main44345-12040iGX70,LX76,YX7#198810-199704

main44345-12050iGX70,LX76,YX7#198810-199704

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-22190iYX7#198812-199704

main44360-22100iLX76198812-199409

main44360-22110iGX70198810-199704

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-12003iGX70198810-199704

sub90301-11016

44441BBRACKET, PUMP, FRONT

main44441-22030iGX70198810-199704

9011906089

main90119-06089

9011908035

main90119-08035

9020630002

main90206-30002

9161160814

main91611-60814

9161161016

main91611-61016

9165160610

main91651-60610

38 parts on this diagram · 3 diagrams in section
