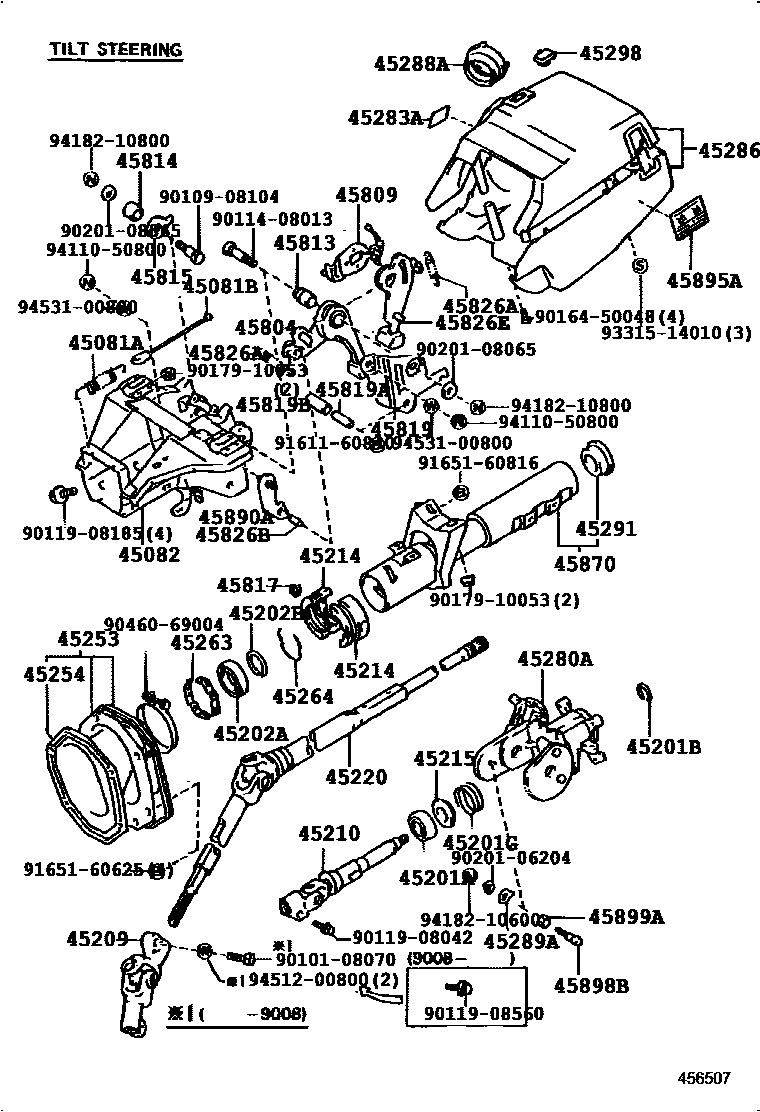

STEERING COLUMN & SHAFT
45081ASPRING, TENSION(FOR TILT STEERING)
45081BCORD(FOR TILT STEERING)
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202ABEARING, RADIAL BALL(FOR STEERING INTERMEDIATE SHAFT)
45202BRING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)
45214RETAINER, MAIN SHAFT SPRING
45215COLLAR, MAIN SHAFT BEARING THRUST
45220SHAFT ASSY, STEERING INTERMEDIATE
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45263RING, STEERING COLUMN, NO.1
45264RING, STEERING COLUMN, NO.2
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45288ASPACER, COLUMN COVER
45289ASUPPORT, STEERING COLUMN COVER
45291SEAL, MAIN SHAFT UPPER DUST
45298PLUG, STEERING COLUMN COVER
45804LEVER SUB-ASSY, STEERING TILT
45809COVER SUB-ASSY, ADJUSTER MEMORY
45813COLLAR, TILT STEERING SUPPORT, NO.1
45814COLLAR, TILT STEERING SUPPORT, NO.2
45815SHIM, TILT STEERING SUPPORT
45817STOPPER, STEERING SHAFT THRUST
45819RETAINER, TILT LEVER
45819ACOLLAR(FOR TILT LEVER RETAINER)
45819BCUSHION(FOR TILT LEVER RETAINER)
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826BPIN(FOR STEERING TILT LEVER)
45826ELEVER, STEERING TILT(FOR TILT ADJUST)
45870TUBE ASSY, STEERING COLUMN
45890APAWL ASSY, TILT STEERING
45895APLATE, TILT STEERING CAUTION
45898BBOLT, TILT STEERING SUPPORT STOPPER
sub45898-22010
45899ACOVER, TILT STEERING SUPPORT STOPPER
9010108070
main90101-08070
9010908104
main90109-08104
9011408013
main90114-08013
9011908042
main90119-08042
9011908185
main90119-08185
9011908560
main90119-08560
9016450048
main90164-50048
9017910053
main90179-10053
9020106204
main90201-06204
9020108065
main90201-08065
9046069004
main90460-69004
9161160840
main91611-60840
9165160625
main91651-60625
9165160816
main91651-60816
9331514010
main93315-14010
9411050800
main94110-50800
9418210600
main94182-10600
9418210800
main94182-10800
9451200800
main94512-00800
9453100800
main94531-00800
61 parts on this diagram · 2 diagrams in section
