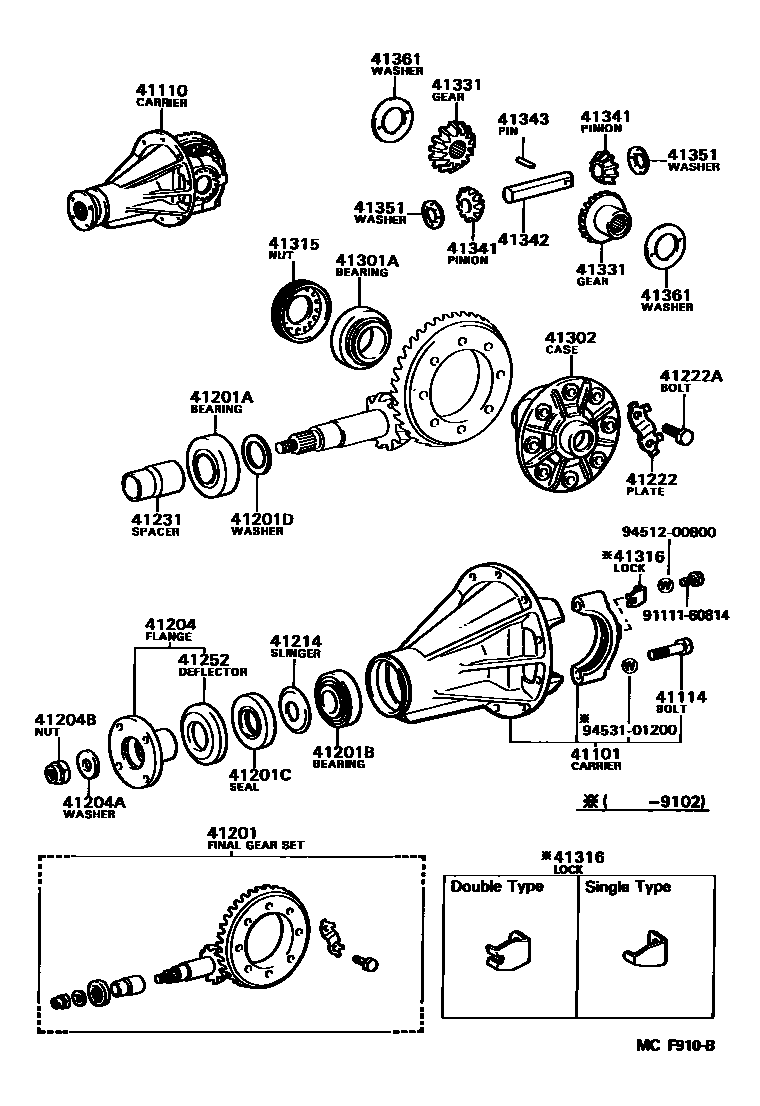

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1������ ����� ����������

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30010iGX70,YX78..3FC,5F198810-199704

main41101-30031iGX70..4FC198810-199704

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20220iGX70..4FC199302-199704

main41110-20230iGX70..4FC198810-199704

main41110-20241iYX76198812-199302

main41110-22240iGX70,LX76,YX78..3FC,5F198810-199704

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12376iGX70,LX76,YX76198810-199208

main90105-12053iGX70..4FC199102-199704

main90105-12240iGX70,LX76,YX7#..3FC,5F199208-199704

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29765iGX70,LX76,YX78..3FC,5F198810-199704

main41201-39555iYX76198812-199302

main41201-80007iGX70..4FC198810-199704

sub41201-80110

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iGX70..4FC198810-199704

main90366-35031iGX70,YX78..3FC,5F198810-199509

sub90366-35064

main90366-35067iGX70,YX78..3FC,5F199509-199704

sub90366-35064

main90366-35073iGX70..4FC199008-199311

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iGX70,LX76,YX76198810-199704

sub90366-30078

main90366-30055iGX70,YX78..3FC,5F199008-199704

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iGX70..4FC199512-199704

main90311-38133iGX70,YX78198810-199704

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iGX70,YX78198810-199704

main90201-35397iGX70,YX78198810-199704

main90201-35398iGX70,LX76,YX7#198810-199704

main90201-35399iGX70,LX76,YX7#198810-199704

main90201-35400iGX70,LX76,YX7#198810-199704

main90201-35401iGX70,LX76,YX7#198810-199704

main90201-35402iGX70,YX78198810-199704

main90201-35403iGX70,YX78198810-199704

main90201-35404iGX70,LX76,YX7#198810-199704

main90201-35434iGX70,LX76,YX7#198810-199309

sub90201-35515

main90201-35435iGX70,LX76,YX7#198810-199309

sub90201-35516

main90201-35436iGX70,LX76,YX7#198810-199309

sub90201-35517

main90201-35437iGX70,LX76,YX7#198810-199309

sub90201-35518

main90201-35438iGX70,LX76,YX7#198810-199704

main90201-35439iGX70,YX78198810-199704

main90201-35440iGX70,LX76,YX7#198810-199704

main90201-35441iGX70,LX76,YX7#198810-199704

main90201-35515iGX70,YX78199309-199704

main90201-35516iGX70,LX76,YX78199309-199704

main90201-35517iGX70,LX76,YX78199309-199704

main90201-35518iGX70,YX78199309-199704

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iGX70,LX76,YX78198810-199704

main41204-20050iGX70,LX76,YX78..3FC,5F199304-199308

sub41204-20030

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iGX70,LX76,YX7#198810-199308

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iGX70,LX76,YX7#198810-199308

main90179-18020iGX70,LX76,YX78199304-199704

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iGX70,LX76,YX7#198810-199704

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iGX70,LX76,YX7#..3FC,5F198810-199704

main41222-35030iGX70..4FC198810-199704

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iGX70..4FC198810-199704

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iGX70..4FC198810-199704

main41231-22020iGX70,YX78..3FC,5F198810-199704

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-20010iGX70,LX76,YX78..3FC,5F199304-199308

sub41252-30010

main41252-30010iGX70,LX76,YX78198810-199704

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45011iGX70,LX76,YX76..3FC,5F198810-199104

sub90368-45014

main90368-45014iGX70,LX76,YX7#..3FC,5F199104-199704

main90368-45066iGX70..4FC198810-199704

main90368-50024iGX70..4FC199302-199704

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-22011iGX70..4FC199302-199704

main41311-30022iGX70,LX76,YX7#..3FC,5F198810-199704

main41311-30050iGX70..4FC198810-199704

sub41311-28010

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iGX70,LX76,YX7#..3FC,5F198810-199704

main41315-35010iGX70..4FC198810-199704

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iGX70,LX76,YX7#198810-199308

SINGLE TYPE

main41316-35010iGX70,LX76,YX78199308-199704

SINGLE TYPE

main41317-30010iGX70,LX76,YX7#198810-199704

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-22010iGX70..4FC199302-199704

main41331-22070iGX70,YX78..3FC,5F199008-199704

sub41039-28010

main41331-30021iGX70,LX76,YX76..3FC,5F198810-199008

sub41331-22070

main41331-30030iGX70..4FC198810-199704

41341PINION, REAR DIFFERENTIAL

main41341-14031iGX70..4FC199302-199704

main41341-22030iGX70,LX76,YX7#..3FC,5F199008-199704

sub41039-28010

main41341-30011iGX70,LX76,YX76..3FC,5F198810-199008

main41341-30020iGX70..4FC198810-199704

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iGX70..4FC198810-199704

sub41342-22021

main41342-30011iGX70,LX76,YX7#..3FC,5F198810-199704

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iGX70,LX76,YX7#198810-199704

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30032iGX70,YX78..3FC,5F198810-199704

main41351-30060iGX70..4FC198810-199704

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iGX70,YX78..3FC,5F198810-199704

main41361-22030iGX70,YX78..3FC,5F198810-199704

main41361-22040iGX70,YX78..3FC,5F198810-199704

main41361-22140iGX70,YX78..3FC,5F198810-199704

main41361-22150iGX70,LX76,YX7#..3FC,5F198810-199704

main41361-22160iGX70,YX78..3FC,5F198810-199704

main41361-28120iGX70..4FC199302-199704

main41361-30040iGX70..4FC198810-199704

main41361-30050iGX70..4FC198810-199704

main41361-30060iGX70..4FC198810-199704

main41361-30070iGX70..4FC198810-199704

9111160814

main91111-60814

9451200800

main94512-00800

9453101200

main94531-01200

29 parts on this diagram · 3 diagrams in section
