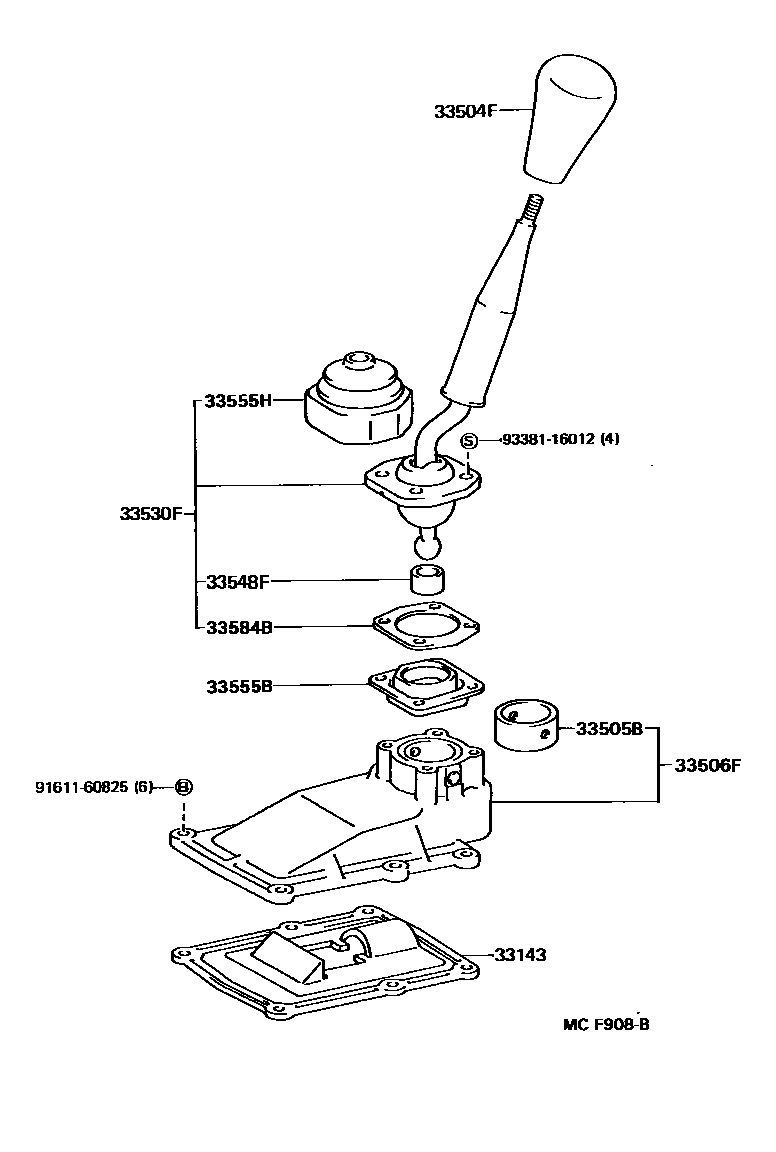

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-22020iGX70,LX76,YX76..5F198810-199110

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B0iGX70,LX76,YX78..5F199302-199704

MEDIUM GRAY,TRIM1#

main33504-12180-E0iGX70..5F199302-199704

SABLE,TRIM4#

main33504-24010-57iGX70,LX76,YX76..5F198810-199008

DARK BLUE,TRIM8#

main33504-24010-58iGX70..5F198810-199302

NEW MAROON,TRIM3#

main33504-24010-59iGX70,LX76,YX76..5F198810-199302

SABLE,TRIM4#

main33504-24010-B0iGX70,LX76,YX76..5F199008-199302

MEDIUM GRAY,TRIM1#

main33542-22150-06iYX76..3FC198812-199302

SABLE,TRIM4#

main33542-22150-13iYX76..3FC199008-199302

MEDIUM GRAY,TRIM1#

main33542-22150-14iYX76..3FC198812-199008

BLUE,TRIM8#

main33542-30130-23iGX70..4FC199008-199302

MEDIUM GRAY,TRIM1#

main33542-30130-26iGX70..4FC198810-199302

SABLE,TRIM4#

main33542-30130-32iGX70..4FC198810-199302

NEW MAROON,TRIM3#

main33542-30130-34iGX70..4FC198810-199008

BLUE,TRIM8#

main33542-30240-B1iGX70,YX78..ATM199302-199704

MEDIUM GRAY,TRIM1#

main33542-30240-E1iGX70..4FC199302-199704

SABLE,TRIM4#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-22010iGX70,LX76,YX7#..5F198812-199704

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-12030iLX76198812-199409

main33570-22070iGX70..5F198810-199110

main33570-22080iYX7#..5F198812-199704

main33570-30010iGX70..5F199110-199704

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-22180iGX70..5F198810-199111

main33530-22181iGX70..5F199111-199704

main33530-22250iYX76..5F198812-199111

main33530-22251iYX7#..5F199111-199704

main33530-22260iLX76198812-199111

main33530-22261iLX76199111-199409

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iGX70,LX76,YX7#..5F199203-199704

main33548-35010iGX70,LX76,YX76..5F199109-199203

33555BOOT, SHIFT LEVER

main33555-22070iGX70,YX7#..ATM198810-199704

33555BBOOT, SHIFT & SELECT LEVER

main33555-22090iGX70,LX76,YX76..5F198810-199110

33555HBOOT, SHIFT & SELECT LEVER, NO.4

main33555-22050iGX70,LX76,YX7#..5F198810-199704

33584BGASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iGX70,LX76,YX7#..5F198810-199704

9161160825

main91611-60825

9338116012

main93381-16012

12 parts on this diagram · 4 diagrams in section
