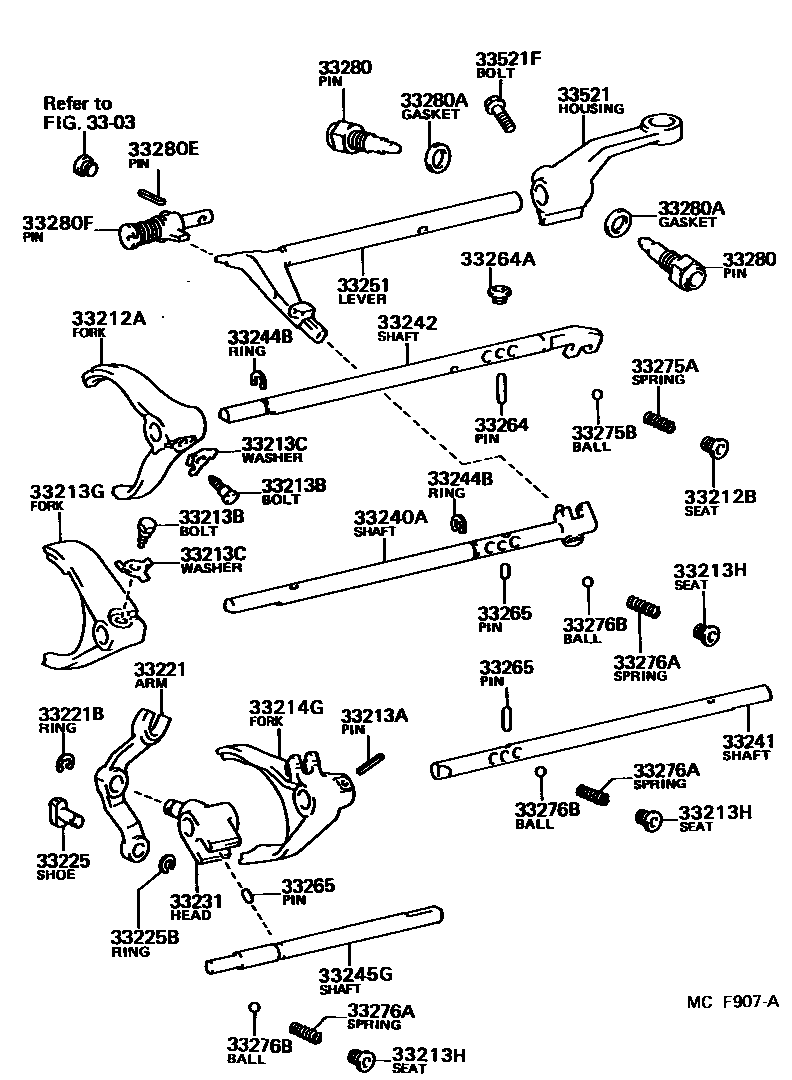

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3303
33212BPLUG, W/HEAD STRAIGHT SCREW, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213CWASHER, LOCK(FOR SHIFT FORK SET)
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33231HEAD, REVERSE SHIFT
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33264APLUG, INTERLOCK HOLE
33265PIN, SHIFT INTERLOCK, NO.2
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275BBALL, SHAFT DETENT
33276BBALL, SHIFT DETENT, NO.2
SHIFT HEAD
SHIFT FORK SHAFT
33280AGASKET, REVERSE RESTRICT PIN
33280EPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33280FPIN ASSY, REVERSE RESTRICT
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
34 parts on this diagram · 2 diagrams in section
