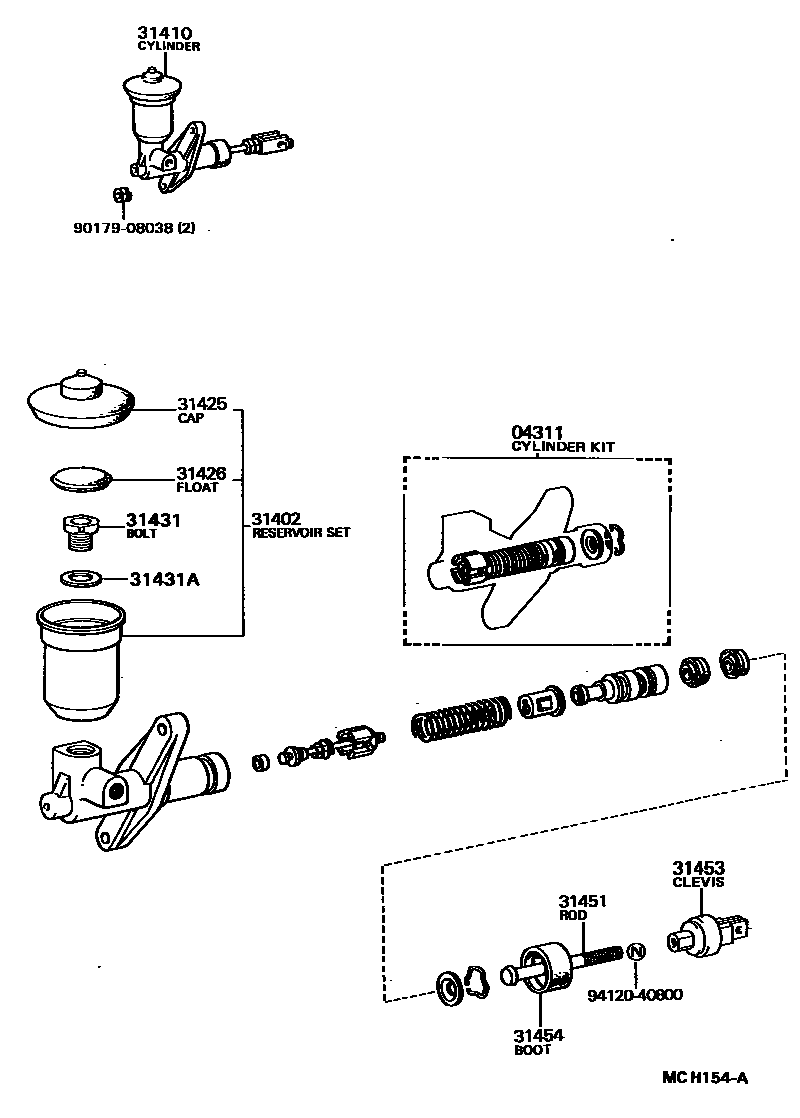

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iGX70,LX76,YX76..5F199008-199203

sub04311-12080

main04311-12080iGX70,LX76,YX7#..5F199203-199403

main04311-22050iGX70,LX76,YX76..5F198810-199008

main04311-60150iGX70,LX76,YX78..5F199403-199704

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12030iGX70,LX76,YX7#..5F199008-199704

main31402-30030iGX70,LX76,YX76..5F198810-199008

31410CYLINDER ASSY, CLUTCH MASTER

main31410-22104iYX76..5F198812-199008

main31410-22142iGX70..5F198810-198811

sub31410-22240

main31410-22240iGX70,LX76..5F198811-199008

main31410-22270iGX70,LX76,YX7#..5F199008-199704

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGX70,LX76,YX7#..5F198810-199704

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGX70,LX76,YX7#..5F198810-199704

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iGX70,LX76,YX76..5F198810-199008

31431AWASHER, RESERVOIR SET BOLT

main47232-30010iGX70,LX76,YX76..5F198810-199008

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iGX70,LX76,YX76..5F198810-199008

main31451-35080iGX70,LX76,YX7#..5F199008-199403

main31451-36040iGX70,LX76,YX78..5F199403-199704

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-22030iGX70,LX76,YX78..5F199302-199704

sub31404-35030

main31404-28012iGX70,LX76,YX76..5F198810-199008

main31404-35021iGX70,LX76,YX76..5F199008-199302

sub31404-35030

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iGX70,LX76,YX78..5F199304-199704

main31454-24010iGX70,LX76,YX7#..5F198810-199304

9017908038

main90179-08038

9412040800

main94120-40800

12 parts on this diagram · 2 diagrams in section
