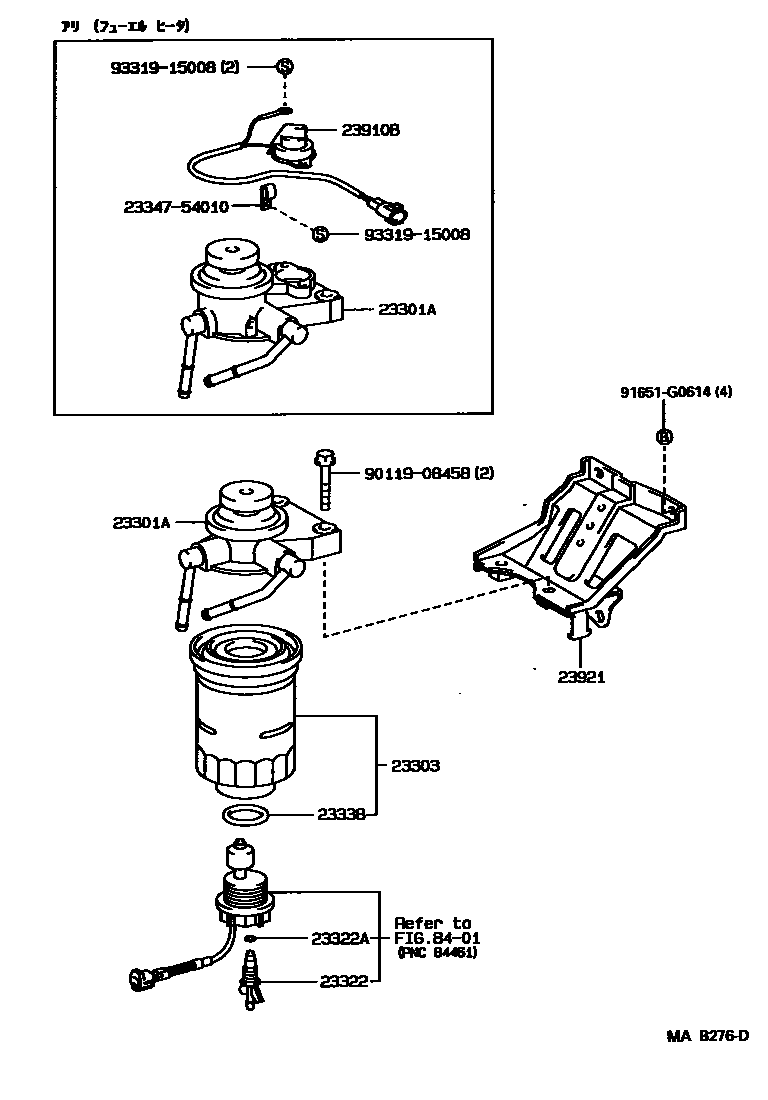

FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23301-54380i2L..LX76198812-199302

main23301-54400i2L..LX76198812-199008

main23301-54400i2L..LX76199008-199302

main23301-54640i2L..LX76199302-199409

main23301-54650i2L..LX76199302-199409

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L..LX76198812-199409

main23303-64020i2L..LX76199008-199201

sub23303-64010

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L..LX76198812-199409

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L..LX76198812-199409

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L..LX76198812-199409

23910BHEATER ASSY, FUEL

main23910-54050i2L..LX76199306-199409

main23910-64010i2L..LX76198812-199008

main23910-64010i2L..LX76199008-199306

23921SUPPORT, FUEL FILTER

main23921-54140i2L..LX76198812-199409

main90461-12003i2YJ..YX76198812-199302

8401

2334754010CLIP, CORD

main23347-54010

9011908458

main90119-08458

91651G0614

main91651-G0614

9331915008

main93319-15008

12 parts on this diagram · 2 diagrams in section
