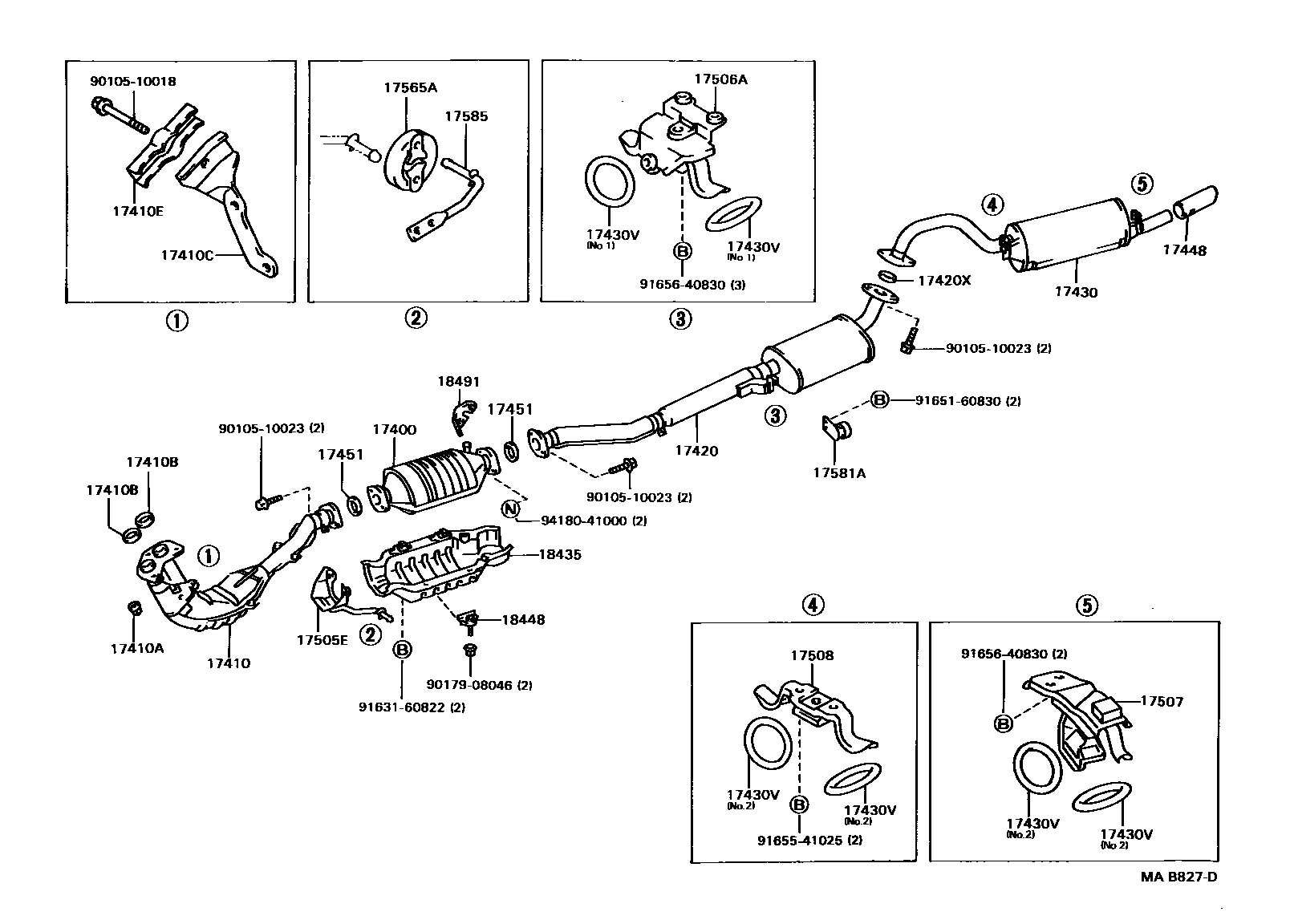

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17448BAFFLE, TAILPIPE
17505ESUPPORT SUB-ASSY, CATALYTIC CONVERTER
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17581ADAMPER, EXHAUST PIPE
17585HANGER, EXHAUST PIPE
18435PROTECTOR, CATALYTIC CONVERTER
18448BRACKET, CONVERTER PROTECTOR, CENTER
18491FLANGE, THERMOSENSOR INLET
9010510018
main90105-10018
9010510023
main90105-10023
9017908046
main90179-08046
9163160822
main91631-60822
9165160830
main91651-60830
9165541025
main91655-41025
9165640830
main91656-40830
9418041000
main94180-41000
30 parts on this diagram · 4 diagrams in section
