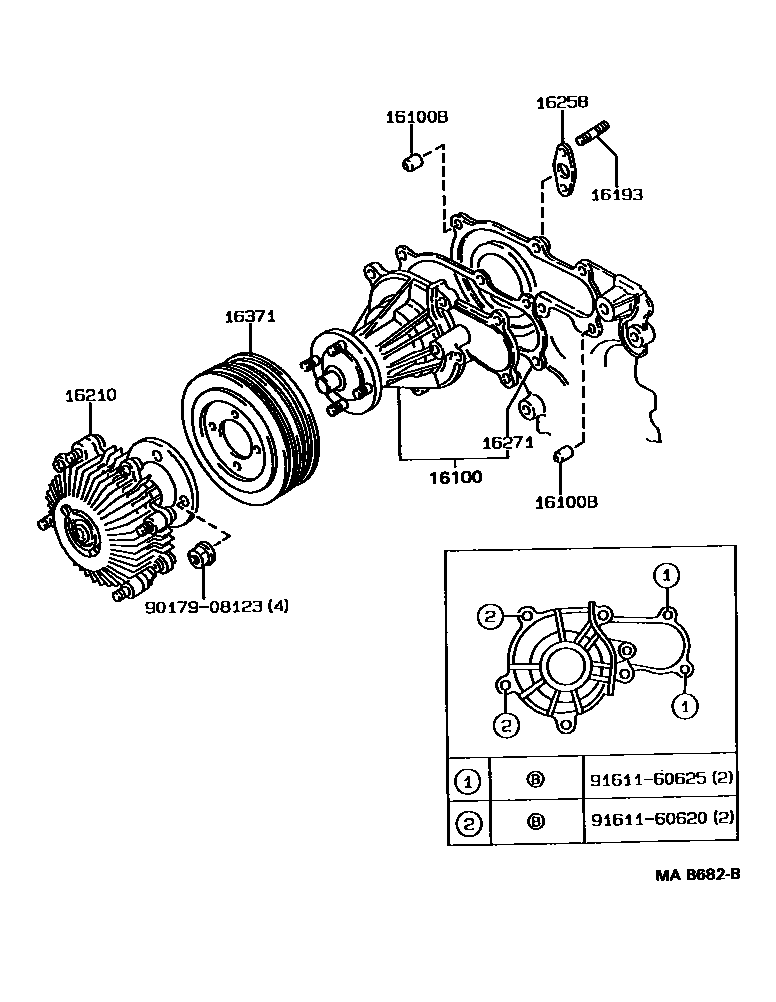

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-59155i2L..LX76198812-199409

sub16100-59255

main16100-79036i2YJ,3YE..YX7#198812-199704

sub16100-79037

main16100-79115i1GFE..GX70198810-199007

main16100-79116i1GFE..GX70199007-199704

sub16100-79117

sub90119-08B68

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040×2i1GFE..GX70198810-199704

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010×2i1GFE..GX70198810-199704

16210COUPLING ASSY, FLUID

main16210-31010i3YE..YX78199302-199704

main16210-54130i2L..LX76198812-199409

main16210-70060i1GFE..GX70198810-199704

main16210-72010i2YJ..YX76198812-199302

16258GASKET(FOR HEATER RETURN)

main16258-15011i1GFE..GX70198810-199009

main16258-70020i1GFE..GX70199009-199704

16271GASKET, WATER PUMP

main16124-70041i1GFE..GX70199102-199704

main16124-88300i1GFE..GX70198810-199102

main16271-54020i2L..LX76198812-199409

sub16271-54030

16371PULLEY, FAN

main16371-54030i2L..LX76198812-199409

main16371-70060i1GFE..GX70198810-199704

sub16371-70061

main16371-71010i2YJ..YX76198812-199302

sub16371-71021

main16371-73011i3YE..YX78199302-199704

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625

10 parts on this diagram · 3 diagrams in section
