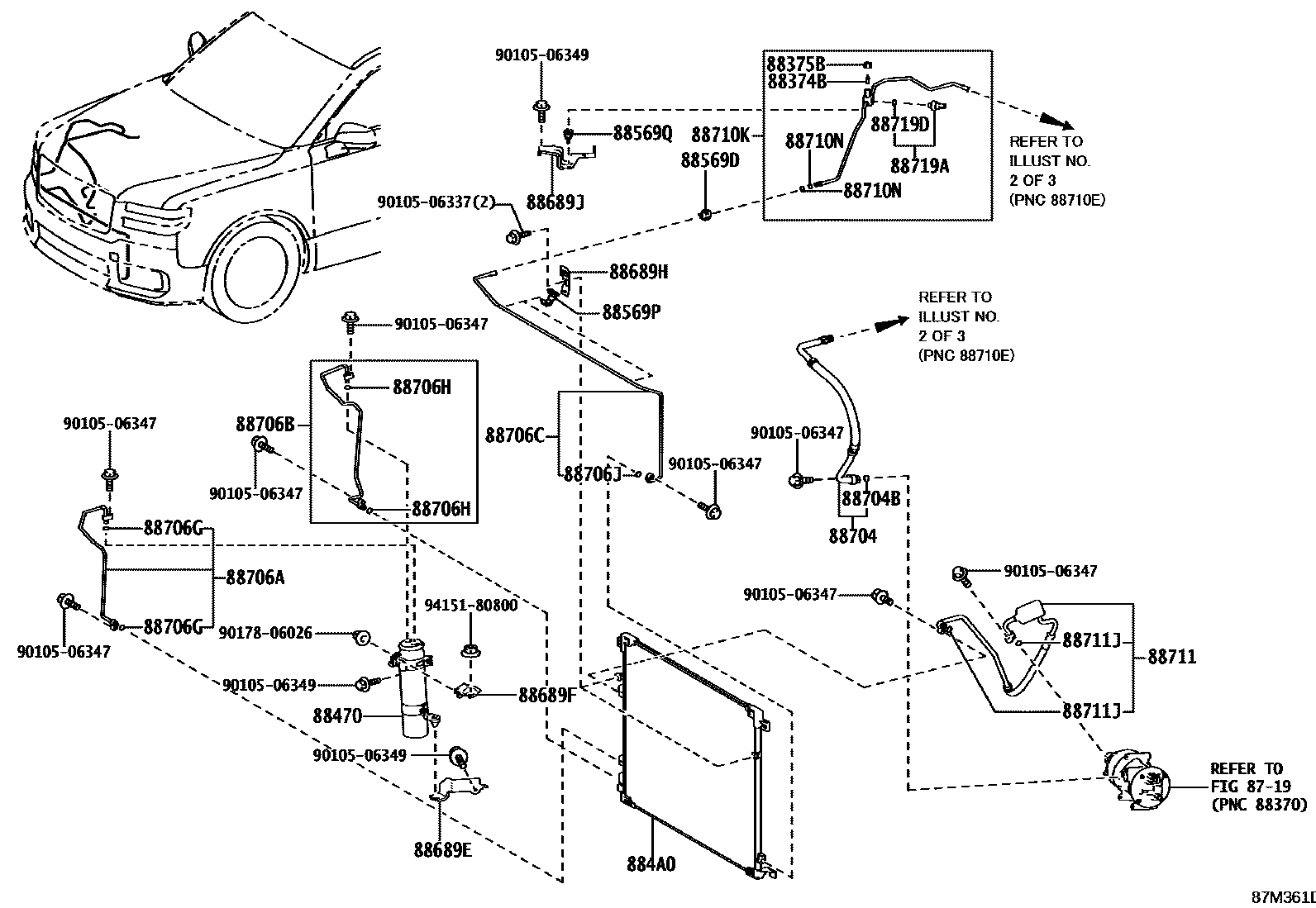

HEATING & AIR CONDITIONING - COOLER PIPING
8719
88374BVALVE, SERVICE, NO.1
88375BCAP, SERVICE VALVE, NO.1
88470RECEIVER & DRYER ASSY, COOLER
884A0CONDENSER ASSY, COOLER
88569DCLAMP, COOLER, NO.1
88569PCLAMP, COOLER, NO.4
88569QCLAMP, COOLER, NO.5
88689EBRACKET, COOLER, NO.1
88689FBRACKET, COOLER, NO.2
88689HBRACKET, COOLER, NO.4
88689JBRACKET, COOLER, NO.5
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
88706ATUBE SUB-ASSY, LIQUID, A
88706BTUBE SUB-ASSY, LIQUID, B
88706CTUBE SUB-ASSY, LIQUID, C
88706GRING, O(FOR LIQUID TUBE)
88706HRING, O, NO.2(FOR LIQUID TUBE)
88706JRING, O, NO.3(FOR LIQUID TUBE)
88710KTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711JRING, O, NO.1(FOR DISCHARGE HOSE)
88719ASENSOR, AIR CONDITIONER PRESSURE
88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)
9010506337
main90105-06337
9010506347
main90105-06347
9010506349
main90105-06349
9017806026
main90178-06026
9415180800
main94151-80800
31 parts on this diagram · 3 diagrams in section
