SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-40160iGRG75202310

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-40150iGRG75202310

86150HSPEAKER ASSY, W/BRACKET

main86150-40170iGRG75202310

main86150-40180iGRG75202310

86160SPEAKER ASSY, FRONT NO.1

main86160-40350iGRG75202310

86160BSPEAKER ASSY, REAR

main86160-40340iGRG75202310

86160JSPEAKER ASSY, FRONT NO.3

main86150-40150iGRG75202310

86160LSPEAKER ASSY, FRONT NO.4

main86160-40320iGRG75202310

86160RSPEAKER ASSY, STEREO COMPONENT

main86160-40330iGRG75202310

86160YSPEAKER ASSY, REAR NO.2

main86160-40330iGRG75202310

86160ZSPEAKER ASSY, REAR NO.3

main86150-40150iGRG75202310

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-40080iGRG75202310

86202WIRE, SPEAKER, NO.1

main86202-40040iGRG75202310

86202AWIRE, SPEAKER, NO.2

main86202-40050iGRG75202310

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-60030iGRG75202310-202406

sub86240-60031

main86240-60031iGRG75202407

9011906355

main90119-06355

9011906A07

main90119-06A07

9015950311

main90159-50311

9015960303

main90159-60303

9017906274

main90179-06274

9017906278

main90179-06278

9017906308

main90179-06308

9018906227

main90189-06227

9167180616

main91671-80616

9356855014

main93568-55014

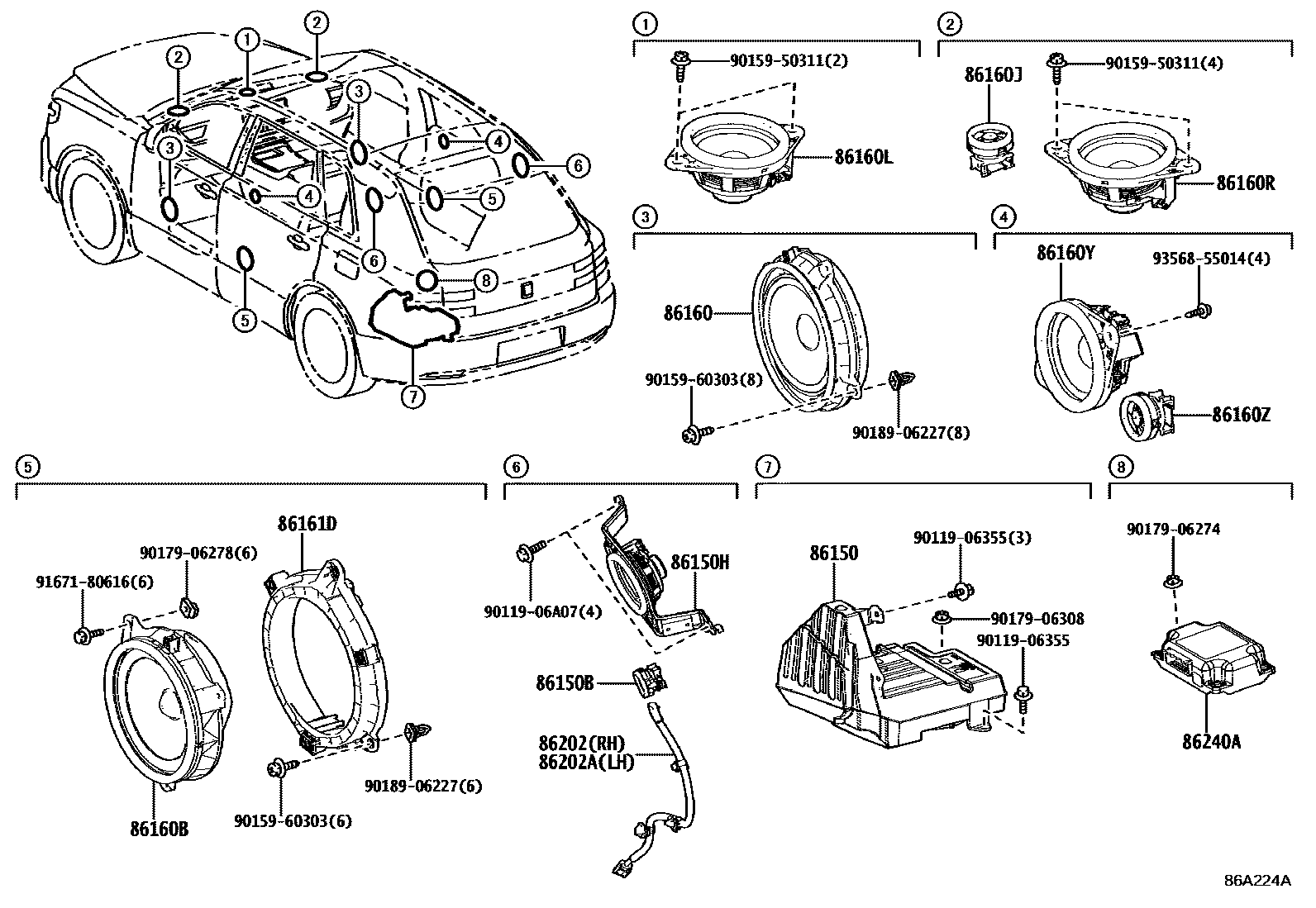

24 parts on this diagram · 1 diagram in section
