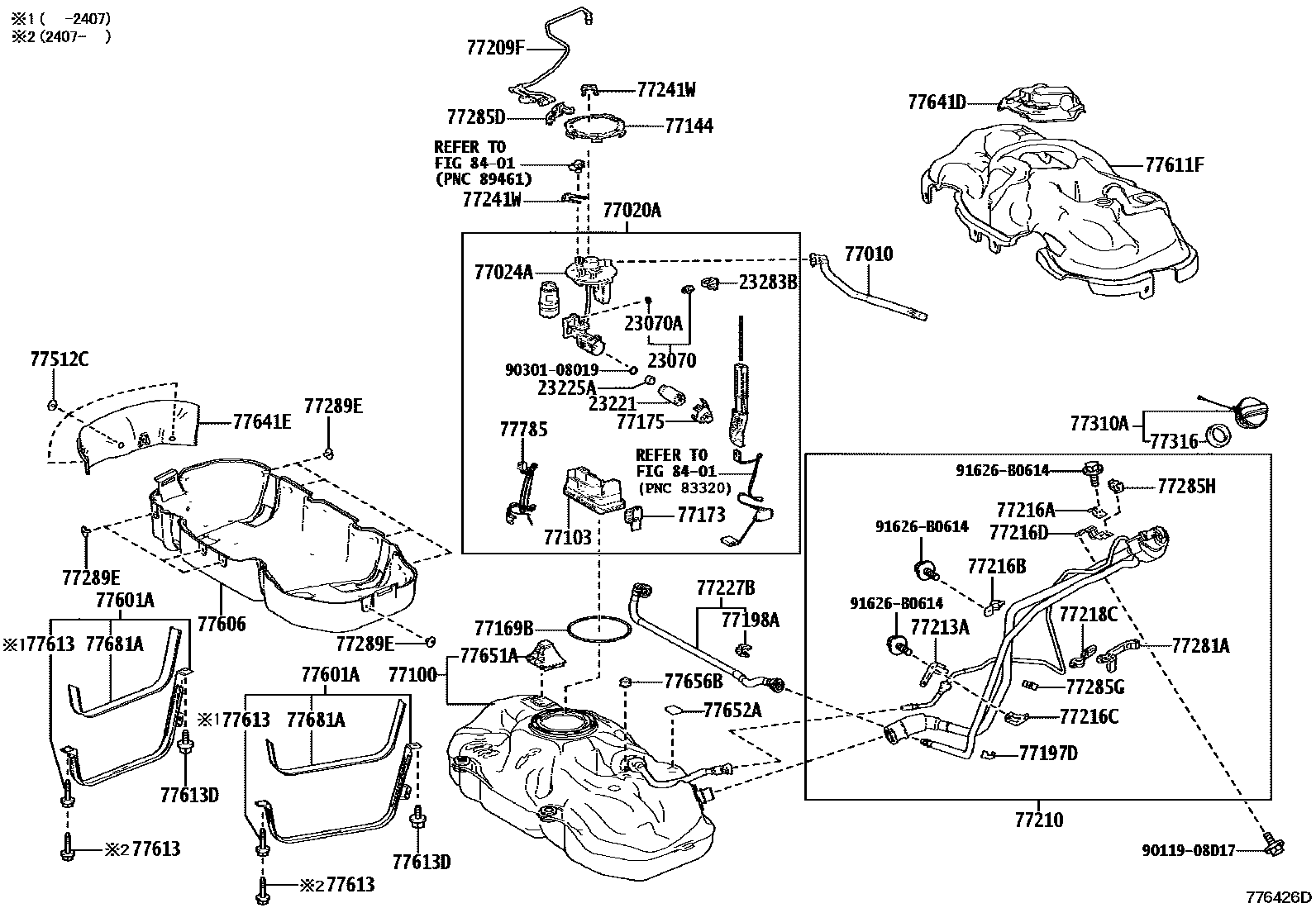

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23283BHOLDER, FUEL PRESSURE REGULATOR
77010TUBE ASSY, FUEL TANK VENT
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77103SUB-TANK SUB-ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169BGASKET, FUEL SUCTION TUBE SET, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77197DCLAMP, EVAPORATION VENT TUBE, NO.2
77198ACLAMP, EVAPORATION VENT TUBE, NO.3
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77213ASUPPORT, FUEL TANK FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77216CSUPPORT, FUEL TANK FILLER PIPE NO.3
77216DSUPPORT, FUEL TANK FILLER PIPE NO.4
77218CSUPPORT, FUEL TANK FILLER PIPE, NO.5
77227BTUBE, FUEL TANK BREATHER, NO.7
77241WCLIP, TUBE JOINT
77281ACLAMP, FUEL FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
77285GCLAMP, FUEL TUBE, NO.1
77285HCLAMP, FUEL TUBE, NO.1
77289ECLAMP, FUEL TANK, NO.1
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77512CBRACKET, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613BOLT, FUEL TANK BAND SET
77613DBOLT, FUEL TANK BAND SET, NO.2
77641DPROTECTOR, FUEL TANK, NO.2
77641EPROTECTOR, FUEL TANK, NO.3
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
77681ASEAT, FUEL TANK BAND
77785HARNESS, FUEL PUMP
8401
9011908D17
main90119-08D17
9030108019
main90301-08019
91626B0614
main91626-B0614
50 parts on this diagram · 3 diagrams in section
