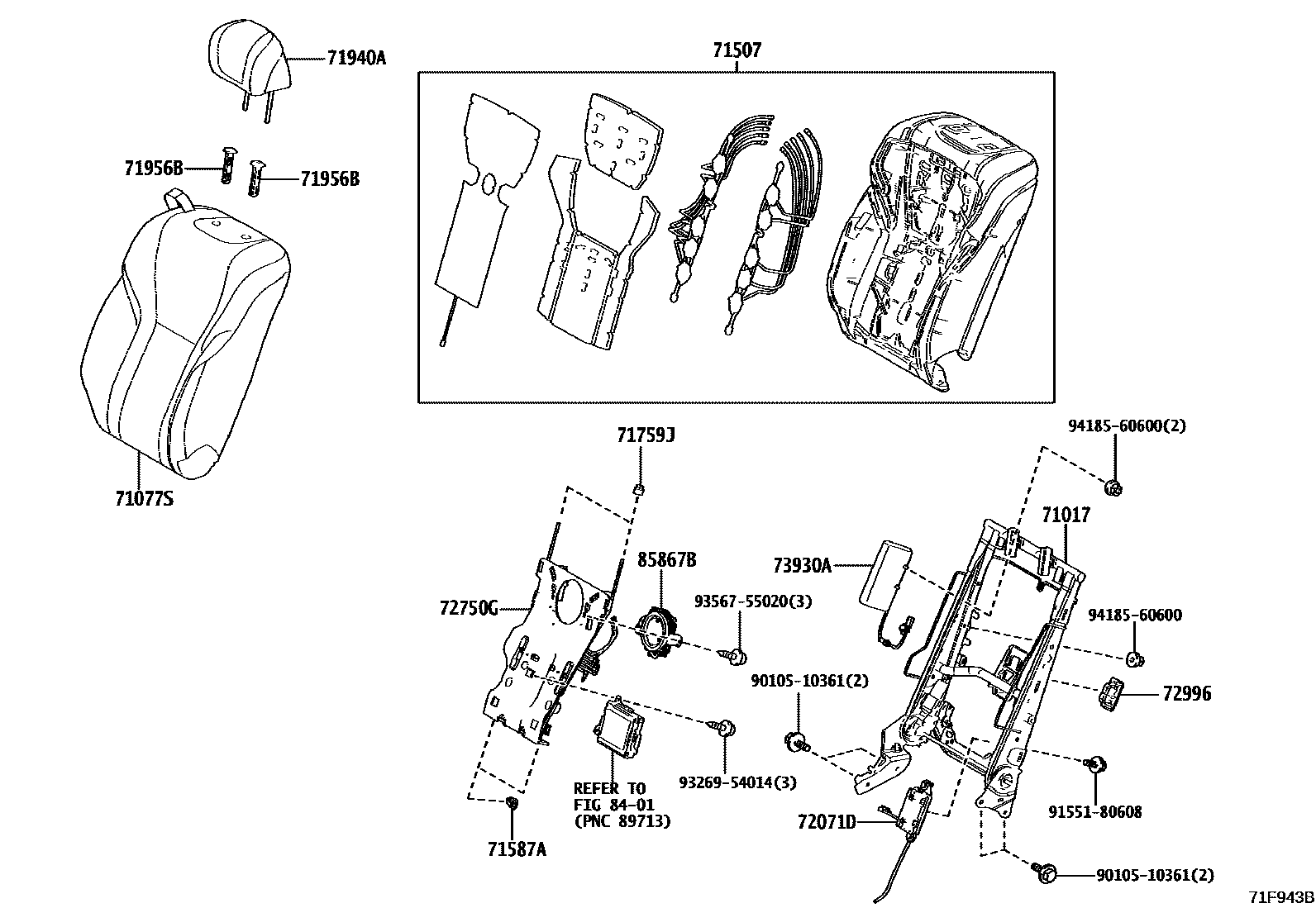

REAR SEAT & SEAT TRACK

0001 1������(�������) 0002 1������(��������) 0003 1�������(�������) 0004 1�������(��������)

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-40070iGRG75202310

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-40360-A1iGRG75202310

FROMAGE,TRIM0#

main71077-40360-C1iGRG75202310

BLACK,TRIM2#

main71077-40360-E1iGRG75202310

MD.BROWN,TRIM4#

71507PAD SUB-ASSY, REAR SEATBACK, RH

main71507-40070iGRG75202310

71587APROTECTOR, REAR SEATBACK EDGE

main71587-47010iGRG75202310

71759JHOOK, REAR SEATBACK

main71759-50040iGRG75202310

71940AHEADREST ASSY, REAR SEAT

main71940-40260-A1iGRG75202310

FROMAGE,TRIM0#

main71940-40260-C1iGRG75202310

BLACK,TRIM2#

main71940-40260-E3iGRG75202310

MD.BROWN,TRIM4#

71956BSUPPORT, REAR SEAT HEADREST

main71930-47050-A0iGRG75202310

main71930-47050-C5iGRG75202310

main71931-47030-A0iGRG75202310

main71931-47030-C4iGRG75202310

72071DPUMP SUB-ASSY, LUMBER SUPPORT, RH

main72071-60010iGRG75202310

72750GADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-60130iGRG75202310

72996COVER, REAR SEATBACK, RH

main72996-48150-C1iGRG75202310

BLACK,TRIM0#,2#,4#

73930AAIRBAG ASSY, REAR SEAT, RH

main73930-60050iGRG75202310

8401

85867BBLOWER, REAR SEATBACK CLIMATE CONTROL, RH

main85867-60050iGRG75202310

9010510361

main90105-10361

9155180608

main91551-80608

9326954014

main93269-54014

9356755020

main93567-55020

9418560600

main94185-60600

18 parts on this diagram · 4 diagrams in section
