BACK DOOR LOCK & HANDLE

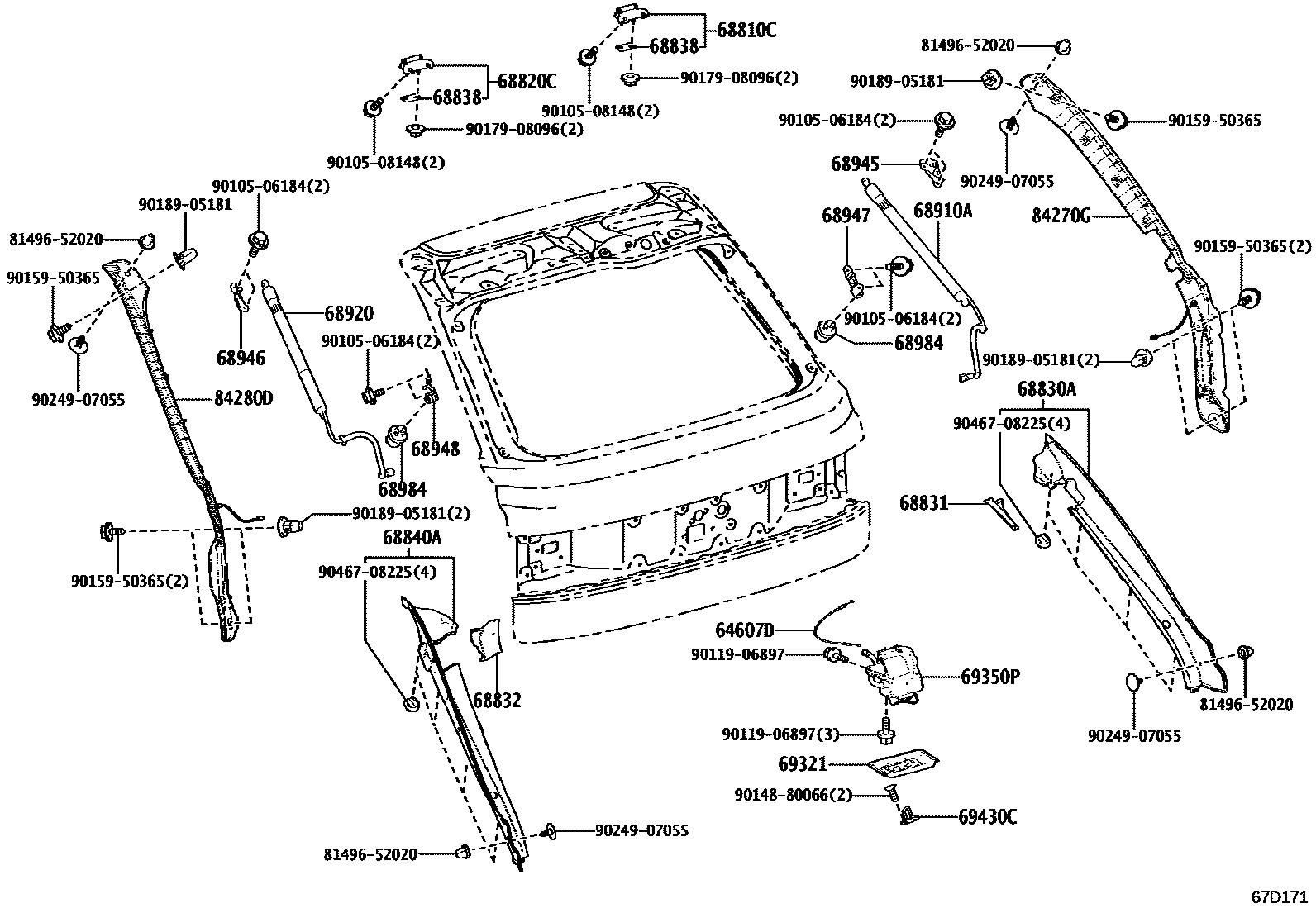

Parts diagram
64607DCABLE SUB-ASSY, BACK DOOR LOCK CONTROL
main64607-40020i202310
68810CHINGE ASSY, BACK DOOR, RH
main68810-48171i202310
main68810-48181i202310
main68810-48191i202310
68820CHINGE ASSY, BACK DOOR, LH
main68810-48171i202310
main68810-48181i202310
main68810-48191i202310
68830ACOVER, BACK DOOR HINGE, RH
main64571-40030i202310
68831COVER, BACK DOOR HINGE UPPER, RH
main64425-40010i202310
68832COVER, BACK DOOR HINGE UPPER, LH
main64426-40010i202310
68838PAD, BACK DOOR HINGE, NO.1
main68838-48140×2i202310
main68838-48150×2i202310
main68838-48160×2i202310
68840ACOVER, BACK DOOR HINGE, LH
main64572-40030i202310
68910AUNIT ASSY SET, POWER BACK DOOR, RH
main68910-40010i202310
68920UNIT ASSY SET, POWER BACK DOOR, LH
main68920-40010i202310
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
main68945-40010i202310
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
main68946-40010i202310
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
main68947-78030i202310
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
main68948-78030i202310
68984STOPPER, BACK DOOR STAY
main68984-78011×2i202310
69321COVER, BACK DOOR LOCK
main69321-40010i202310
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69350-40010i202310
69430CSTRIKER ASSY, BACK DOOR LOCK
main69430-48030i202310
84270GSENSOR ASSY, POWER BACK DOOR, RH
main84270-40010i202310
84280DSENSOR ASSY, POWER BACK DOOR, LH
main84280-40010i202310
8149652020GUIDE, REAR COMBINATION LAMP
9010506184
9010508148
9011906897
9014880066
9015950365
9017908096
9018905181
9024907055
9046708225

30 parts on this diagram · 1 diagram in section
