MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
55349BSHEET, ACTIVATED CARBON
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#,4#
58511KMAT, FLOOR, NO.1
58512JMAT, FLOOR, NO.2
58513FMAT, FLOOR, NO.3
58514HMAT, FLOOR, NO.4
58515GMAT, FLOOR, NO.5
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58556AMAT, FRONT, LH
58562MAT, FLOOR, FRONT LH
58565BCLIP
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM0#,2#,4#
58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
58579BPAD, REAR FLOOR
BLACK,TRIM0#,2#,4#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
8715
9046710167
main90467-10167
9046710217
main90467-10217
9354016014
main93540-16014

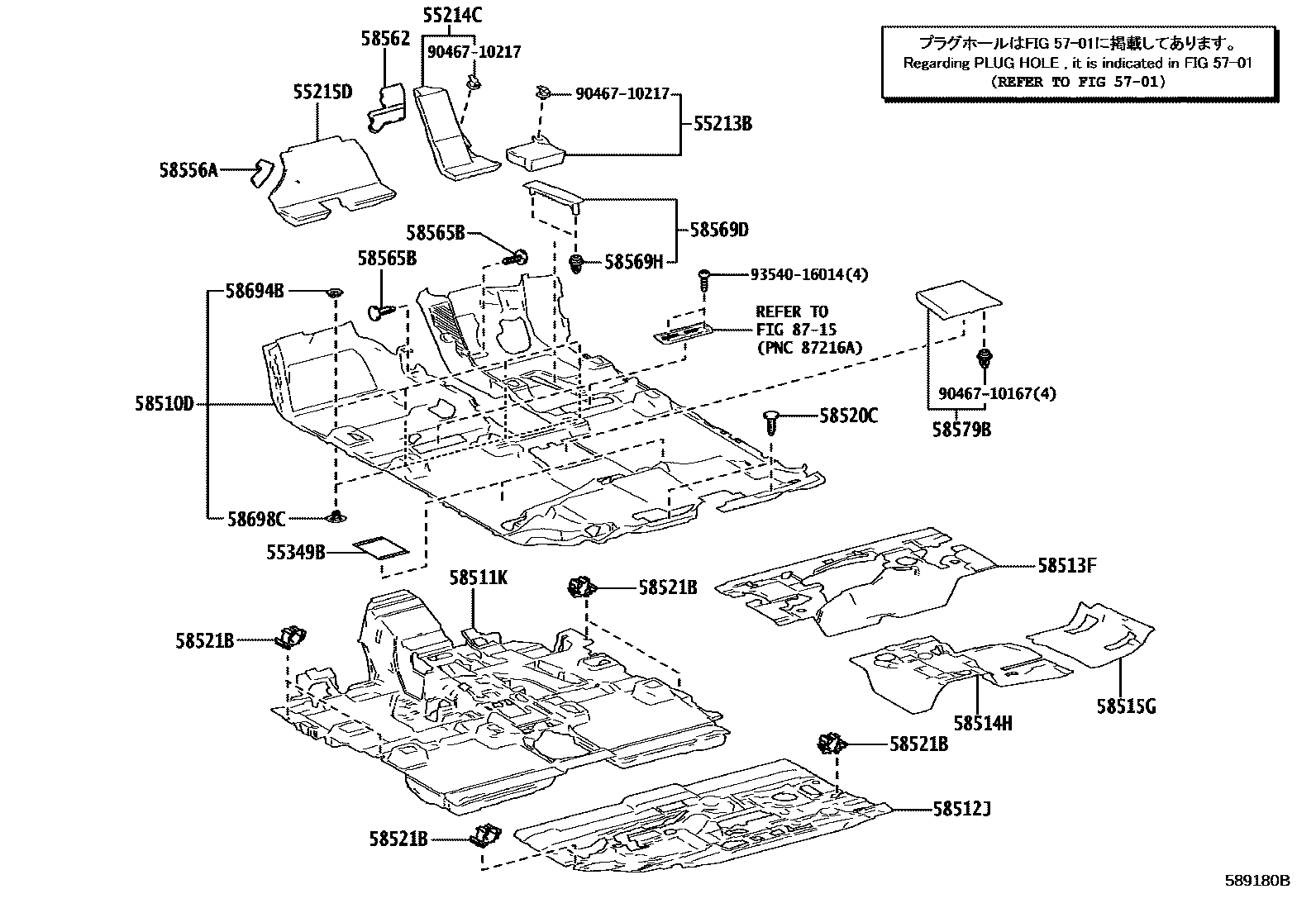

24 parts on this diagram · 2 diagrams in section
