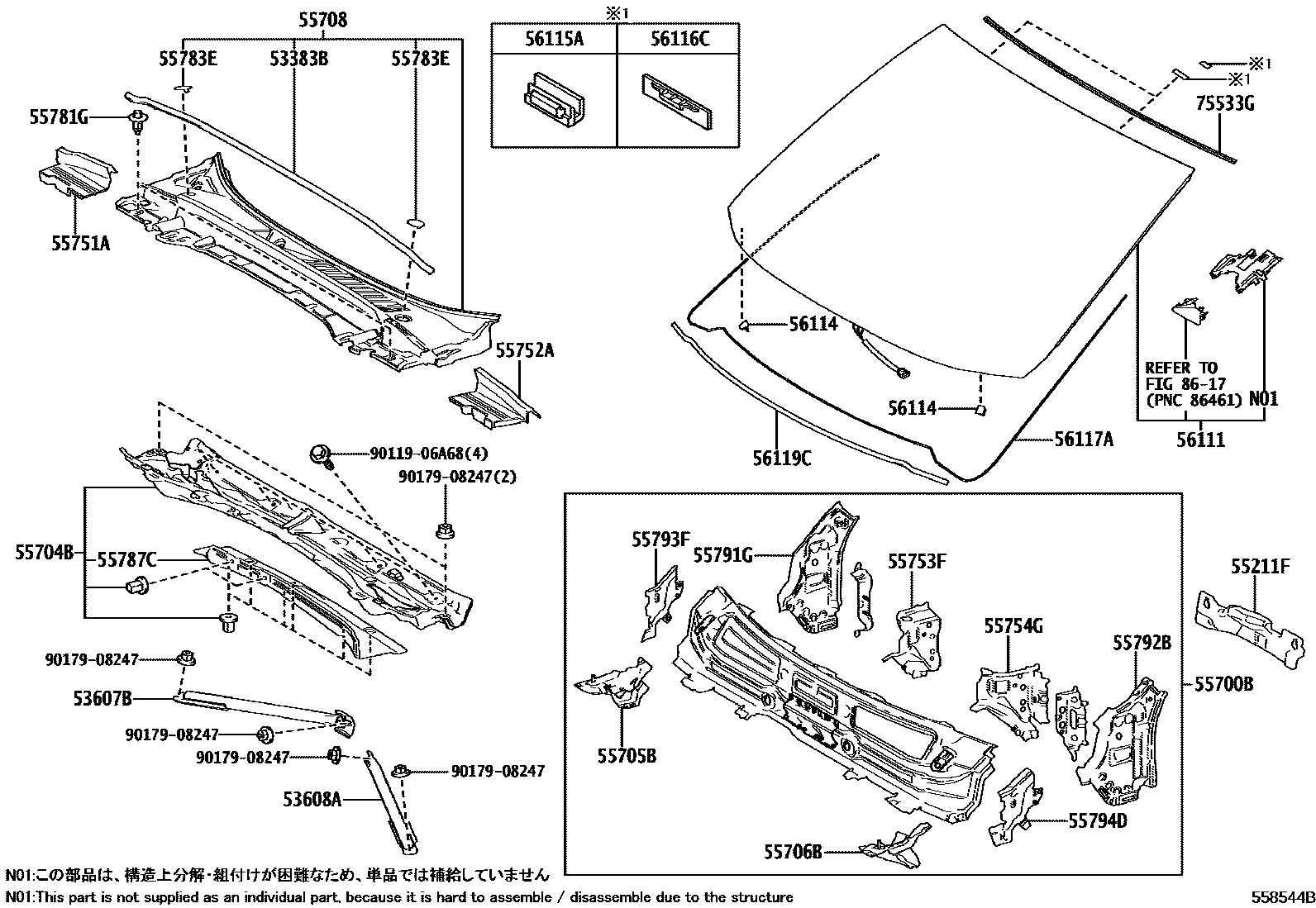

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-40040iGRG75202310

53607BBRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH

main53607-0E010iGRG75202310

53608ABRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH

main53608-0E010iGRG75202310

55211FCOVER, DASH PANEL INSULATOR

main55211-40060iGRG75202310

55700BCOWL ASSY

main55700-0W030iGRG75202310

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-0W010iGRG75202310

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0E120iGRG75202310

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0E120iGRG75202310

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-40030iGRG75202310

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-40020iGRG75202310

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55752-40030iGRG75202310

55753FBRACKET, INSTRUMENT PANEL TO COWL, NO.1

main55753-0E100iGRG75202310

55754GBRACKET, INSTRUMENT PANEL TO COWL, NO.2

main55754-0E060iGRG75202310

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08180iGRG75202310

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-40040iGRG75202310

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-0E160iGRG75202310

55791GCOVER, COWL REINFORCEMENT, UPPER RH

main55791-0E050iGRG75202310

55792BCOVER, COWL REINFORCEMENT, UPPER LH

main55792-0E050iGRG75202310

55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-0E060iGRG75202310

55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-0E100iGRG75202310

56111GLASS, WINDSHIELD

main56101-40902iGRG75202310

56114RETAINER, WINDSHIELD GLASS

main56114-48010iGRG75202310

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iGRG75202310

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGRG75202310

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iGRG75202310

56119CSEAL, WINDSHIELD GLASS

main56119-40060iGRG75202310

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-40020iGRG75202310

8617

9011906A68

main90119-06A68

9017908247

main90179-08247

30 parts on this diagram · 1 diagram in section
