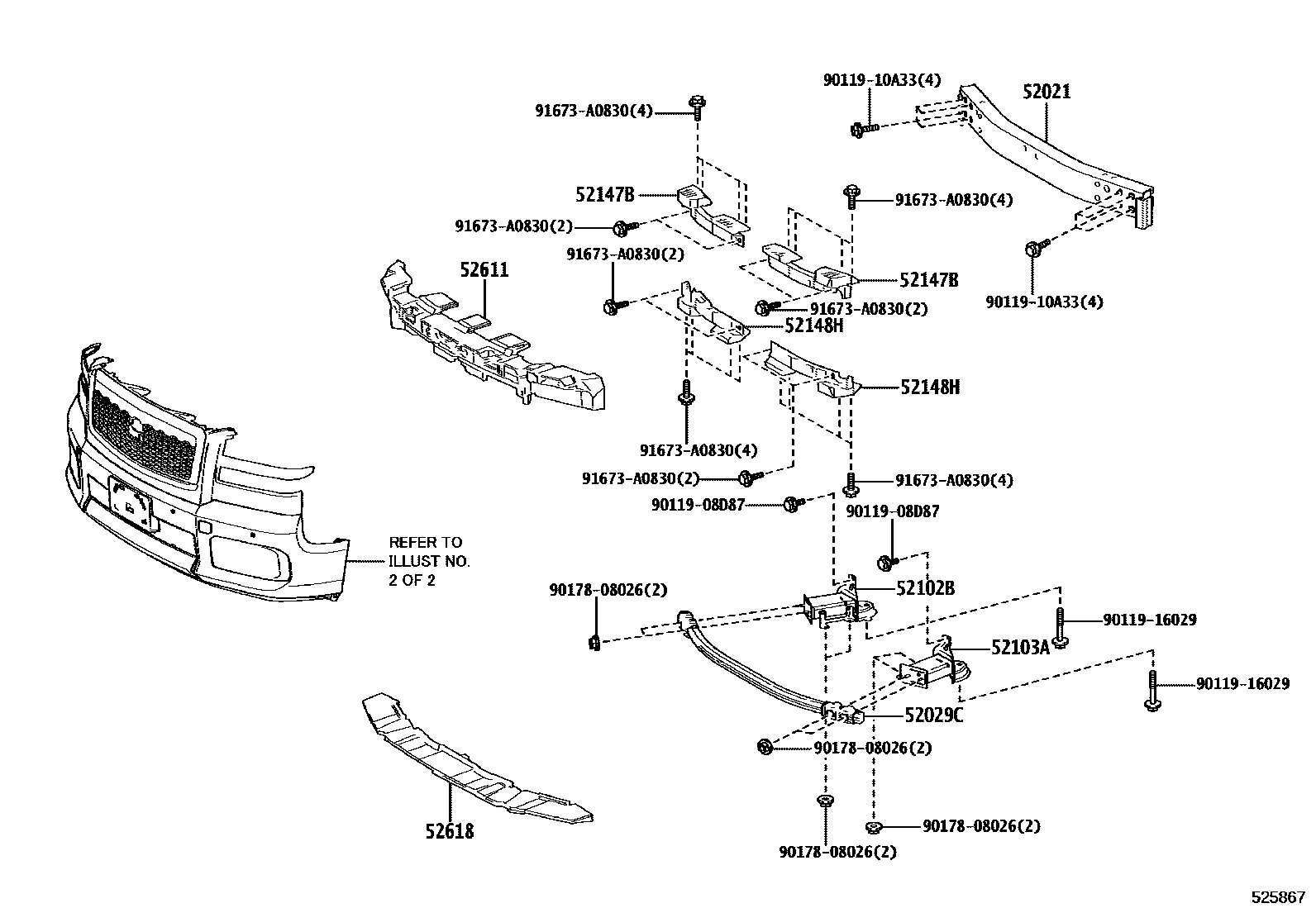

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-40030iGRG75202310

52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-0E010iGRG75202310

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-0E090iGRG75202310

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-0E040iGRG75202310

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-40020iGRG75202310

52148HBRACKET, FRONT BUMPER MOUNTING, NO.2

main52148-40040iGRG75202310

52611ABSORBER, FRONT BUMPER ENERGY

main52611-40060iGRG75202310

52618ABSORBER, FRONT BUMPER, LOWER

main52618-40010iGRG75202310

9011908D87

main90119-08D87

9011910A33

main90119-10A33

9011916029

main90119-16029

9017808026

main90178-08026

91673A0830

main91673-A0830

13 parts on this diagram · 2 diagrams in section
