EXHAUST PIPE
17401PIPE SUB-ASSY, EXHAUST, FRONT
17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17451CGASKET, EXHAUST PIPE, NO.3
17451DGASKET, EXHAUST PIPE, NO.4
17564SUPPORT,EXHAUST PIPE, NO.4
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
9010508488
main90105-08488
9010510585
main90105-10585
9010910182
main90109-10182
9017710005
main90177-10005
9050135037
main90501-35037

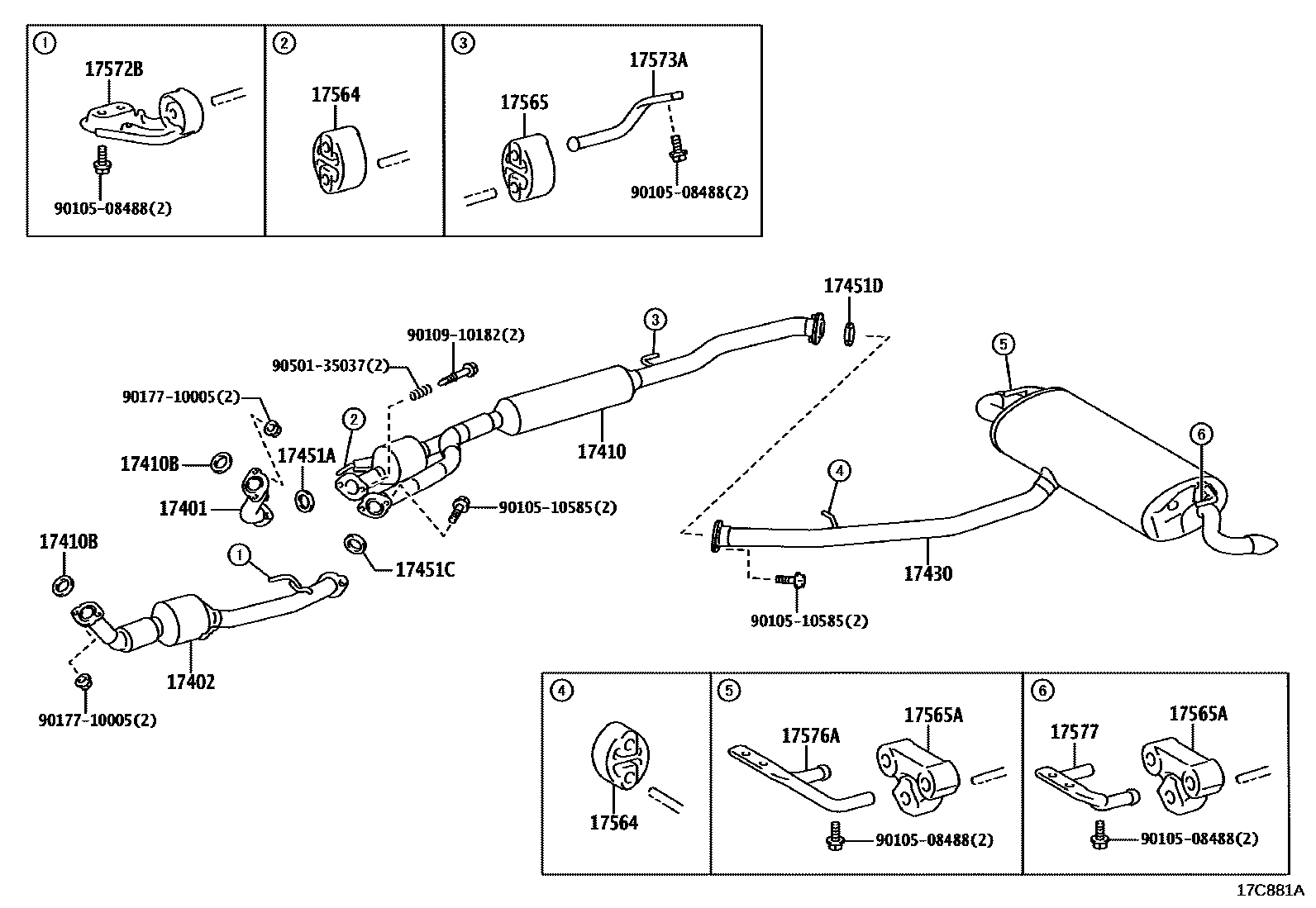

20 parts on this diagram · 1 diagram in section
