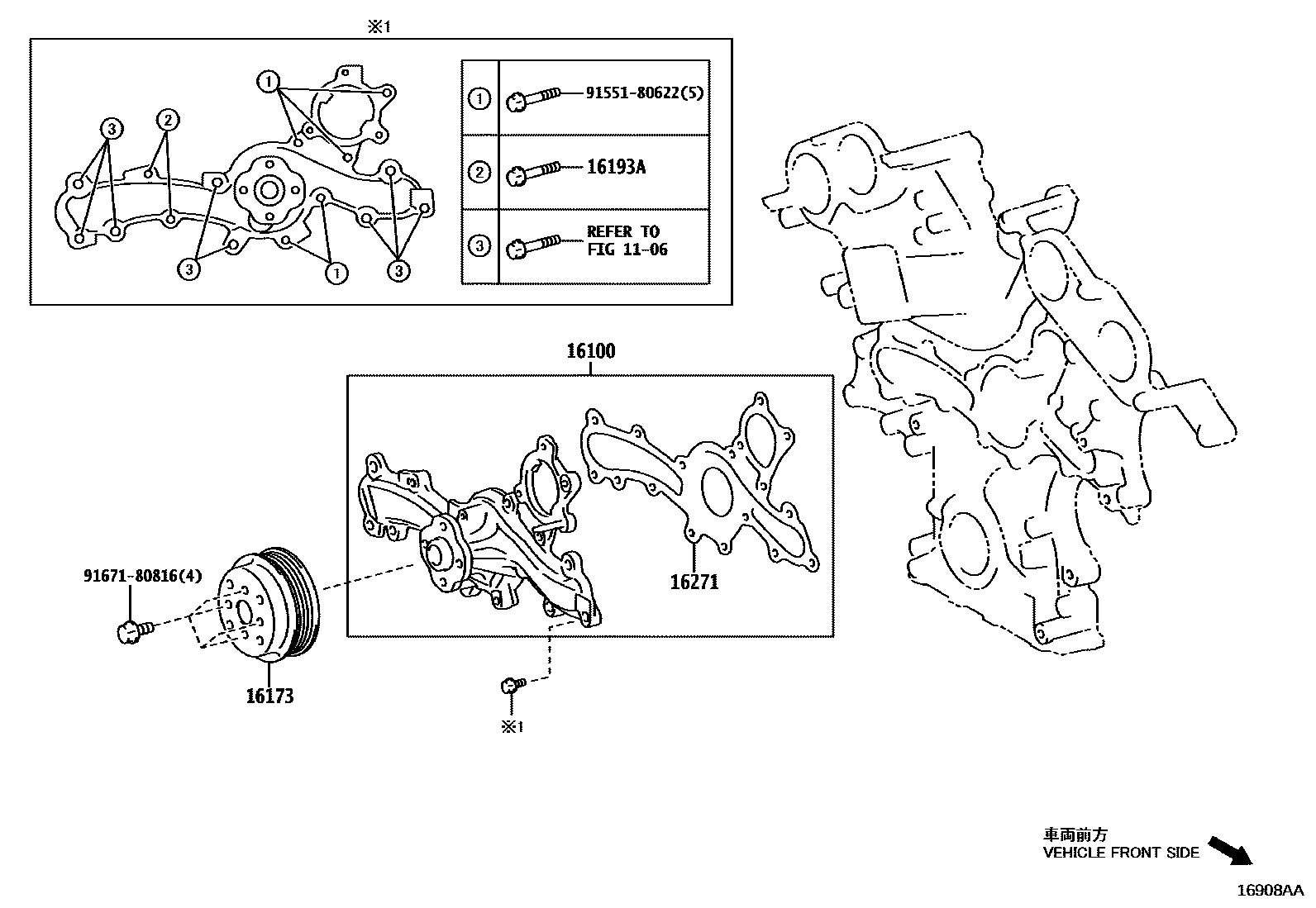

WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-39616i2GRFXS..GRG75202310

16173PULLEY, WATER PUMP

main16173-31042i2GRFXS..GRG75202310

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i2GRFXS..GRG75202310

16271GASKET, WATER PUMP

main16271-31050i2GRFXS..GRG75202310

9155180622

main91551-80622

9167180816

main91671-80816

7 parts on this diagram · 1 diagram in section
