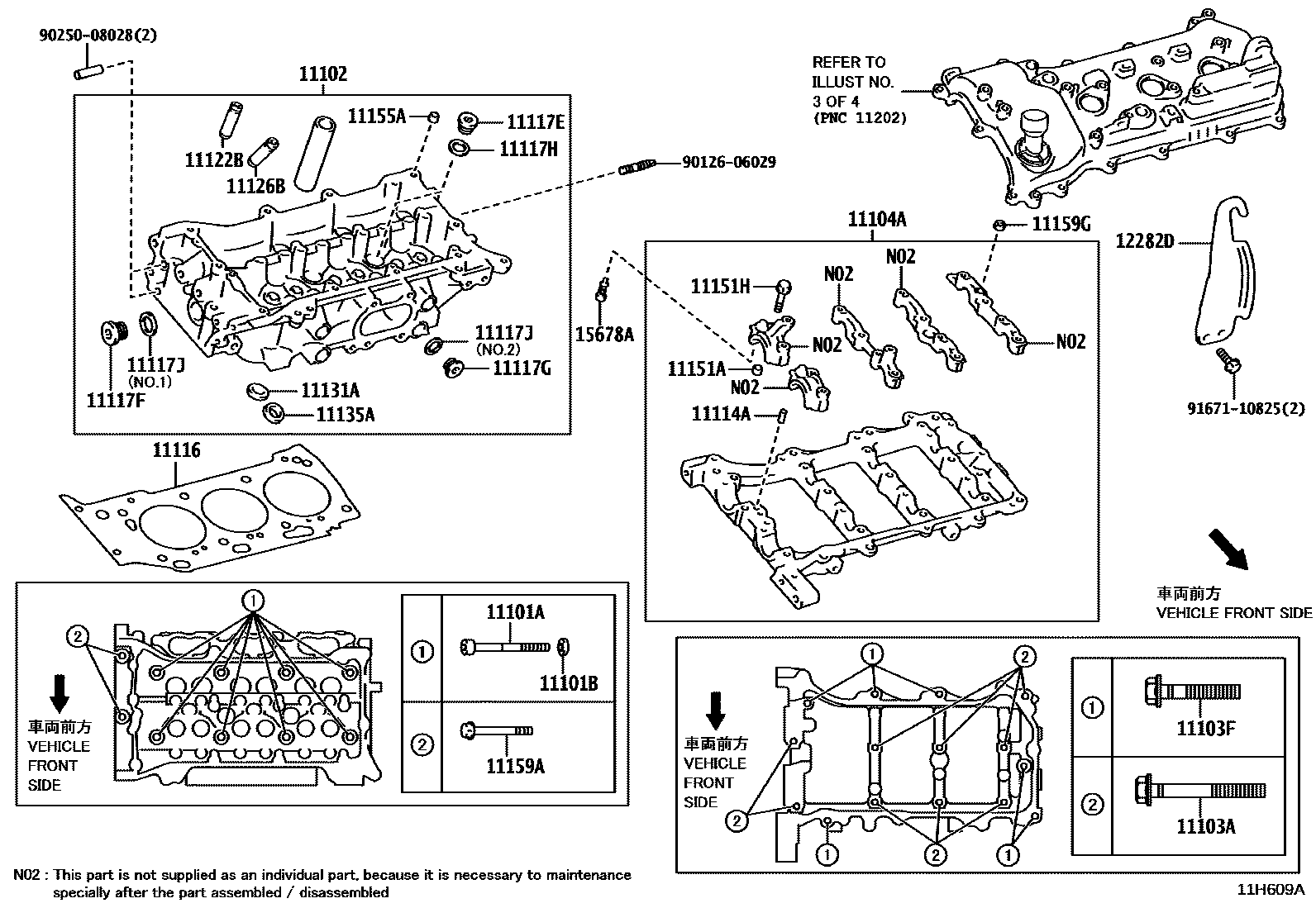

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11102HEAD, CYLINDER, LH
11103ABOLT(FOR CAMSHAFT HOUSING SET)
11103FBOLT(FOR CAMSHAFT HOUSING SET)
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
11114APIN, STRAIGHT
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
11122BBUSH, INTAKE VALVE GUIDE, NO.2
11126BUSH, EXHAUST VALVE GUIDE
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
11131SEAT, INTAKE VALVE
11131ASEAT, INTAKE VALVE, NO.2
11135SEAT, EXHAUST VALVE
11135ASEAT, EXHAUST VALVE, NO.2
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
12282DHANGER, ENGINE, NO.2
15678AFILTER, OIL CONTROL VALVE
9012606029
9025008028
9167110825
32 parts on this diagram · 4 diagrams in section
