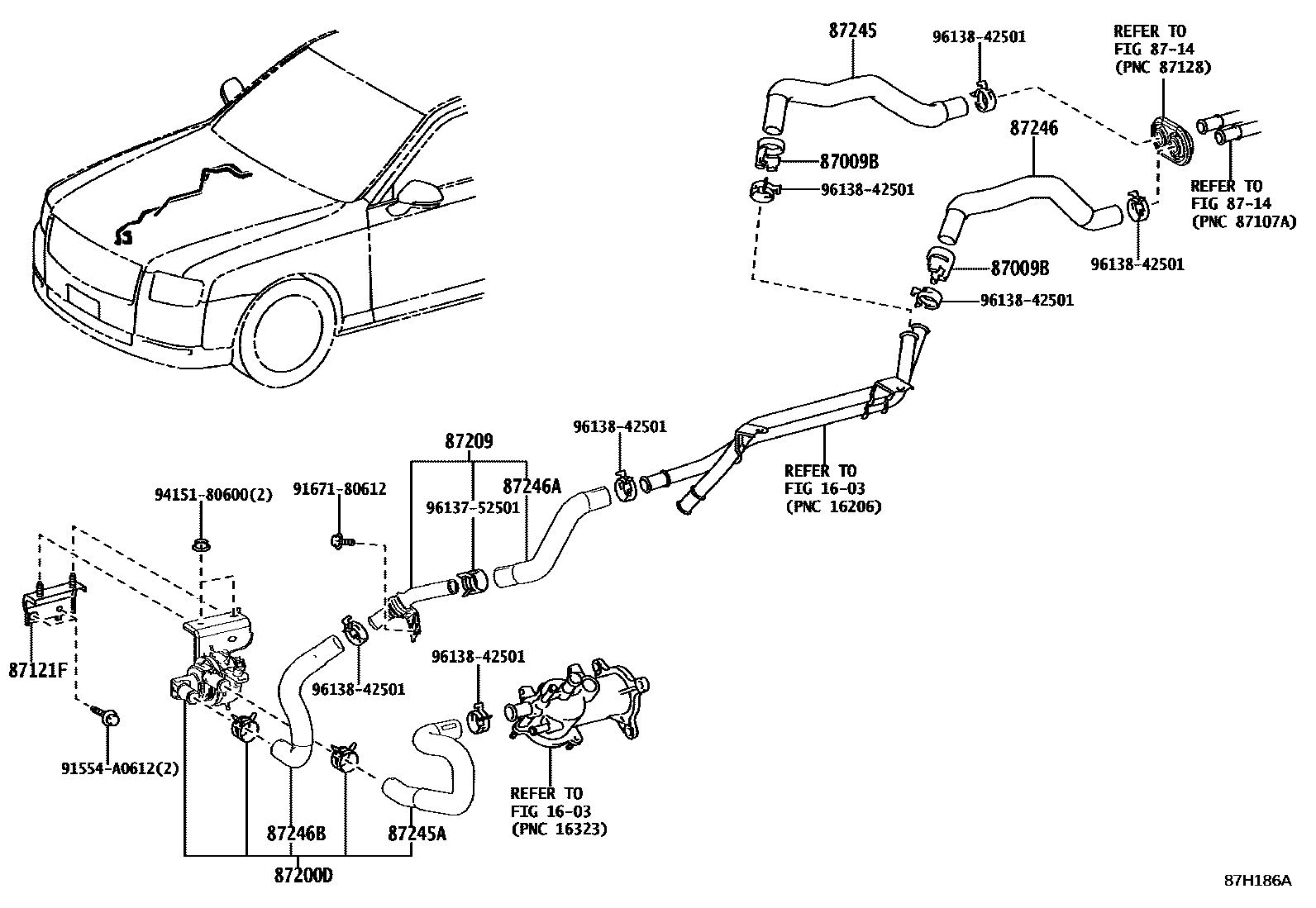

HEATING & AIR CONDITIONING - WATER PIPING

1603

87009BHOSE SET, WATER

main87009-11010×2iUWG60201806

87121FBRACKET, HEATER

main87121-50010iUWG60201806

8714

87200DACCESSORY ASSY, HEATER

main87200-40050iUWG60201806

87209HOSE SUB-ASSY, WATER

main87209-50070iUWG60201806

87245HOSE, HEATER WATER, INLET

main87245-50390iUWG60201806

87245AHOSE, HEATER WATER, INLET A

main87245-50420iUWG60201806

87246HOSE, HEATER WATER, OUTLET

main87245-50400iUWG60201806

87246AHOSE, HEATER WATER, OUTLET A

main87245-50430iUWG60201806

87246BHOSE, HEATER WATER, OUTLET B

main87245-50410iUWG60201806

91554A0612

main91554-A0612

9167180612

main91671-80612

9415180600

main94151-80600

9613752501

main96137-52501

9613842501

main96138-42501

16 parts on this diagram · 1 diagram in section
