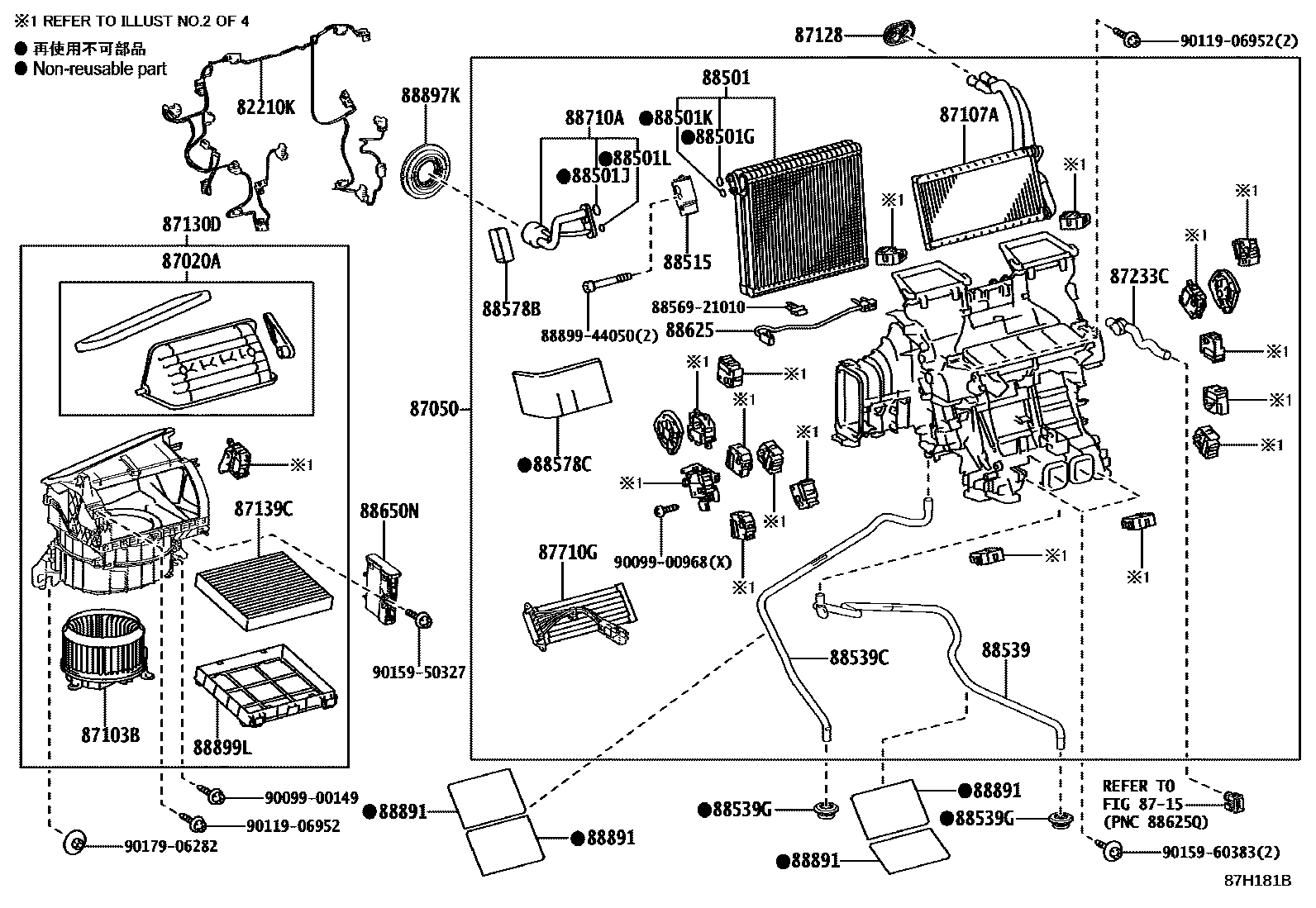

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87020ADAMPER ASSY, HEATER AIR
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87128GROMMET, HEATER
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
8715
87233CHOSE, AIR
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
88501JO-RING, COOLER EVAPORATOR NO.2(SUCTION)
88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)
88501LO-RING, COOLER EVAPORATOR NO.2(LIQUID)
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88539CHOSE, COOLER UNIT DRAIN, NO.2
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
88710ATUBE ASSY, AIR CONDITIONER
88891PACKING (FOR COOLER)
88897KGROMMET, (FOR COOLER PIPE)
88899LPARTS, COOLING UNIT
8856921010CLAMP (FOR COOLER RELAY)
main88569-21010
8889944050COVER, EVAPORATOR
main88899-44050
9009900149
main90099-00149
9009900968
main90099-00968
9011906952
main90119-06952
9015950327
main90159-50327
9015960383
main90159-60383
9017906282
main90179-06282
36 parts on this diagram · 4 diagrams in section
