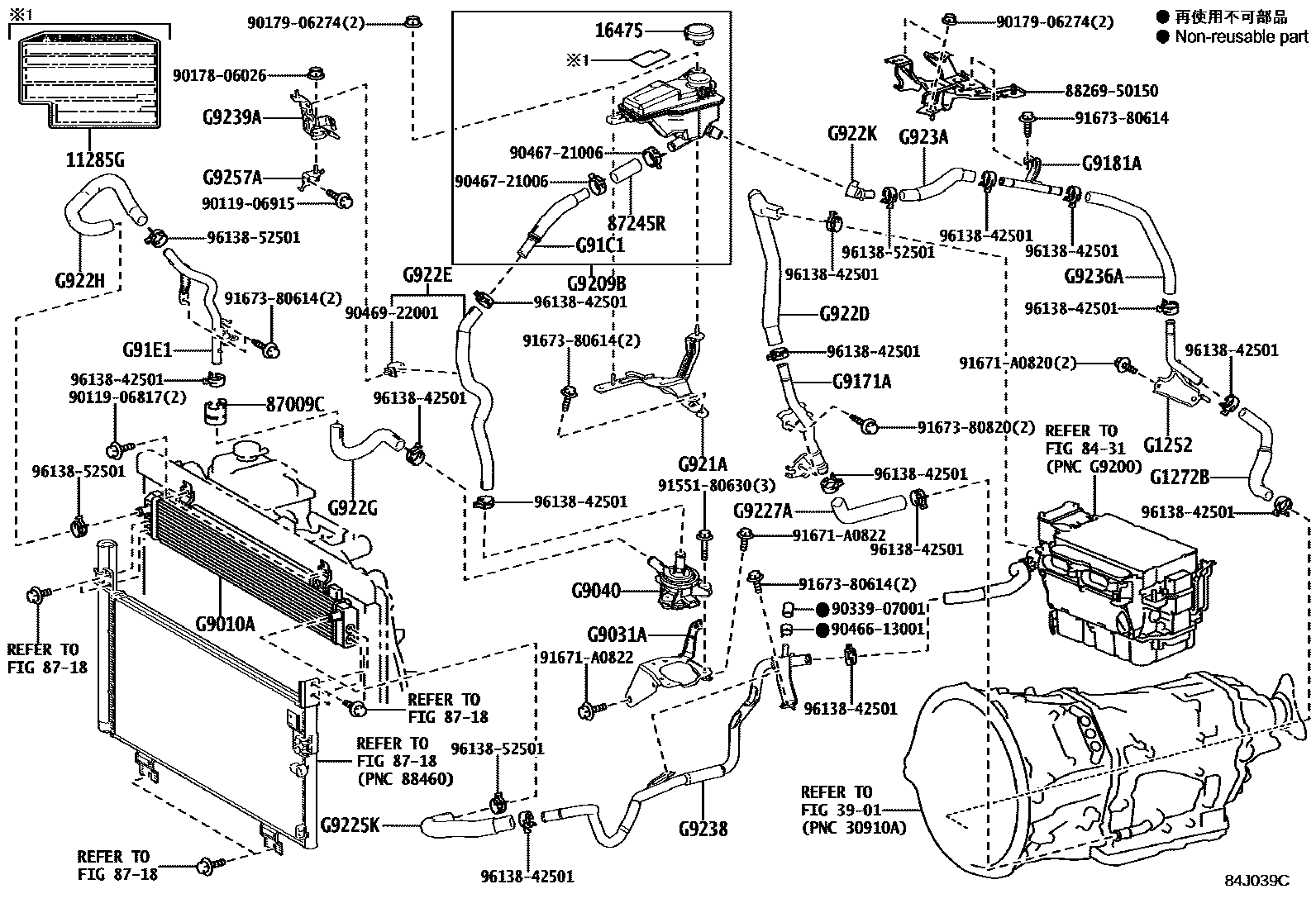

INVERTER COOLING
11285GLABEL, COOLANT SYSTEM NOTICE
16475CAP, RESERVE TANK
3901
8431
87009CHOSE SET, WATER
8718
87245RHOSE, WATER
G1252PIPE, MOTOR COOLING, NO.2
G1272BHOSE, MOTOR COOLING, NO.2
G9010ARADIATOR ASSY
G9031ABRACKET SUB-ASSY, HV WATER PUMP
G9040INVERTER WATER PUMP ASSY(W/MOTOR)
G9171APIPE, INVERTER COOLING, NO.1
G9181APIPE, INVERTER COOLING, NO.2
G91C1PIPE, HV WATER PUMP INLET
G91E1PIPE, HV WATER PUMP OUTLET, NO.2
G9209BTANK SUB-ASSY, INVERTER RESERVE
G921ABRACKET, INVERTER RESERVE TANK, NO.1
G9225KHOSE, INVERTER COOLING, NO.1
G9227AHOSE, INVERTER COOLING, NO.3
G922DHOSE, INVERTER COOLING OUTLET, NO.2
G922EHOSE, HYBRID WATER PUMP INLET
G922GHOSE, HYBRID WATER PUMP OUTLET, NO.2
G922HHOSE, HYBRID RADIATOR INLET
G922KCONNECTOR, HYBRID WATER HOSE
G9236AHOSE, INVERTER COOLING, NO.6
G9238PIPE, INVERTER COOLING
G9239ABRACKET, INVERTER COOLING PIPE
G923AHOSE, INVERTER COOLING, NO.7
G9257ABRACKET, INVERTER, NO.5
8826950150
main88269-50150
9011906817
main90119-06817
9011906915
main90119-06915
9017806026
main90178-06026
9017906274
main90179-06274
9033907001
main90339-07001
9046613001
main90466-13001
9046721006
main90467-21006
9046922001
main90469-22001
9155180630
main91551-80630
91671A0820
main91671-A0820
91671A0822
main91671-A0822
9167380614
main91673-80614
9167380820
main91673-80820
9613842501
main96138-42501
9613852501
main96138-52501
46 parts on this diagram · 1 diagram in section
