WIRING & CLAMP

0001 1�������� 0002 1����� 0003 1������������ 0004 1��� 0005 1��� & ��� 0006 1��������� 0007 1��� 0008 1����� & ������ 0009 1���� 1/2 0010 1���� 2/2

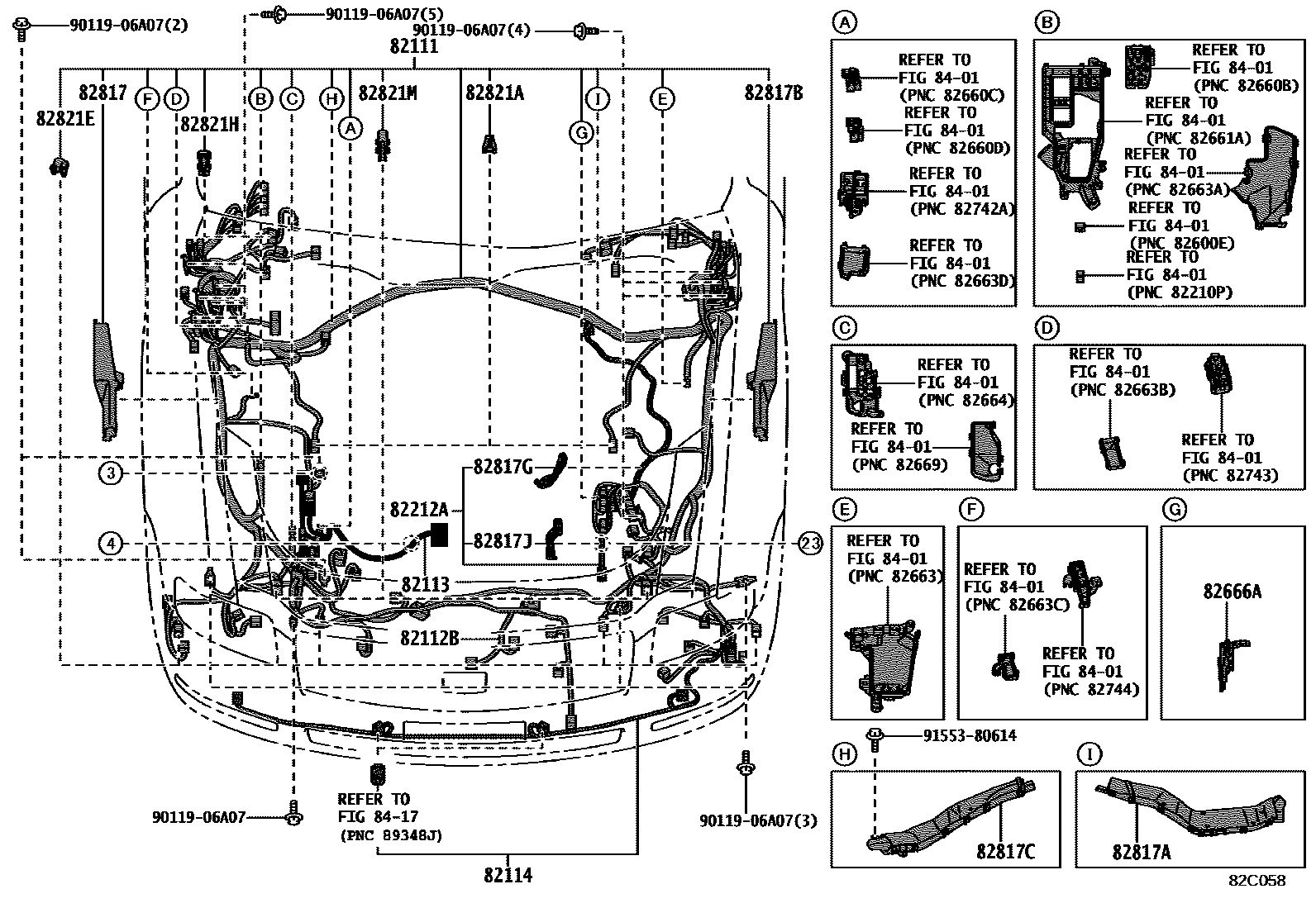

82111WIRE, ENGINE ROOM MAIN

main82111-40270iUWG60201806-202105

main82111-40271iUWG60202105

82112BWIRE, ENGINE ROOM, NO.2

main82112-40010iUWG60201806

82113WIRE, ENGINE ROOM, NO.3

main82113-40010iUWG60201806

82114WIRE, ENGINE ROOM, NO.4

main82114-40010iUWG60201806

82212AHARNESS, AIR CONDITIONER

main82212-50081iUWG60201806

82666AHOLDER, CONNECTOR NO.2

main82666-50570iUWG60201806

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-50B30iUWG60201806

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-50C20iUWG60201806

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-50D40iUWG60201806

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-50E70iUWG60201806

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-50F50iUWG60201806

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-50J90iUWG60201806

82821ACOVER, CONNECTOR

main82821-30600×2iUWG60201806

82821ECOVER, CONNECTOR

main82821-30650×4iUWG60201806

82821HCOVER, CONNECTOR

main82821-50500iUWG60201806

82821MCOVER, CONNECTOR

main82821-50780×2iUWG60201806

8401

8417

9011906A07

main90119-06A07

9155380614

main91553-80614

20 parts on this diagram · 10 diagrams in section
