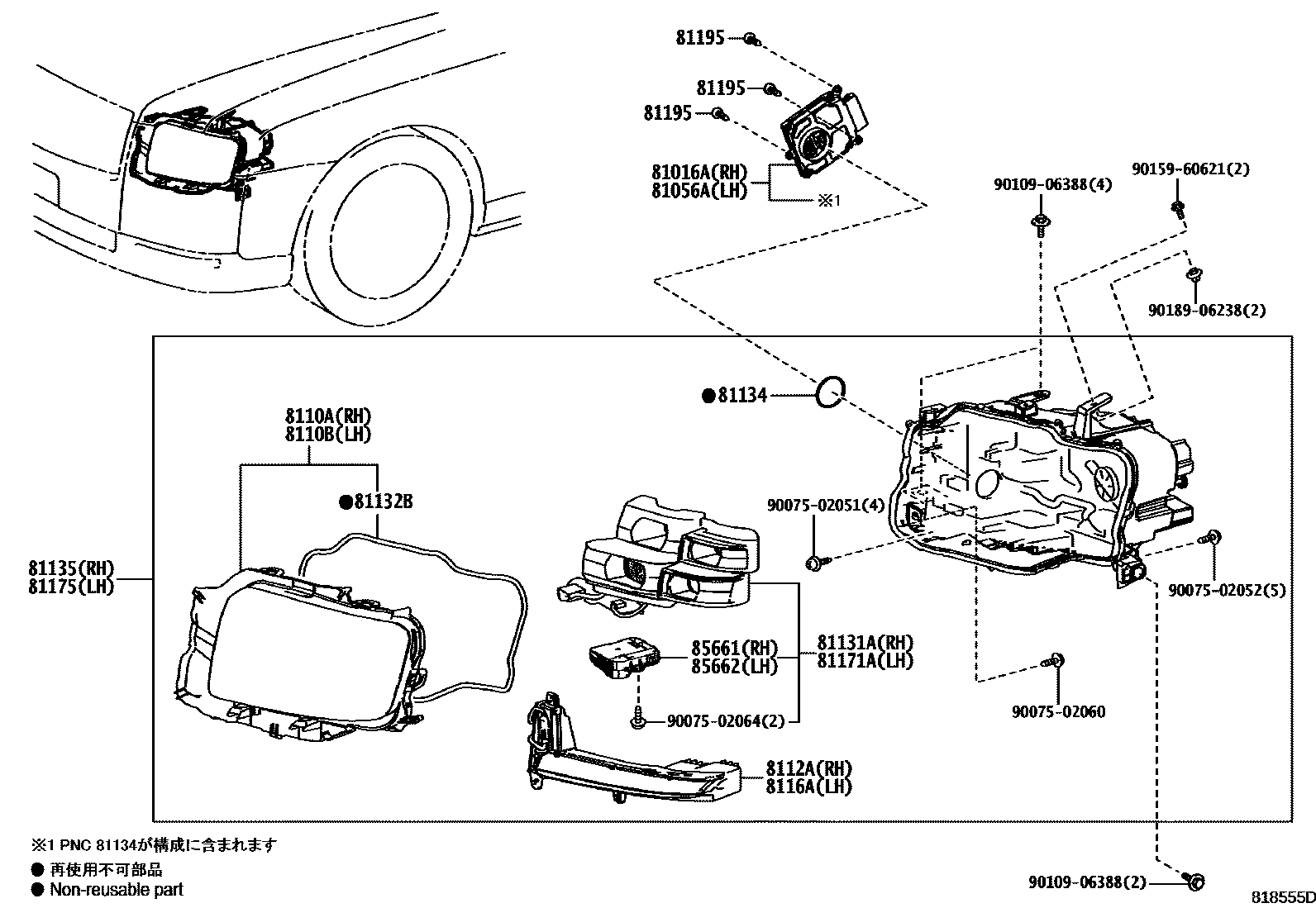

HEADLAMP
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
81131AUNIT, HEADLAMP, RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
81171AUNIT, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81195SCREW, HEADLAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
9007502051
main90075-02051
9007502052
main90075-02052
9007502060
main90075-02060
9007502064
main90075-02064
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
22 parts on this diagram · 1 diagram in section
