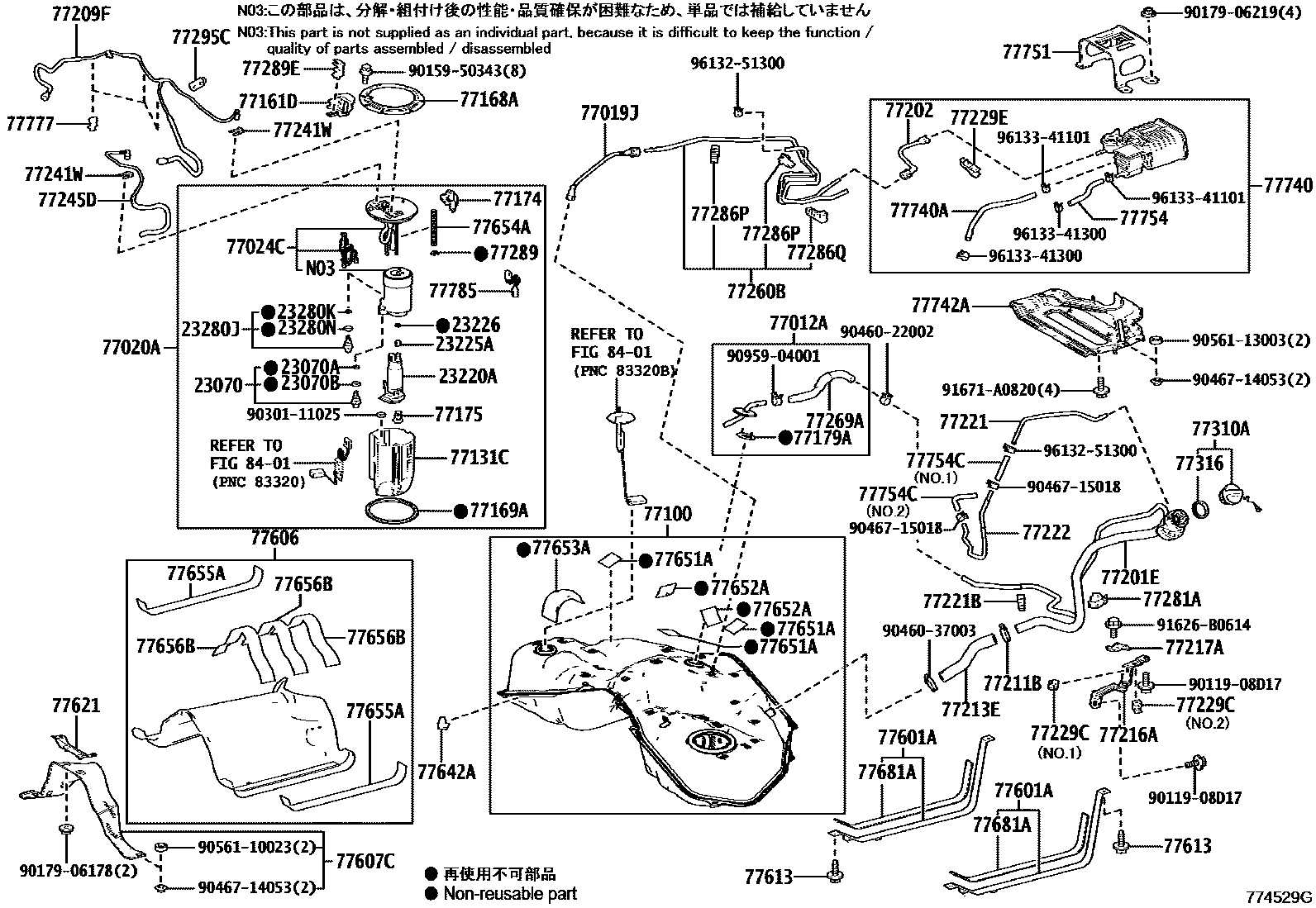

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23070BRING, O, NO.2(FOR FUEL MAIN VALVE)
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77161DPLATE, FUEL TANK PROTECTOR
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77179AGASKET, FUEL TANK BREATHER TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77211BCLAMP (FOR FUEL FILLER PIPE)
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77221TUBE, FUEL TANK BREATHER, NO.1
77221BCLAMP, BREATHR TUBE
77222TUBE, FUEL TANK BREATHER, NO.2
77229ECLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77245DTUBE, FUEL TANK RETURN VENT
77281ACLAMP, FUEL FILLER PIPE
77286PCLAMP, FUEL TUBE, NO.8
77289HOLDER, FUEL TANK PIPE SETTING
77289ECLAMP, FUEL TANK, NO.1
77295CGROMMET, FUEL TUBE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2
77613BOLT, FUEL TANK BAND SET
77621BRACKET, FUEL TANK PROTECTOR
77642APROTECTOR, FUEL TANK, NO.2
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77655ACUSHION, FUEL TANK, NO.5
77681ASEAT, FUEL TANK BAND
77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77742APLATE, CANISTER SET
77751BRACKET, CHARCOAL CANISTER BASE
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
77777BRACKET, FUEL TUBE CLAMP
77785HARNESS, FUEL PUMP
8401
9011908D17
main90119-08D17
9015950343
main90159-50343
9017906178
main90179-06178
9017906219
main90179-06219
9030111025
main90301-11025
9046022002
main90460-22002
9046037003
main90460-37003
9046714053
main90467-14053
9046715018
main90467-15018
9056110023
main90561-10023
9056113003
main90561-13003
9095904001
main90959-04001
91626B0614
main91626-B0614
91671A0820
main91671-A0820
9613251300
main96132-51300
9613341101
main96133-41101
9613341300
main96133-41300
84 parts on this diagram · 5 diagrams in section
