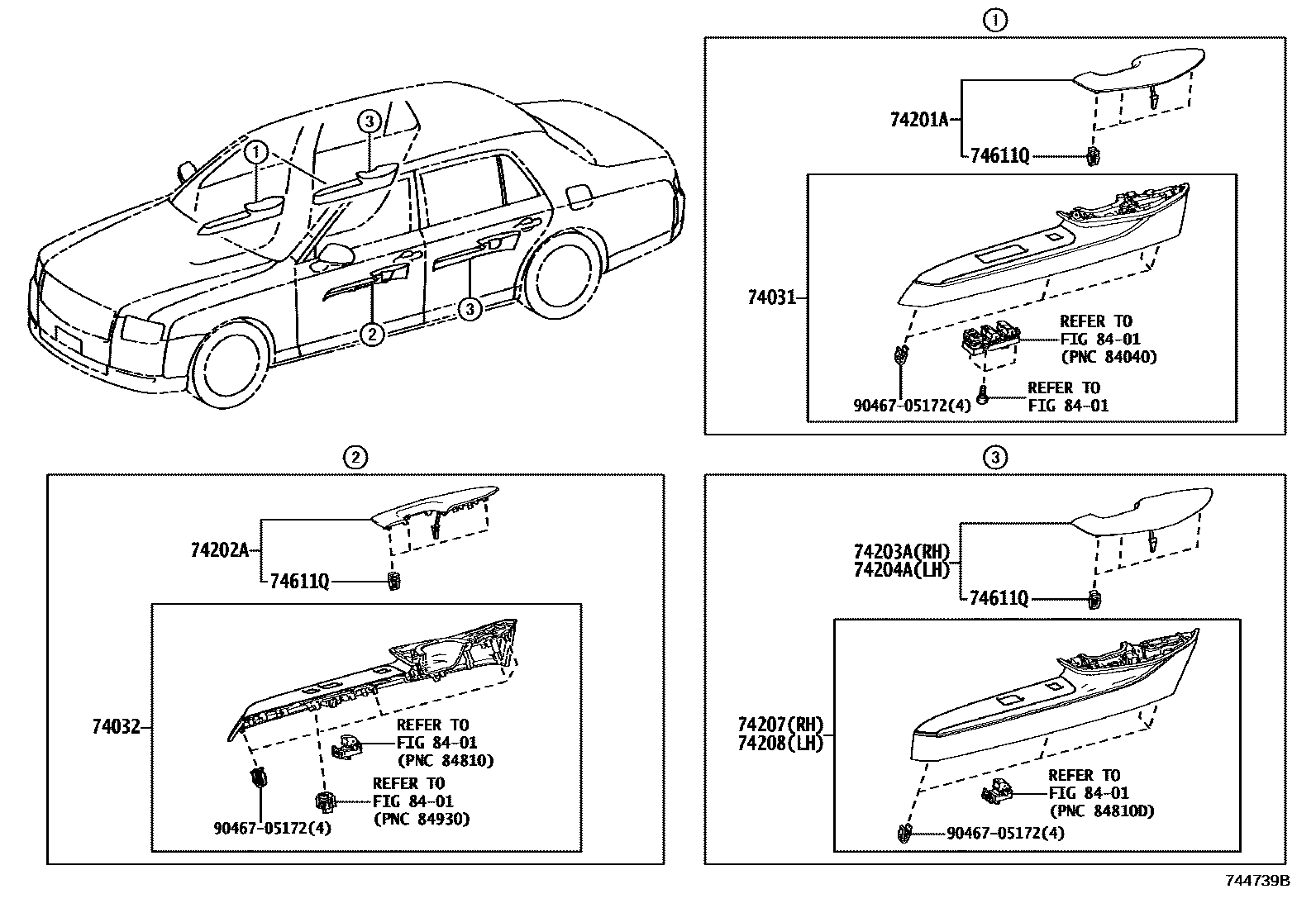

ARMREST & VISOR
74031BASE SUB-ASSY, FRONT DOOR ARMREST LOWER, RH
FRMAGE/GRAYISH WOOD,TRIM00
FRMAGE/LIGHT BROWN,TRIM00
N.WARM GRAY/LIGHT BROWN,TRIM1#
CHATEAU/LIGHT BROWN,TRIM40
BLACK/GRAYISH WOOD,TRIM20
BLACK/LIGHT BROWN,TRIM20
KURO KOHAKU/LIGHT BROWN,TRIM41
74032BASE SUB-ASSY, FRONT DOOR ARMREST LOWER, LH
GRAYISH WOOD/FROMAGE,TRIM00
LIGHT BROWN/FROMAGE,TRIM00
L.BROWN/NEUTRAL W.GRAY,TRIM1#
LIGHT BROWN/CHATEAU,TRIM40
GRAYSH WOOD/BLACK,TRIM20
LIGHT BROWN/BLACK,TRIM20
LIGHT BROWN/KURO KOHAKU,TRIM41
74201APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER RH
FROMAGE,TRIM0#
NEUTRAL WARM GRAY,TRIM1#
CHATEAU,TRIM40
BLACK,TRIM2#
KURO KOHAKU,TRIM41
74202APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER LH
FROMAGE,TRIM0#
NEUTRAL WARM GRAY,TRIM1#
CHATEAU,TRIM40
BLACK,TRIM2#
KURO KOHAKU,TRIM41
74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH
FROMAGE,TRIM0#
NEUTRAL WARM GRAY,TRIM1#
CHATEAU,TRIM40
BLACK,TRIM2#
KURO KOHAKU,TRIM41
74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH
FROMAGE,TRIM0#
NEUTRAL WARM GRAY,TRIM1#
CHATEAU,TRIM40
BLACK,TRIM2#
KURO KOHAKU,TRIM41
74207PANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH
FROMAGE/GRAYISH WOOD,TRIM00
FROMAGE/LT.BROWN,TRIM00
NW.GRAY/LT.BROWN,TRIM1#
CHATEAU/LT.BROWN,TRIM40
BLACK/GRAYISH WOOD,TRIM20
BLACK/LT.BROWN,TRIM20
KURO KOHAKU/LT.BROWN,TRIM41
74208PANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH
FROMAGE/GRAYISH WOOD,TRIM00
FROMAGE/LT.BROWN,TRIM00
NW.GRAY/LT.BROWN,TRIM1#
CHATEAU/GRAYISH WOOD,TRIM40
BLACK/GRAYISH WOOD,TRIM20
BLACK/LT.BROWN,TRIM20
KURO KOHAKU/LT.BROWN,TRIM41
74611QCLIP
8401
9046705172
main90467-05172
11 parts on this diagram · 2 diagrams in section
