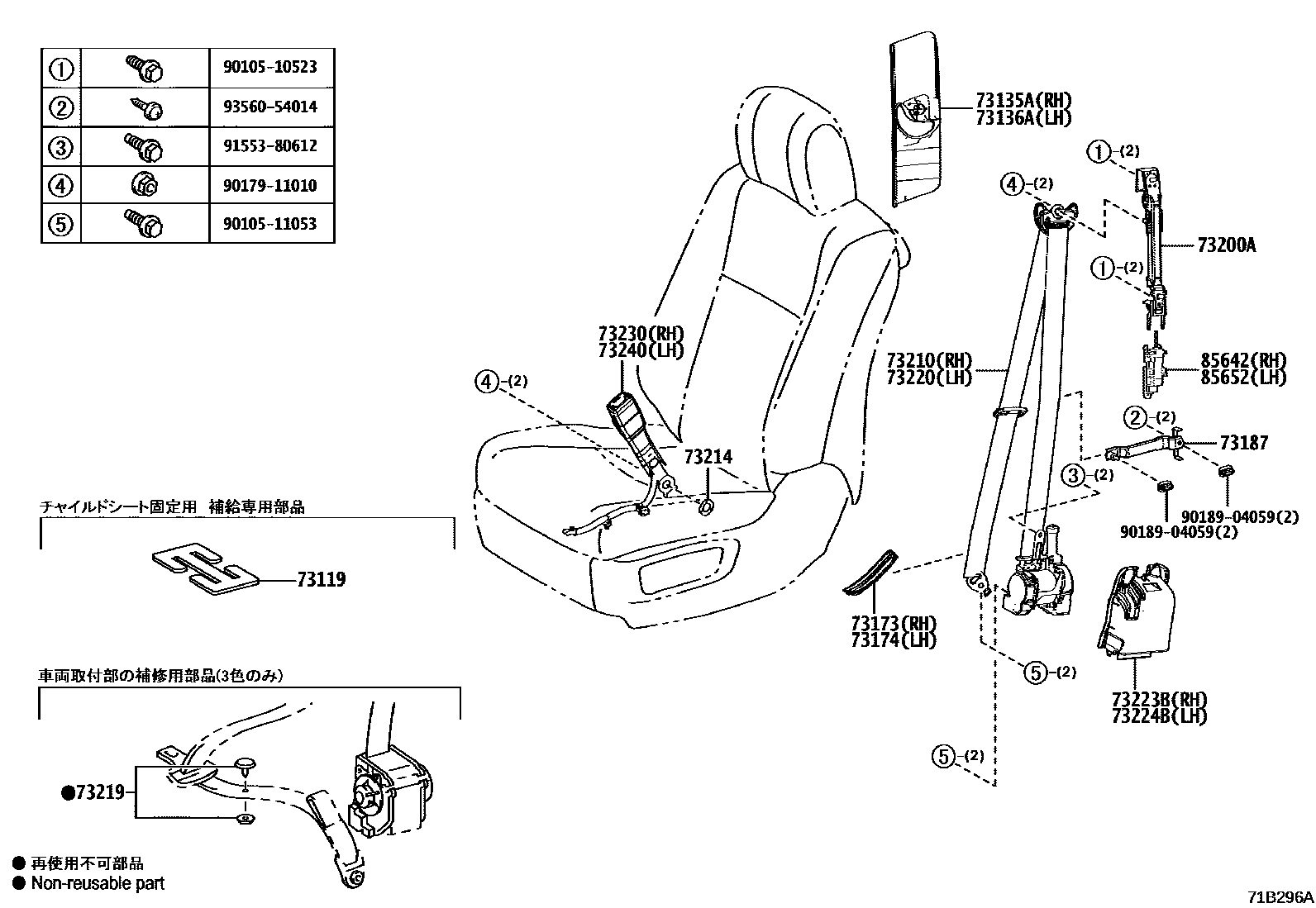

SEAT BELT & CHILD RESTRAINT SEAT
73119PLATE, SEAT BELT WEBBING CLIP
73135ACOVER, SHOULDER BELT ANCHOR, RH
FROMAGE,TRIM0#,4#
LT.GRAY,TRIM1#,2#
73136ACOVER, SHOULDER BELT ANCHOR, LH
FROMAGE,TRIM0#,4#
LT.GRAY,TRIM1#,2#
73173COVER, FRONT SEAT BELT HOLE, RH
FROMAGE,TRIM0#
NEUTRAL WARM GRAY,TRIM10
BLACK,TRIM10,2#,41
SAND BEIGE,TRIM40
DK. BROWN,TRIM41
73174COVER, FRONT SEAT BELT HOLE, LH
FROMAGE,TRIM0#
NEUTRAL WARM GRAY,TRIM10
BLACK,TRIM10,2#,41
SAND BEIGE,TRIM40
DK. BROWN,TRIM41
73187GUIDE, FRONT SEAT SHOULDER BELT
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
ECRU/FROMAGE,TRIM0#
BLACK/FROMAGE,TRIM41
BLACK/LT.GRAY,TRIM1#,2#
GREGE/FROMAGE,TRIM40
ECRU/FROMAGE,TRIM0#
BLACK/FROMAGE,TRIM41
BLACK/LT.GRAY,TRIM1#,2#
GREGE/SAND BEIGE/FROMAGE,TRIM40
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
73220BELT ASSY, FRONT SEAT OUTER, LH
ECRU/FROMAGE,TRIM0#
BLACK/FROMAGE,TRIM41
BLACK/LT.GRAY,TRIM1#,2#
GREGE/FROMAGE,TRIM40
ECRU/FROMAGE,TRIM0#
BLACK/FROMAGE,TRIM41
BLACK/LT.GRAY,TRIM1#,2#
GREGE/SAND BEIGE/FROMAGE,TRIM40
73223COVER, SEAT BELT RETRACTOR
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
FROMAGE,TRIM0#
BLACK,TRIM1#,2#,41
SAND BEIGE,TRIM40
73240BELT ASSY, FRONT SEAT INNER, LH
FROMAGE,TRIM0#
BLACK,TRIM1#,2#,41
SAND BEIGE,TRIM40
85642MOTOR, HEIGHT ADJUSTABLE ANCHOR, RH
85652MOTOR, HEIGHT ADJUSTABLE ANCHOR, LH
9010510523
main90105-10523
9010511053
main90105-11053
9017911010
main90179-11010
9018904059
main90189-04059
9155380612
main91553-80612
9356054014
main93560-54014
24 parts on this diagram · 2 diagrams in section
