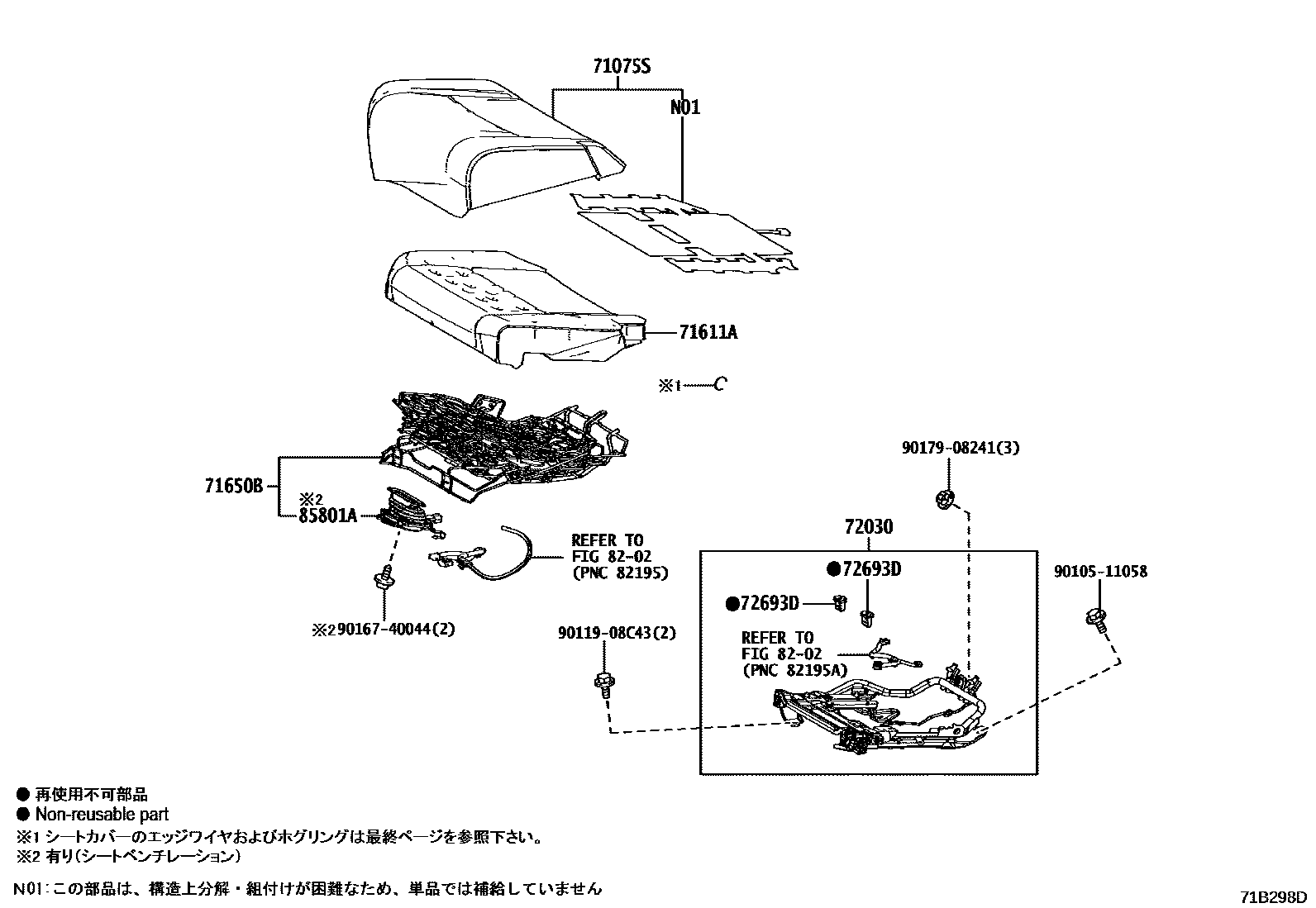

REAR SEAT & SEAT TRACK

0001 1��������(������) 0002 1��������(�������) 0003 1�������(������) 0004 1�������(�������) 0005 1������ 0006 1���������� & �������

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-40260-B0iUWG60201806

GRAY,TRIM1#

main71075-40260-E0iUWG60201806

BEIGE,TRIM40

main71075-40260-E1iUWG60201806

BROWN,TRIM41

main71075-40270-A0iUWG60201806

main71075-40270-C0iUWG60201806

71611APAD, REAR SEAT CUSHION, RH

main71611-40220supersedes 71611-40210iUWG60201806

71650BSPRING ASSY, REAR SEAT CUSHION, RH

main71650-40110supersedes 71650-40100iUWG60201806-202009

main71650-40111supersedes 71650-40100iUWG60202010

72030ADJUSTER ASSY, REAR NO.1 SEAT

main72030-40100iUWG60201806

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iUWG60201806

72693DHOOK, REAR SEAT CUSHION LOCK, RH

main72693-20060×2iUWG60201806

8202

85801ABLOWER SUB-ASSY, SEAT CUSHION CLIMATE, RH

main85801-40050iUWG60201806-202009

main85801-40051iUWG60202010

9010511058

main90105-11058

9011908C43

main90119-08C43

9016740044

main90167-40044

9017908241

main90179-08241

12 parts on this diagram · 6 diagrams in section
