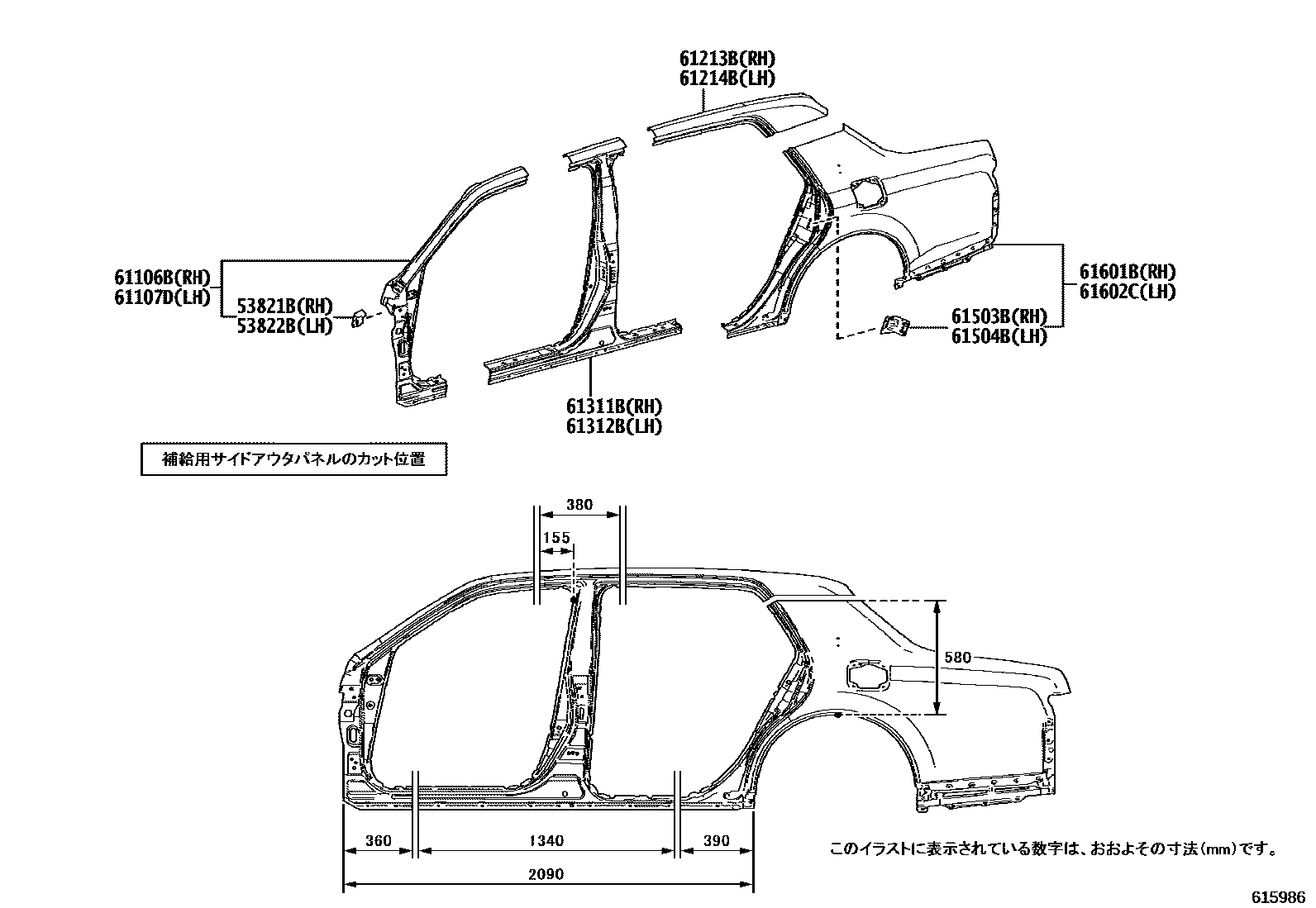

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-40030iUWG60201806

53822BBRACKET, FRONT FENDER, REAR LH

main53822-40020iUWG60201806

61106BPILLAR SUB-ASSY, FRONT, RH

main61106-40040iUWG60201806

61107DPILLAR SUB-ASSY, FRONT, LH

main61107-40040iUWG60201806

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-40010iUWG60201806

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-40010iUWG60201806

61311BPILLAR, CENTER BODY, OUTER RH

main61311-40040iUWG60201806

61312BPILLAR, CENTER BODY, OUTER LH

main61312-40040iUWG60201806

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-40030iUWG60201806

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-40030iUWG60201806

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-40120iUWG60201806

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-40110iUWG60201806

12 parts on this diagram · 3 diagrams in section
