MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58435ESILENCER, FRONT FLOOR, CENTER
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM1#,2#,41
DARK BEIGE,TRIM40
SANDALE WOOD,TRIM0#
58510FPLUG, HOLE
58521FHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58560BCLIP(FOR FLOOR CARPET, REAR)
58614BSHEET, CENTER FLOOR SILENCER
58621GPAD, FRONT FLOOR SILENCER, RH
58622CPAD, FRONT FLOOR SILENCER, LH
58673CPAD, REAR FLOOR SILENCER, NO.1
58674BPAD, REAR FLOOR SILENCER, NO.2
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
87125EGRILLE, HEATER AIR OUTLET
BLACK,TRIM1#,2#,41
ORCHID BROWN,TRIM0#
DK. BROWN,TRIM40
9354016014
main93540-16014

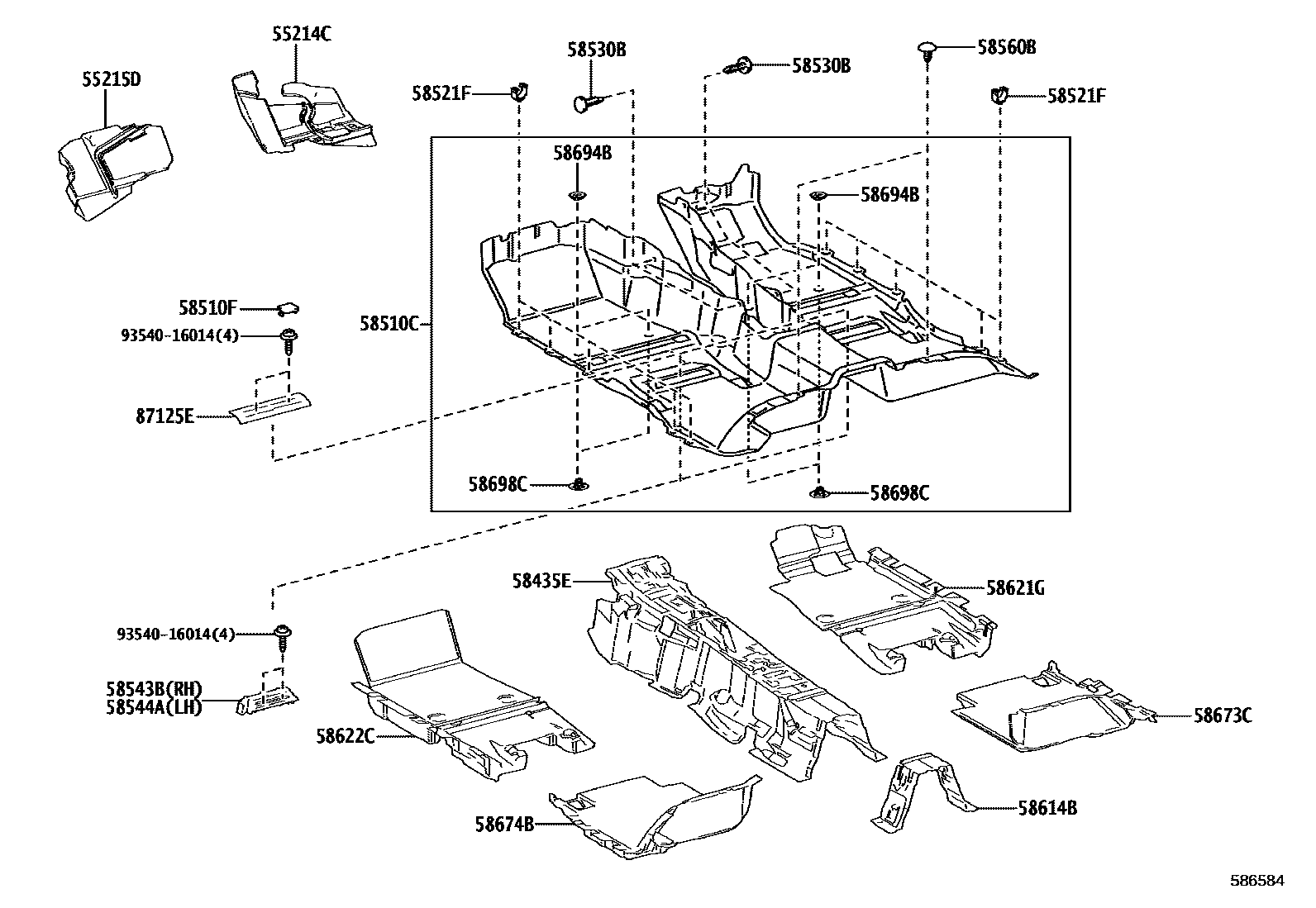

19 parts on this diagram · 1 diagram in section
