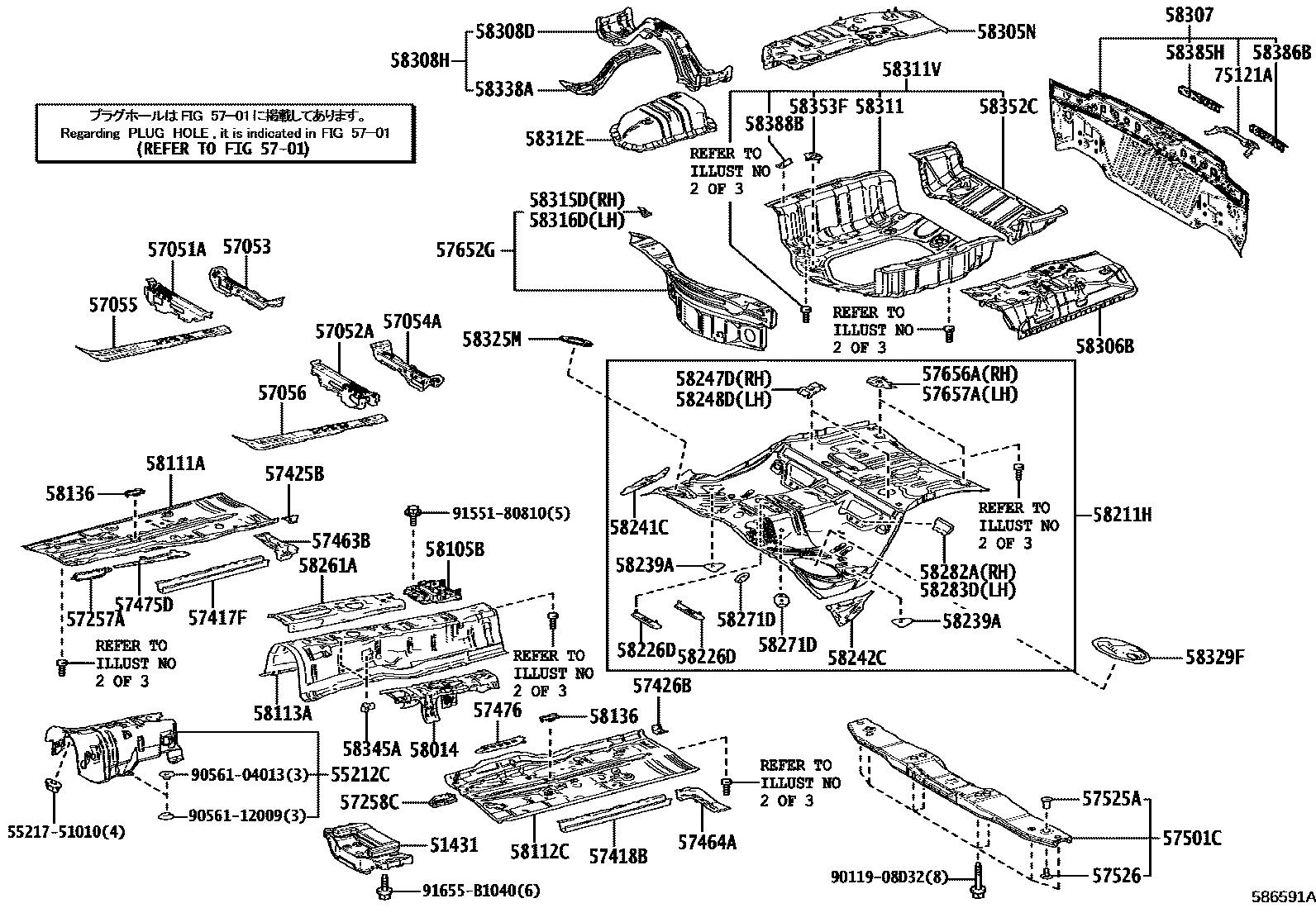

FLOOR PAN & LOWER BACK PANEL
51431MEMBER, ENGINE REAR MOUNTING
55212CSILENCER, FRONT PANEL, LOWER
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5
57056REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.6
57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER
57525APLATE, CENTER FLOOR, NO.1
57526PLATE, CENTER FLOOR, NO.2
57652GMEMBER, REAR FLOOR CROSS, NO.1 W/EXTENSION
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136COVER, FRONT FLOOR HOLE
58211HPAN, CENTER FLOOR
58226DPATCH, BRACKET CENTER MOUNTING
58239APLATE, BELT ANCHOR NUT
58241CPANEL, FLOOR SIDE, RH
58242CPANEL, FLOOR SIDE, LH
58247DBRACKET, REAR SEAT HINGE, OUTER RH
58248DBRACKET, REAR SEAT HINGE, OUTER LH
58261ACOVER, TRANSMISSION
58271DREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER
58308HBRACKET SUB-ASSY, REAR FLOOR CROSS W/REINFORCE
58311PAN, REAR FLOOR
58311VPAN, REAR FLOOR W/BRACKET & REINFORCEMENT
58312EPANEL, REAR FLOOR, REAR
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2
58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58388BBRACKET, PLATE REAR FLOOR
75121ABRACKET, REAR LICENSE PLATE
5521751010STRIP, DASH PANEL SILENCER FINISH
main55217-51010
9011908D32
main90119-08D32
9056104013
main90561-04013
9056112009
main90561-12009
9155180810
main91551-80810
91655B1040
main91655-B1040
68 parts on this diagram · 3 diagrams in section
