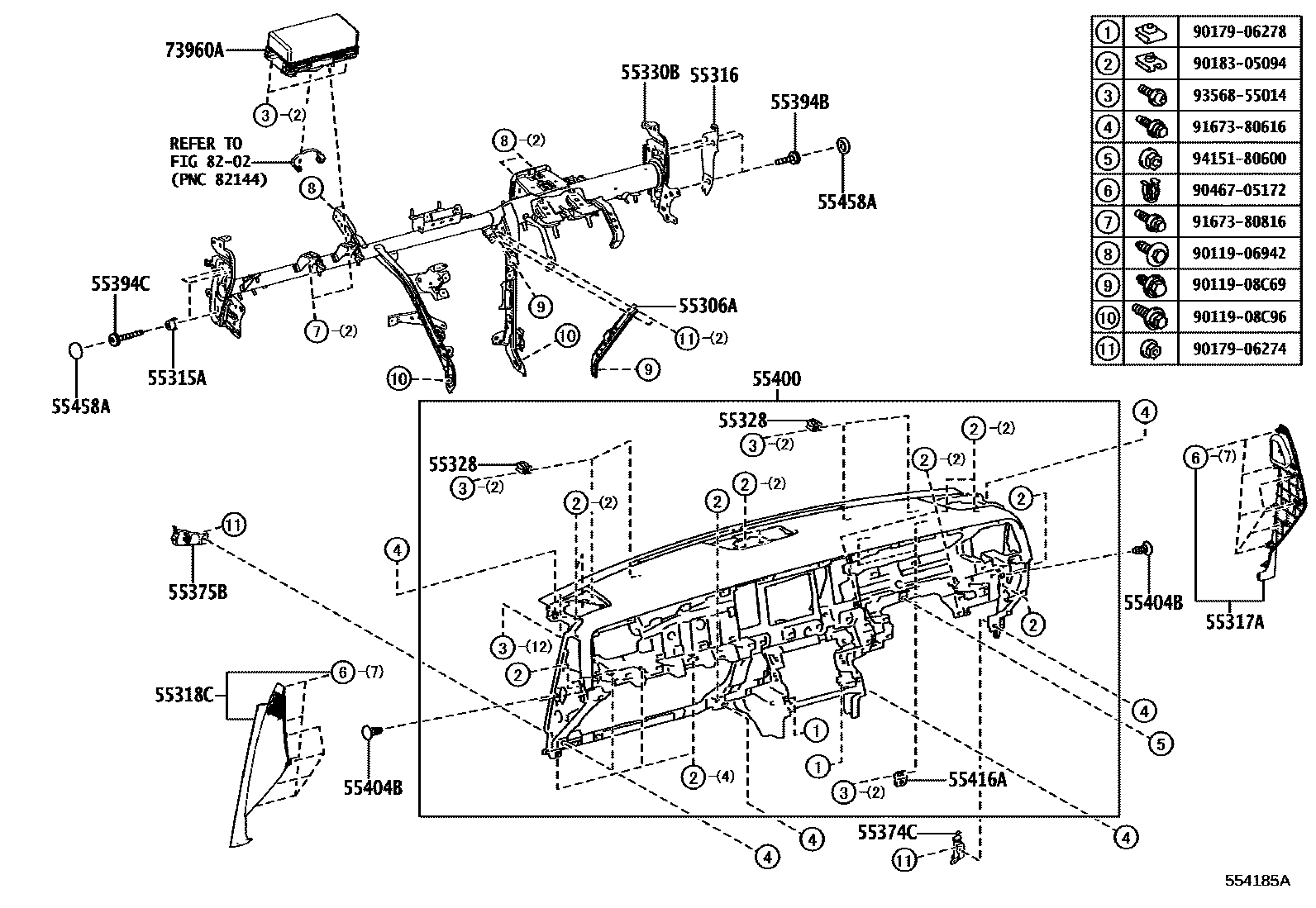

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-40050iUWG60201806

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040iUWG60201806

55316SPACER, INSTRUMENT PANEL, NO.2

main62221-40060iUWG60201806

main62221-40070iUWG60201806

main62221-40080iUWG60201806

55317APANEL, INSTRUMENT SIDE, RH

main55317-40010-C0iUWG60201806

BLACK,TRIM0#,1#,2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-40020-C0iUWG60201806

BLACK,TRIM0#,1#,2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iUWG60201806

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-40050iUWG60201806

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-40030iUWG60201806

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-40030iUWG60201806

55394BBOLT, INSTRUMENT PANEL

main55394-48050iUWG60201806

55394CBOLT, INSTRUMENT PANEL

main55394-48060iUWG60201806

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-40130-C0iUWG60201806-202007

BLACK,TRIM0#,1#,2#,4#

sub55400-40130

main55400-40130-C1iUWG60202007

BLACK/SOFT BLACK,TRIM0#,1#,2#,4#

sub55400-40130

55404BCLIP, SAFETY PAD SET

main90467-08186-C3iUWG60201806

BLACK

sub90467-08186

55416ARETAINER, METER HOOD, NO.1

main55416-30140iUWG60201806

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100iUWG60201806

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-40050iUWG60201806

8202

9011906942

main90119-06942

9011908C69

main90119-08C69

9011908C96

main90119-08C96

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

28 parts on this diagram · 4 diagrams in section
