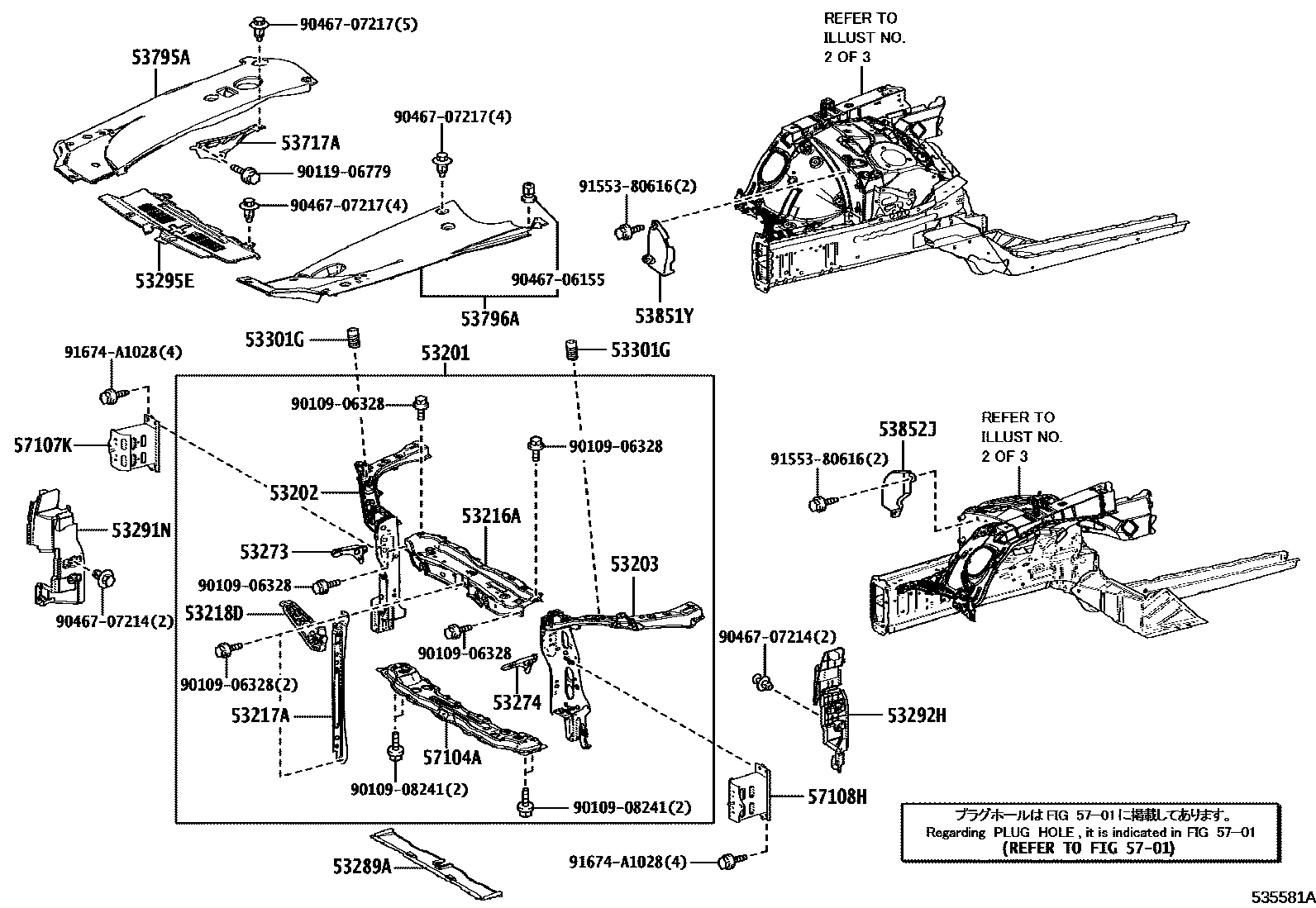

FRONT FENDER APRON & DASH PANEL

0001 1����������� & �������������� 0002 1�������������� 0003 1���������

53201SUPPORT SUB-ASSY, RADIATOR

main53201-40040iUWG60201806

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-40030iUWG60201806

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-40040iUWG60201806

53216ASUPPORT, RADIATOR, UPPER

main53216-40030iUWG60201806

53217ABRACE, HOOD LOCK SUPPORT

main53217-40020iUWG60201806

53218DEXTENSION, HOOD LOCK BRACE

main53218-40010iUWG60201806

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-40010iUWG60201806

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-40010iUWG60201806

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-50070iUWG60201806

53291NSEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-40020iUWG60201806

53292HSEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-40010iUWG60201806

53295ESEAL, COOL AIR INTAKE DUCT

main53295-40010iUWG60201806

53301GCUSHION, HOOD BUMPER

main90541-15037×2iUWG60201806

53717APLATE, FENDER APRON

main53717-50040iUWG60201806

53795ACOVER, ENGINE ROOM, SIDE

main53795-40060iUWG60201806

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-40010iUWG60201806

53851YPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53853-50011iUWG60201806

53852JPAD, FRONT WHEEL OPENING EXTENSION, LH

main53855-50011iUWG60201806

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-50090iUWG60201806

57107KREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-50031iUWG60201806

57108HREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57107-50031iUWG60201806

9010906328

main90109-06328

9010908241

main90109-08241

9011906779

main90119-06779

9046706155

main90467-06155

9046707214

main90467-07214

9046707217

main90467-07217

9155380616

main91553-80616

91674A1028

main91674-A1028

30 parts on this diagram · 3 diagrams in section
