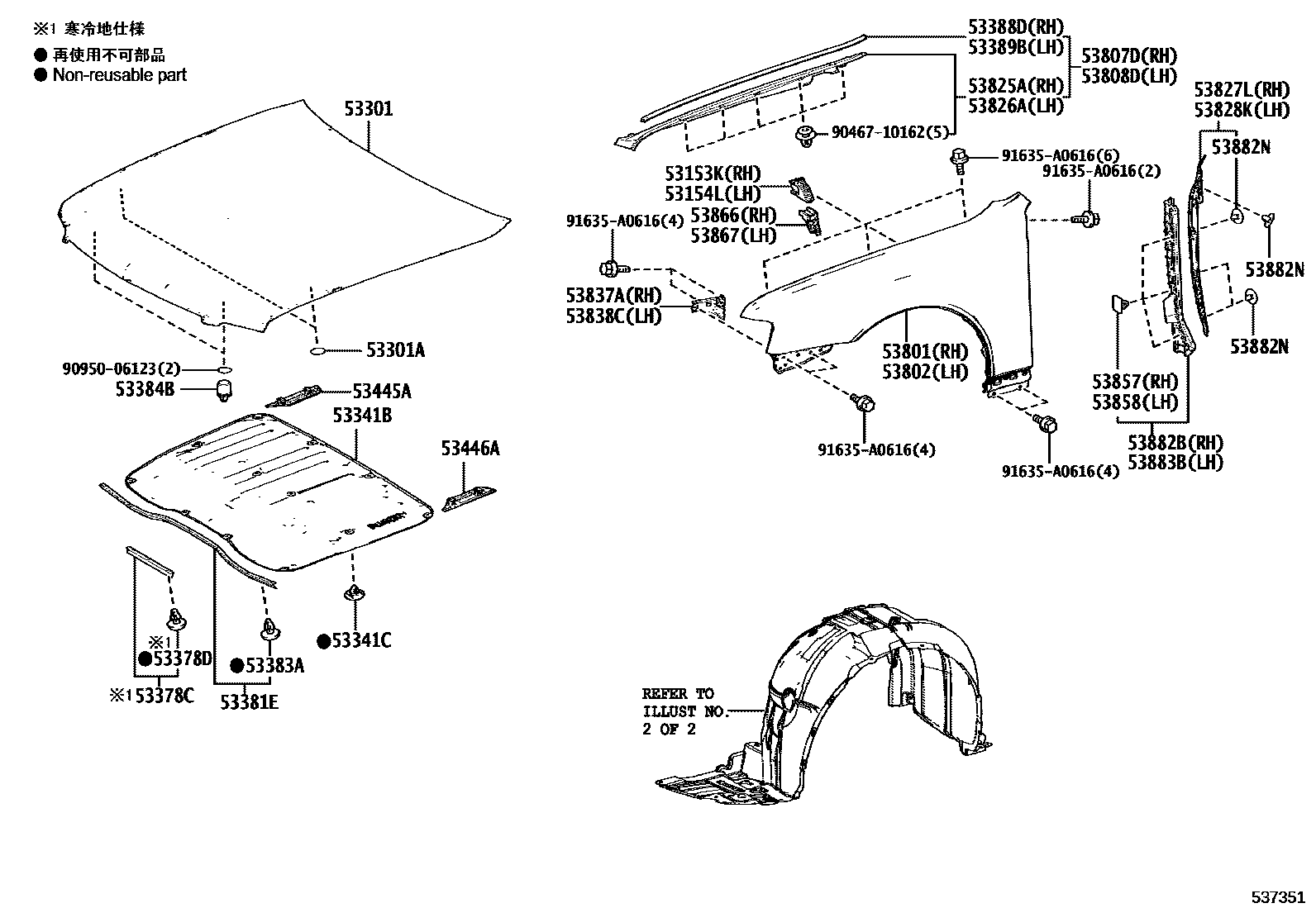

HOOD & FRONT FENDER
53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53378CSEAL, HOOD AIR INTAKE DUCT
53378DCLIP(FOR HOOD AIR INTAKE DUCT SEAL)
53381ESEAL, HOOD TO RADIATOR SUPPORT
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53445ACOVER, HOOD HINGE, RH
53446ACOVER, HOOD HINGE, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53837ABRACKET, FRONT SIDE PANEL, NO.2
53838CBRACKET, FRONT SIDE PANEL, NO.2 LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53882BSEAL, FRONT FENDER, RH
53882NCLIP(FOR FRONT FENDER SEAL)
BLACK
53883BSEAL, FRONT FENDER, LH
9046710162
main90467-10162
9095006123
main90950-06123
91635A0616
main91635-A0616
35 parts on this diagram · 2 diagrams in section
