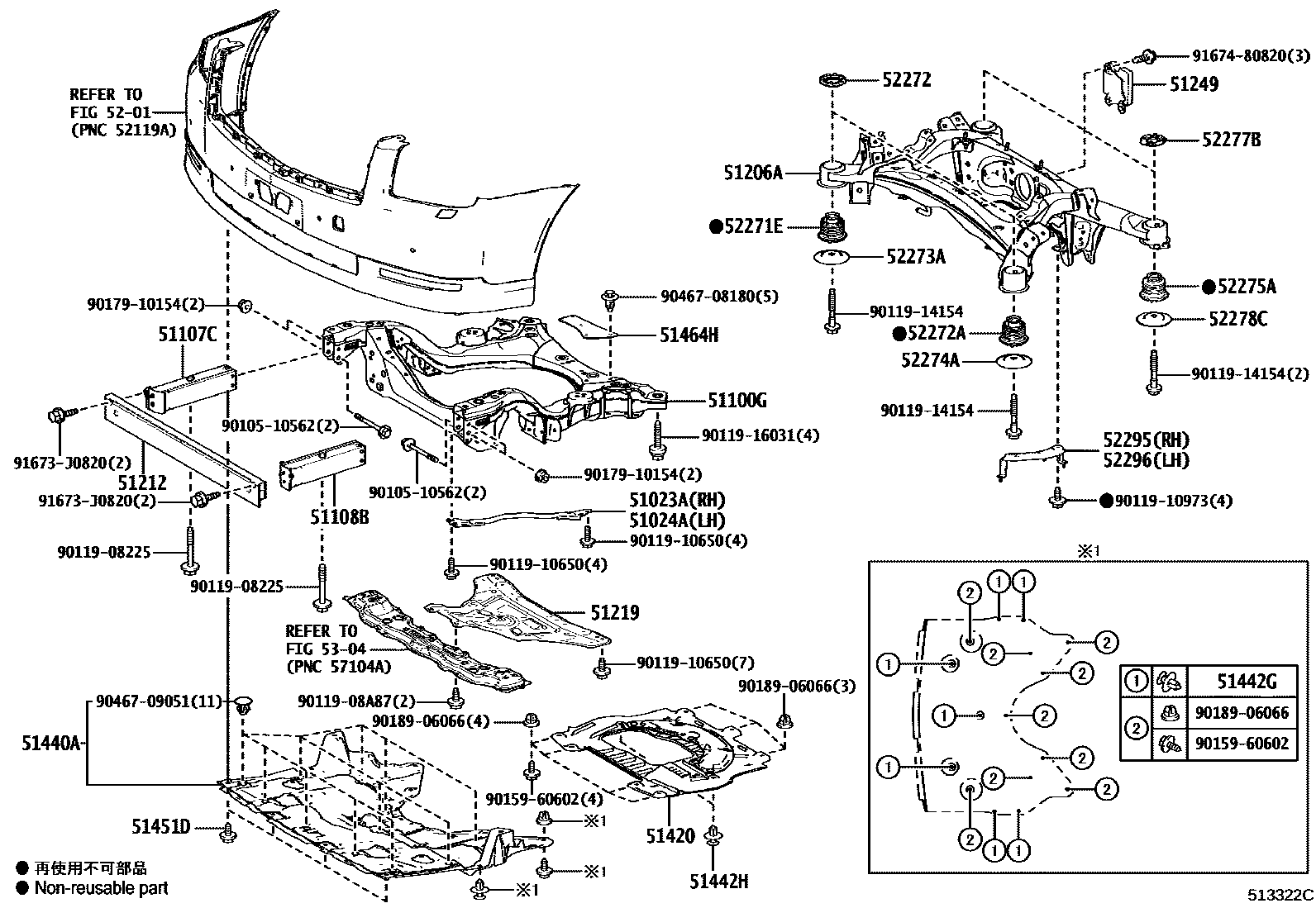

SUSPENSION CROSSMEMBER & UNDER COVER
51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51100GFRAME ASSY, FRONT
51107CRAIL SUB-ASSY, REAR FRAME, RH
51108BRAIL SUB-ASSY, REAR FRAME, LH
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51212CROSSMEMBER, FRONT SUSPENSION, LOWER
51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51249DAMPER, REAR SUSPENSION MEMBER
51420COVER ASSY, ENGINE UNDER, NO.2
51440ACOVER ASSY, ENGINE UNDER
51442GCLIP, ENGINE UNDER COVER, NO.1
51442HCLIP, ENGINE UNDER COVER, NO.2
51451DSCREW, NO.1
51464HSILENCER, TRANSMISSION UNDER
5201
52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52272STOPPER, REAR SUSPENSION MEMBER, UPPER
52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52295BRACE, REAR SUSPENSION MEMBER, RH
52296BRACE, REAR SUSPENSION MEMBER, LH
5304
9010510562
main90105-10562
9011908225
main90119-08225
9011908A87
main90119-08A87
9011910650
main90119-10650
9011910973
main90119-10973
9011914154
main90119-14154
9011916031
main90119-16031
9015960602
main90159-60602
9017910154
main90179-10154
9018906066
main90189-06066
9046708180
main90467-08180
9046709051
main90467-09051
91673J0820
main91673-J0820
9167480820
main91674-80820
41 parts on this diagram · 1 diagram in section
