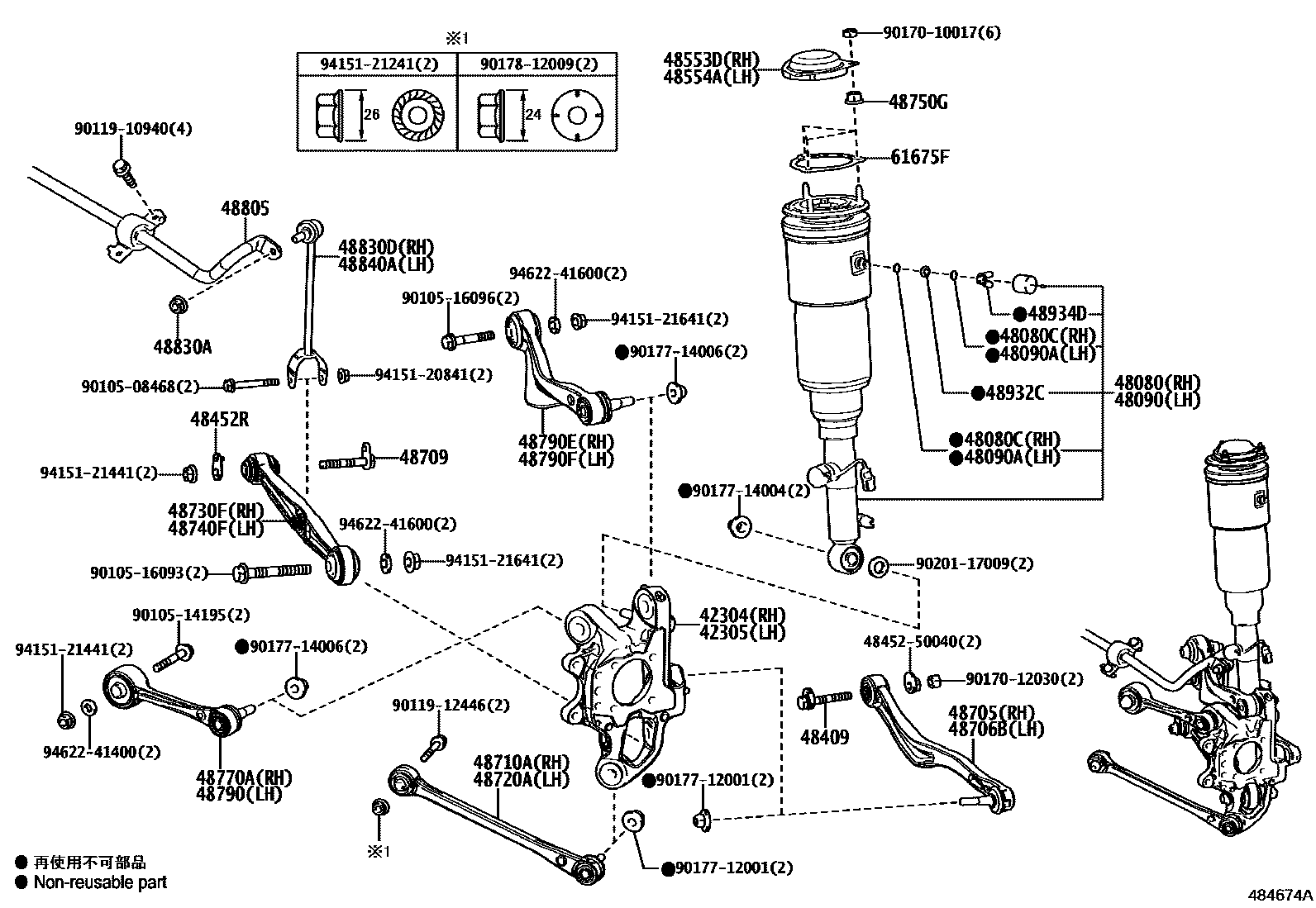

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48080CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER
48080CRING, O(FOR REAR PNEUMATIC CYLINDER RH)
48090CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER
48090ARING, O(FOR REAR PNEUMATIC CYLINDER LH)
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48705LINK SUB-ASSY, TOE CONTROL, RH
48706BLINK SUB-ASSY, TOE CONTROL, LH
48709ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48790EARM ASSY, UPPER CONTROL, REAR RH NO.2
48790FARM ASSY, UPPER CONTROL, REAR LH NO.2
48805BAR SUB-ASSY, REAR STABILIZER
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
48932CPLATE, HEIGHT CONTROL TUBE
48934DCONNECTOR, HEIGHT CONTROL TUBE
61675FREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
4845250040PIN, FRONT SPRING PIN LOCK
main48452-50040
9010508468
main90105-08468
9010514195
main90105-14195
9010516093
main90105-16093
9010516096
main90105-16096
9011910940
main90119-10940
9011912446
main90119-12446
9017010017
main90170-10017
9017012030
main90170-12030
9017712001
main90177-12001
9017714004
main90177-14004
9017714006
main90177-14006
9017812009
main90178-12009
9020117009
main90201-17009
9415120841
main94151-20841
9415121241
main94151-21241
9415121441
main94151-21441
9415121641
main94151-21641
9462241400
main94622-41400
9462241600
main94622-41600
49 parts on this diagram · 1 diagram in section
