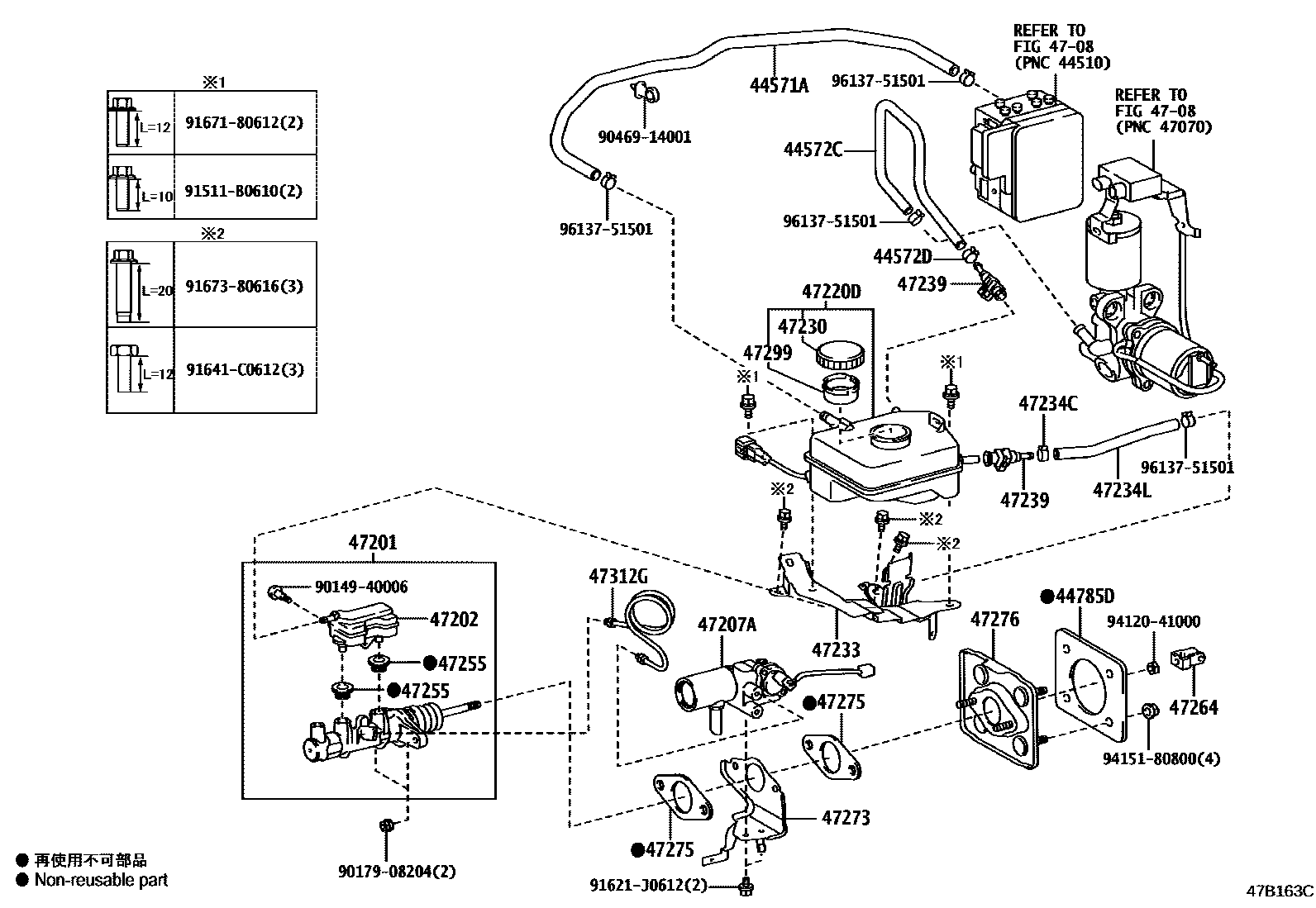

BRAKE MASTER CYLINDER

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-50100iUWG60201806

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-50070iUWG60201806

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main90467-14034iUWG60201806

44785DGASKET, BRAKE MASTER CYLINDER

main44785-47010iUWG60201806

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-50340iUWG60201806

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47221-50070iUWG60201806

47207ACYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR

main47207-50010iUWG60201806

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-50251iUWG60201806-202202

main47220-50252iUWG60202202

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-11010iUWG60201806-202111

main47230-11020iUWG60202111

47233BRACKET, RESERVOIR

main47233-50010iUWG60201806

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90467-14034iUWG60201806

47234LHOSE, RESERVOIR, NO.1

main47234-50010iUWG60201806

47239CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR

main47231-50010iUWG60201806

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iUWG60201806

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-26030iUWG60201806

47273BRACKET, BRAKE STROKE SIMULATOR

main47273-50010iUWG60201806

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iUWG60201806

47276BRACKET, BRAKE MASTER CYLINDER

main47276-30040iUWG60201806

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-30190iUWG60201806

47312GTUBE, BRAKE STROKE SIMULATOR

main44255-50040iUWG60201806

9014940006

main90149-40006

9017908204

main90179-08204

9046914001

main90469-14001

91511B0610

main91511-B0610

91621J0612

main91621-J0612

91641C0612

main91641-C0612

9167180612

main91671-80612

9167380616

main91673-80616

9412041000

main94120-41000

9415180800

main94151-80800

9613751501

main96137-51501

32 parts on this diagram · 1 diagram in section
