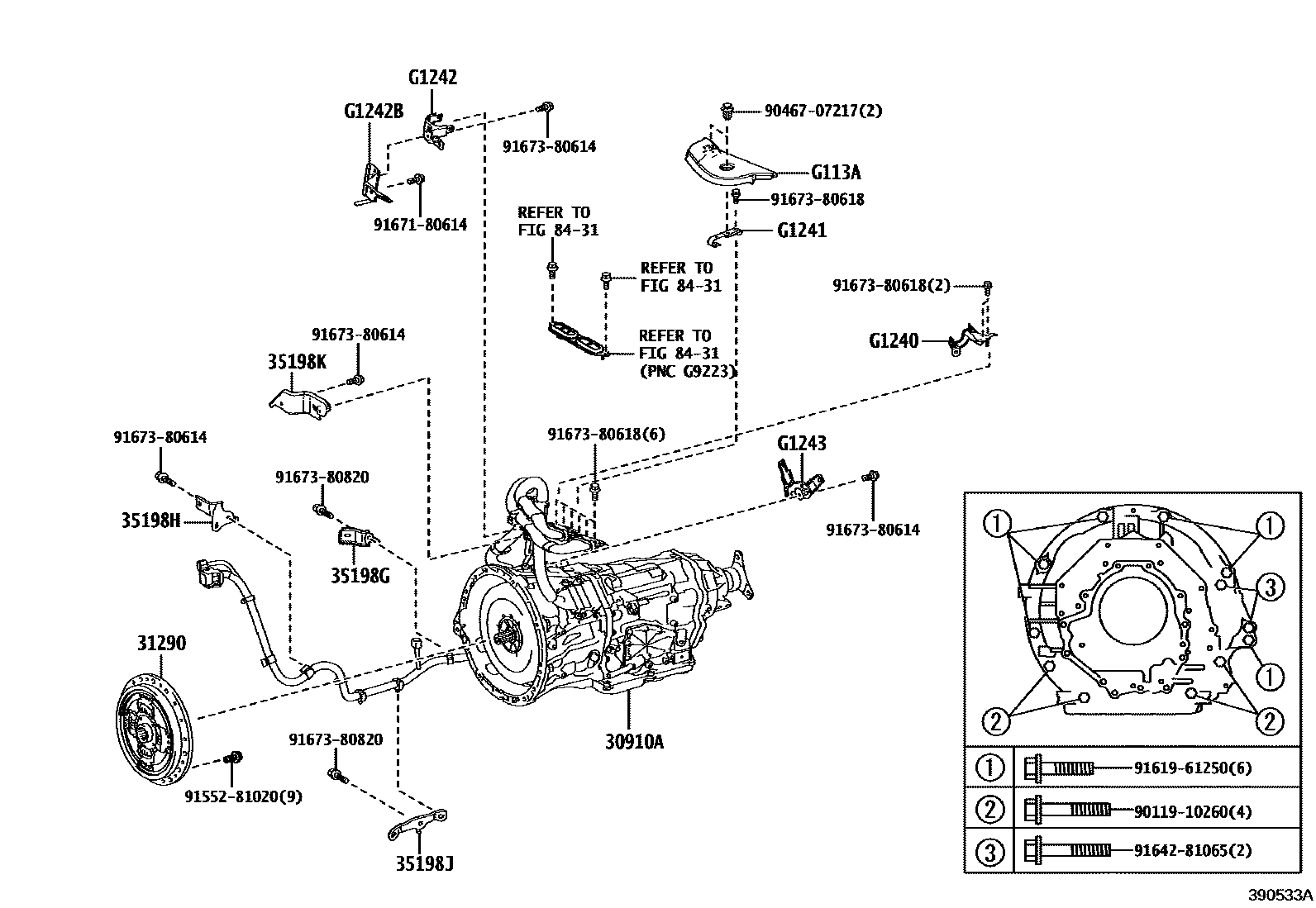

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1��������� & ������������ 0002 1��������� ������� 0003 1��������� ������

30910ATRANSMISSION ASSY, HYBRID VEHICLE

main30910-40010iUWG60201806

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-50010iUWG60201806

35198GBRACKET, WIRE HARNESS CLAMP NO.1

main35198-50050iUWG60201806

35198HBRACKET, WIRE HARNESS CLAMP, NO.2

main35198-50020iUWG60201806

35198JBRACKET, WIRE HARNESS CLAMP, NO.3

main35198-40010iUWG60201806

35198KBRACKET, WIRE HARNESS CLAMP, NO.4

main35198-50060iUWG60201806

8431

G113ACOVER, MOTOR CABLE, RH

mainG113A50010iUWG60201806

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124050010iUWG60201806

G1241BRACKET, INVERTER MOTOR CABLE CLAMP

mainG124150010iUWG60201806

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124250020iUWG60201806

G1242BBRACKET, ENGINE MOTOR CABLE CLAMP

mainG124250010iUWG60201806

G1243BRACKET, TRANSMISSION MOTOR CABLE CLAMP

mainG124350010iUWG60201806

9011910260

main90119-10260

9046707217

main90467-07217

9155281020

main91552-81020

9161961250

main91619-61250

9164281065

main91642-81065

9167180614

main91671-80614

9167380614

main91673-80614

9167380618

main91673-80618

9167380820

main91673-80820

22 parts on this diagram · 3 diagrams in section
