IGNITION COIL & SPARK PLUG / GLOW PLUG

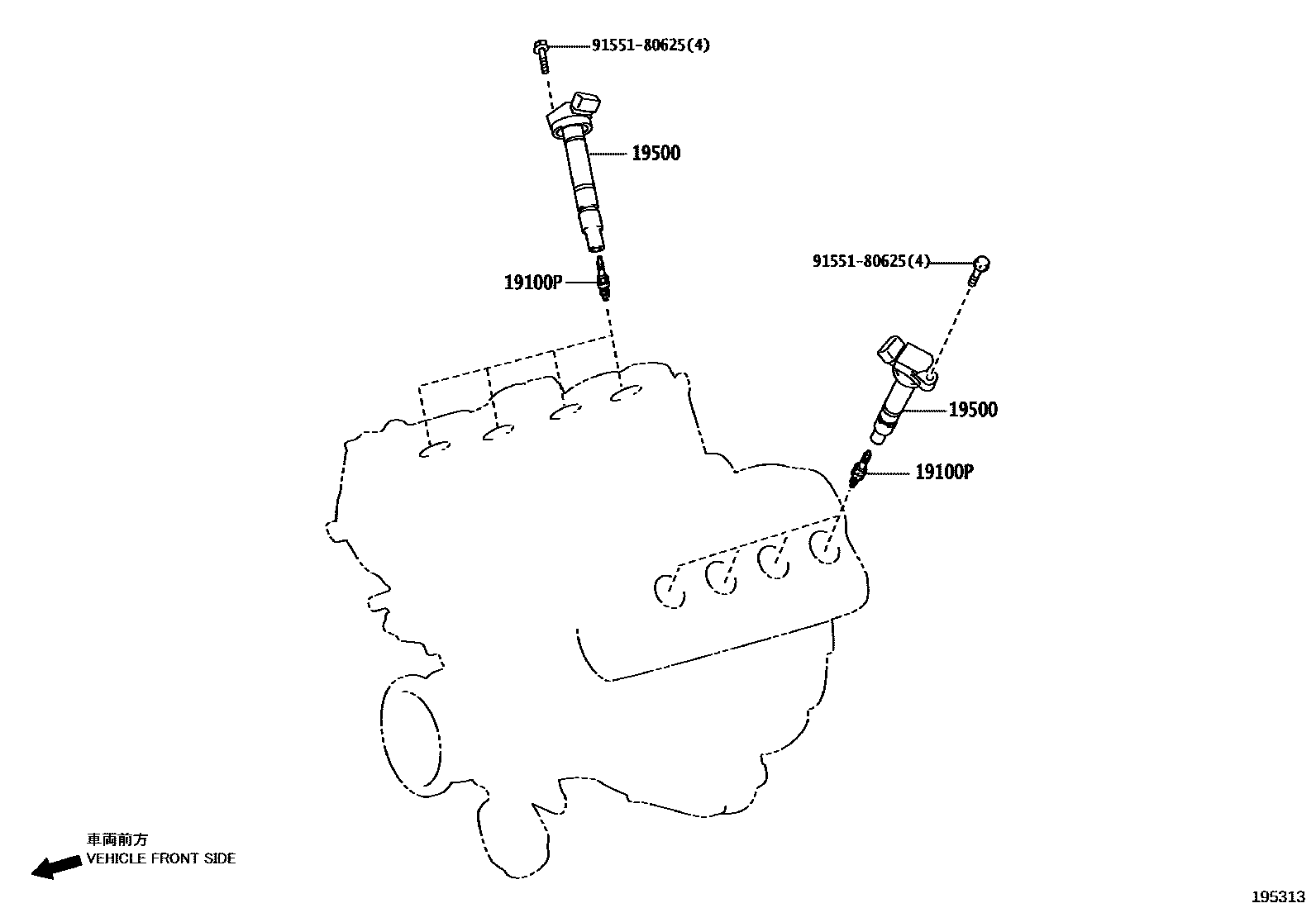

Parts diagram

19100PPLUG, SPARK

main90919-01249×8i201806

19500COIL ASSY, IGNITION

main90919-02256×8i201806

9155180625

main91551-80625

3 parts on this diagram · 1 diagram in section
