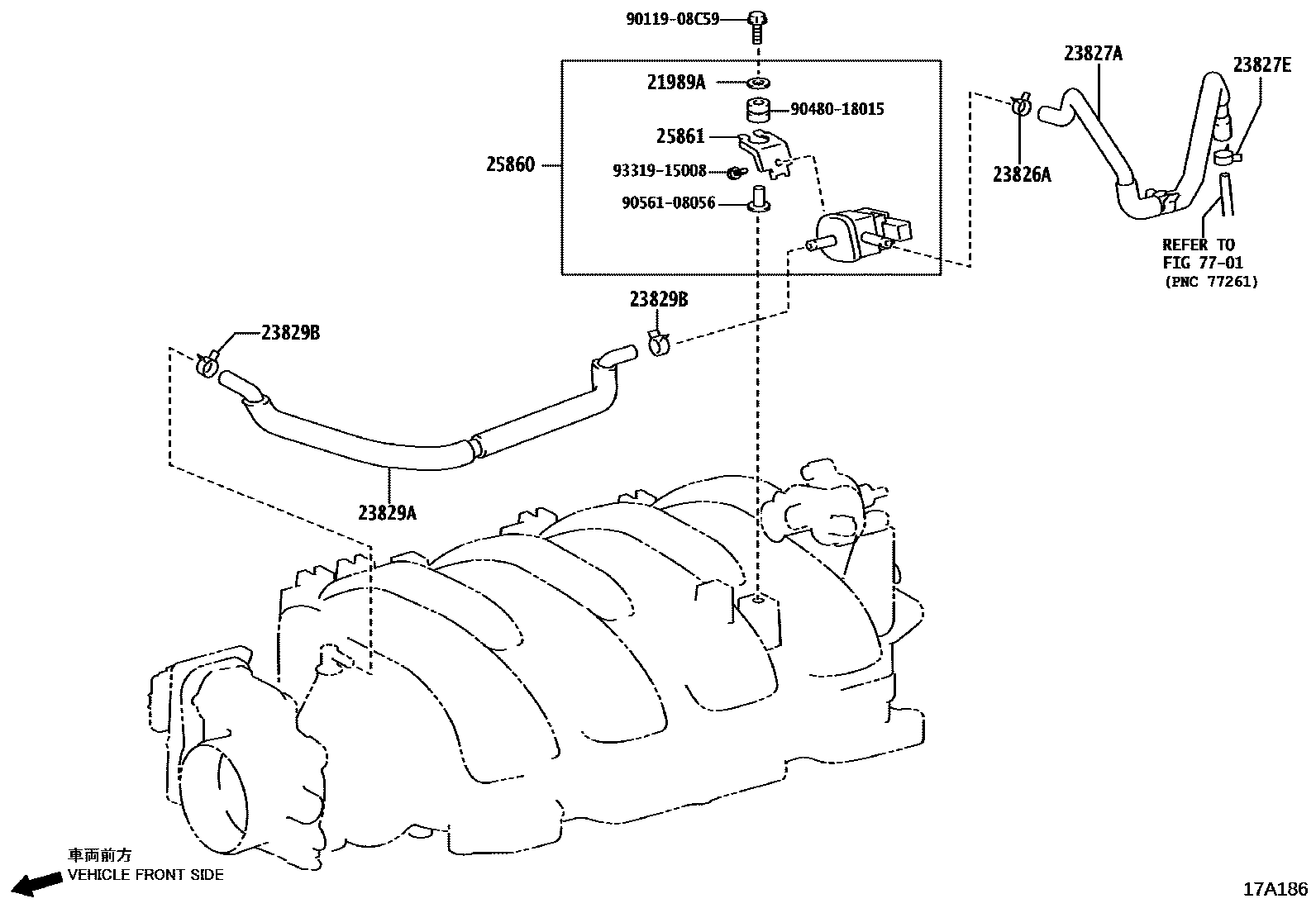

VACUUM PIPING

21989AINSULATOR, PLATE

main21989-38010i2URFSE..UWG60201806

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96133-41301i2URFSE..UWG60201806

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-38030i2URFSE..UWG60201806

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2URFSE..UWG60201806

23829AHOSE, FUEL VAPOR FEED

main23829-38030i2URFSE..UWG60201806-201903

main23829-38031i2URFSE..UWG60201904-202103

main23829-38032i2URFSE..UWG60202104

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300×2i2URFSE..UWG60201806

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-38030i2URFSE..UWG60201806

25861BRACKET, VACUUM SWITCHING VALVE

main25861-38010i2URFSE..UWG60201806

7701

9011908C59

main90119-08C59

9048018015

main90480-18015

9056108056

main90561-08056

9331915008

main93319-15008

13 parts on this diagram · 1 diagram in section
