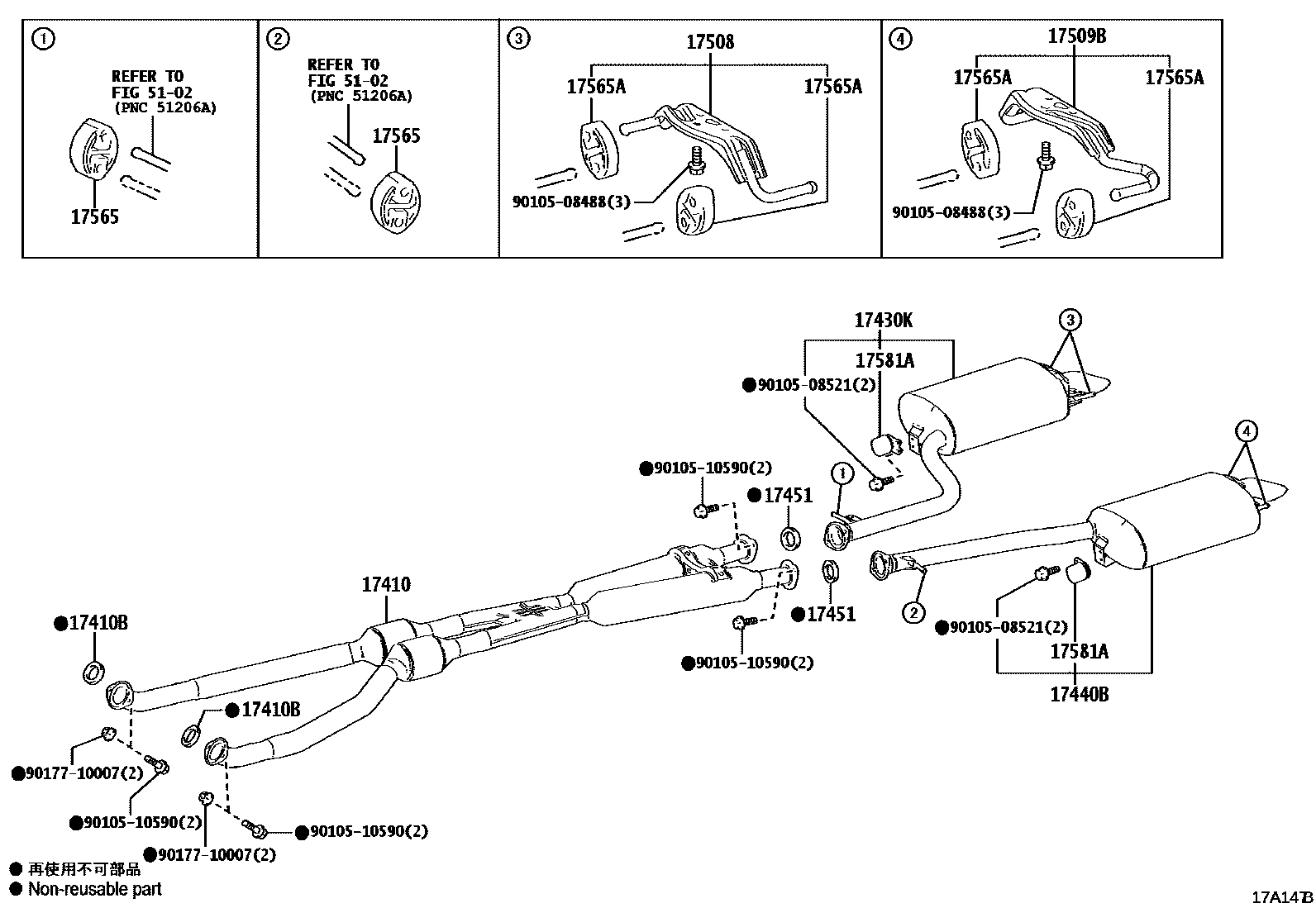

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-38590i2URFSE..UWG60201806

17410BGASKET, EXHAUST PIPE

main90917-06078i2URFSE..UWG60201806

17430KPIPE ASSY, EXHAUST TAIL, RH

main17430-38720i2URFSE..UWG60201806

17440BPIPE ASSY, EXHAUST TAIL, LH

main17440-38110i2URFSE..UWG60201806

17451GASKET, EXHAUST PIPE

main90917-06057i2URFSE..UWG60201806

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-38070i2URFSE..UWG60201806

17509BSUPPORT, EXHAUST PIPE NO.4

main17509-38020i2URFSE..UWG60201806

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010i2URFSE..UWG60201806

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-74290i2URFSE..UWG60201806

17581ADAMPER, EXHAUST PIPE

main17581-38040i2URFSE..UWG60201806

5102

9010508488

main90105-08488

9010508521

main90105-08521

9010510590

main90105-10590

9017710007

main90177-10007

15 parts on this diagram · 1 diagram in section
