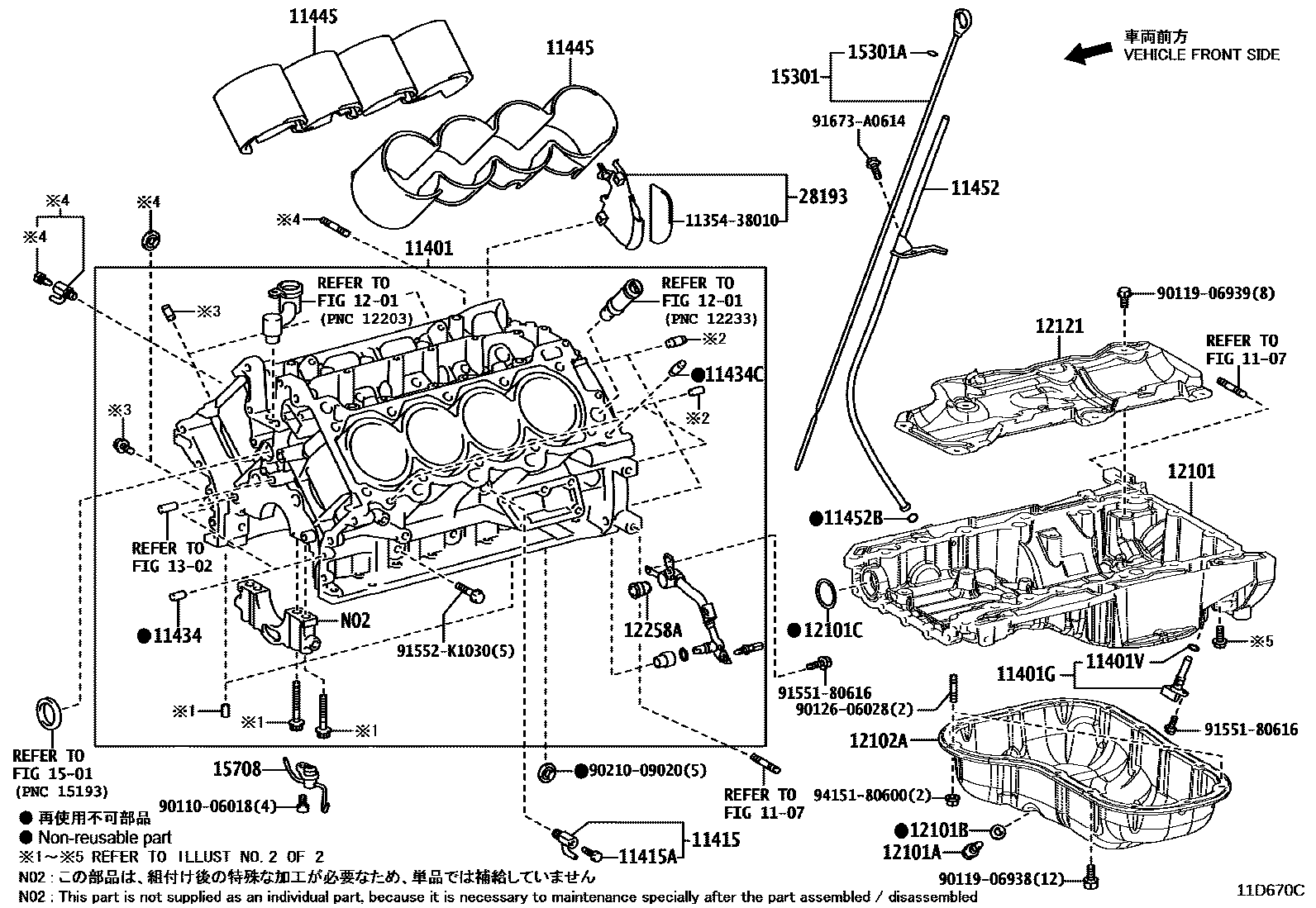

CYLINDER BLOCK

0001 1 0002 1

1107

11401BLOCK SUB-ASSY, CYLINDER

main11401-80831i2URFSE..UWG60201806

11401GSENSOR, CRANK POSITION

main90919-05071i2URFSE..UWG60201806

11401VO-RING, CRANK POSITION SENSOR

main90301-14016i2URFSE..UWG60201806

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09129×2i2URFSE..UWG60201806

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087×2i2URFSE..UWG60201806

11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097×2i2URFSE..UWG60201806

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×4i2URFSE..UWG60201806

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-38010×2i2URFSE..UWG60201806

11452GUIDE, OIL LEVEL GAGE

main11452-38050i2URFSE..UWG60201806

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-09028i2URFSE..UWG60201806

1201

12101PAN SUB-ASSY, OIL

main12111-38170i2URFSE..UWG60201806

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2URFSE..UWG60201806

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2URFSE..UWG60201806

12101CRING, O(FOR OIL PAN)

main90301-35006i2URFSE..UWG60201806

12102APAN SUB-ASSY, OIL, NO.2

main12102-38050i2URFSE..UWG60201806

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-38101i2URFSE..UWG60201806

12258AGASKET, OIL RETURN PIPE

main12269-38010i2URFSE..UWG60201806

1302

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-38100i2URFSE..UWG60201806

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2URFSE..UWG60201806

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-38030×4i2URFSE..UWG60201806

28193INSULATOR, STARTER HOLE

main28193-38011i2URFSE..UWG60201806

1135438010SEAL, FLYWHEEL HOUSING DUST

main11354-38010

9011006018

main90110-06018

9011906938

main90119-06938

9011906939

main90119-06939

9012606028

main90126-06028

9021009020

main90210-09020

9155180616

main91551-80616

91552K1030

main91552-K1030

91673A0614

main91673-A0614

9415180600

main94151-80600

35 parts on this diagram · 2 diagrams in section
