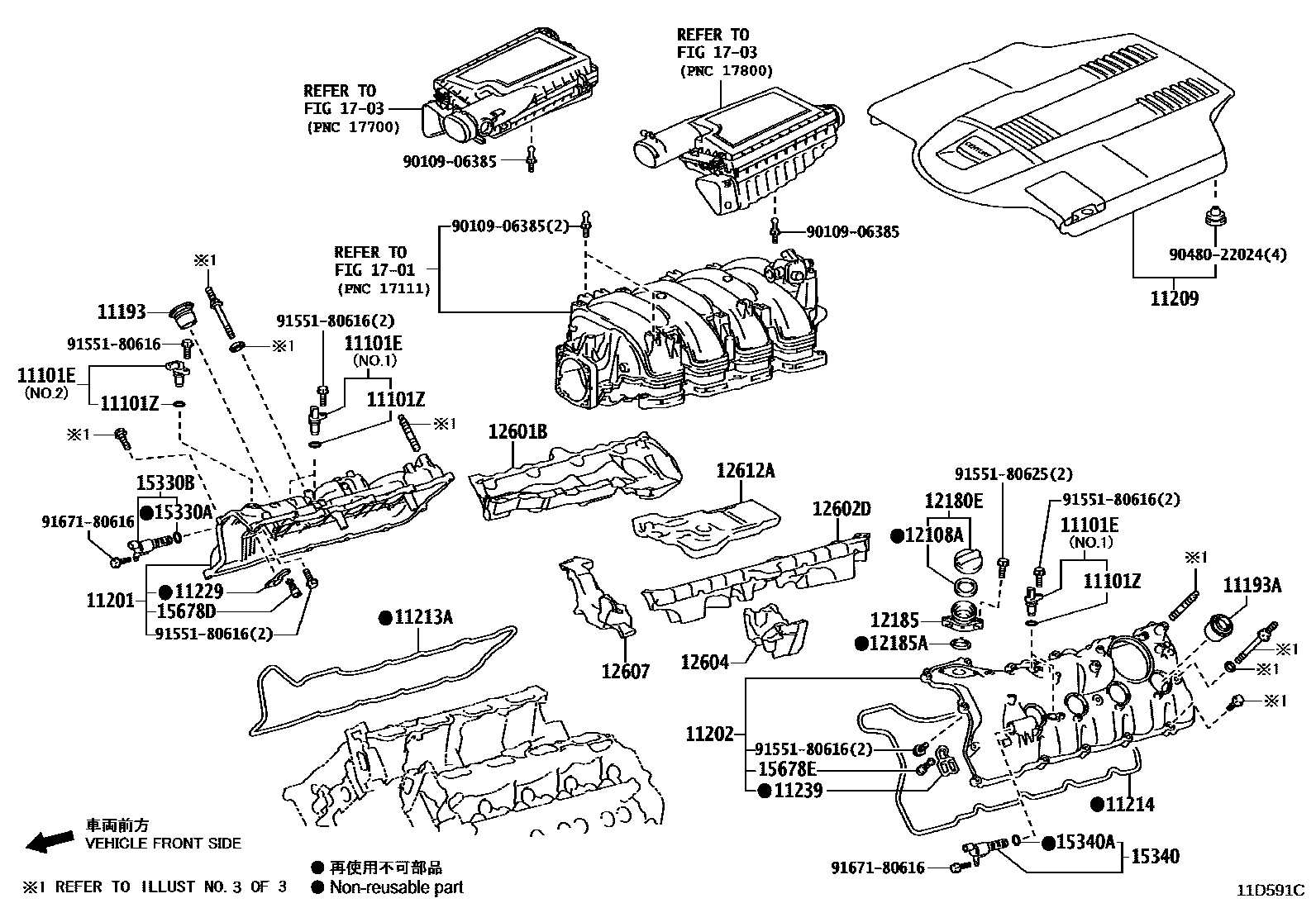

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ZO RING, CAM POSITION SENSOR
11193GASKET, SPARK PLUG TUBE
11193AGASKET, SPARK PLUG TUBE, LH
11201COVER SUB-ASSY, CYLINDER HEAD
11202COVER SUB-ASSY, CYLINDER HEAD, LH
11209COVER SUB-ASSY, V-BANK
11213AGASKET, CYLINDER HEAD COVER, RH NO.1
11214GASKET, CYLINDER HEAD COVER, NO.2
11229GASKET, CYLINDER HEAD COVER, NO.3
11239GASKET, CLINDER HEAD CONER, NO.4
12108AGASKET(FOR OIL FILLER CAP)
12180ECAP ASSY, OIL FILLER
12185HOUSING, OIL FILLER CAP
12185AGASKET, OIL FILLER CAP HOUSING
12601BCOVER SUB-ASSY, ENGINE, NO.1
12602DCOVER SUB-ASSY, ENGINE, NO.2
12604COVER SUB-ASSY, ENGINE, NO.4
12607COVER SUB-ASSY, ENGINE, LH NO.2
12612ACOVER, ENGINE, NO.2
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH
15340VALVE ASSY, CAM TIMING OIL CONTROL, LH
15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678DFILTER, OIL CONTROL VALVE, RH
15678EFILTER, OIL CONTROL VALVE, LH
1701
1703
9010906385
main90109-06385
9048022024
main90480-22024
9155180616
main91551-80616
9155180625
main91551-80625
9167180616
main91671-80616
34 parts on this diagram · 3 diagrams in section
