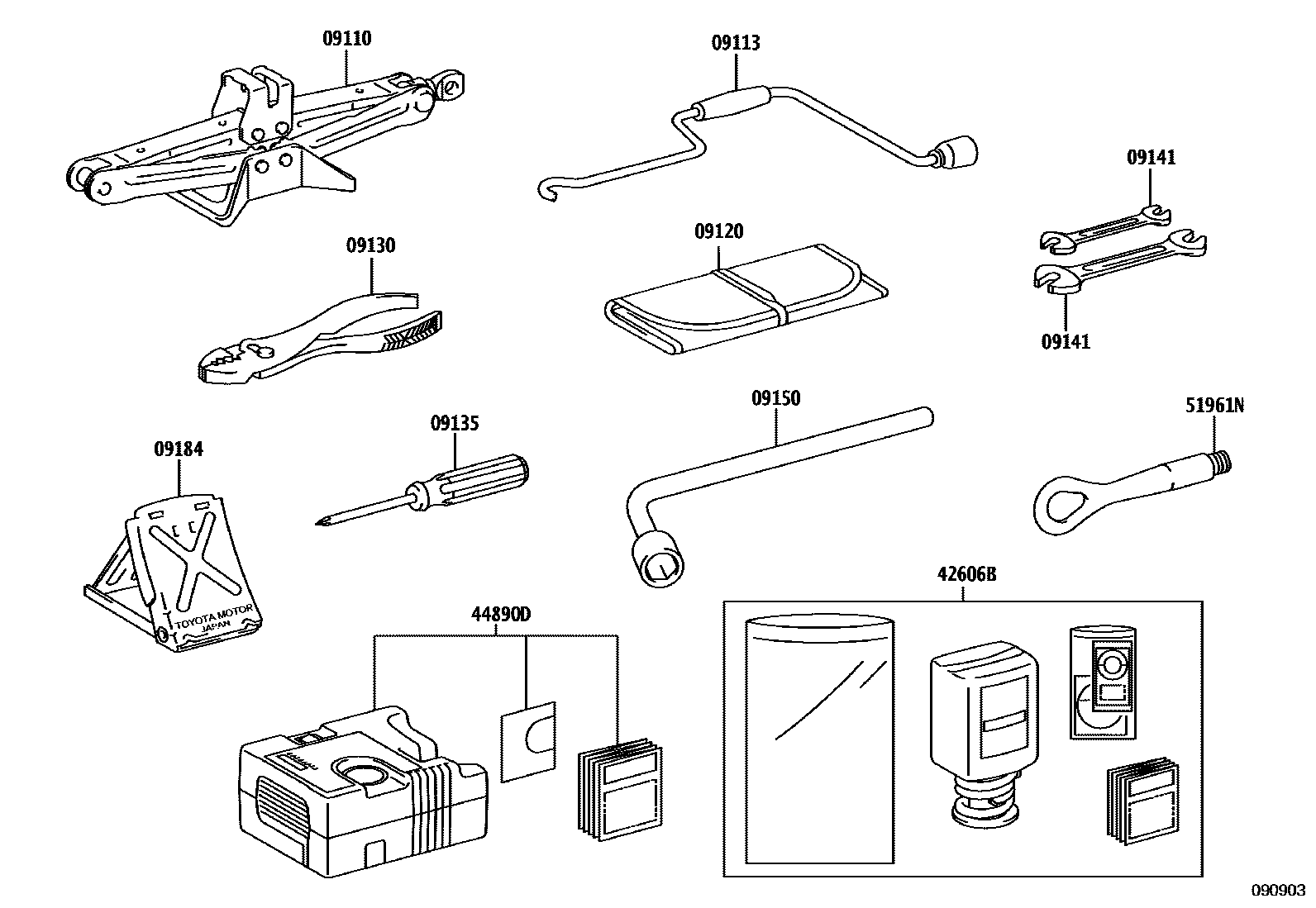

STANDARD TOOL

09110JACK ASSY

main09111-50130iUWG60201806-202110

sub09111-50131

main09111-50131iUWG60202111

09113HANDLE, JACK

main09113-50010iUWG60201806

09120BAG, TOOL

main09120-16030

09130PLIERS

main09130-50030

09135DRIVER, SCREW

main09135-50040iUWG60201806

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-50040iUWG60201806

09184STOPPER, WHEEL

main09184-00010

42606BREPAIR KIT, TUBELESS TIRE

main42606-50040iUWG60201806

44890DCOMPRESSOR ASSY, AIR

main44890-42030iUWG60201806-202107

sub44890-42031

main44890-48031iUWG60202108

51961NHOOK, TRANSPORT

main51961-11030iUWG60201806

11 parts on this diagram · 1 diagram in section
