REAR SEAT & SEAT TRACK

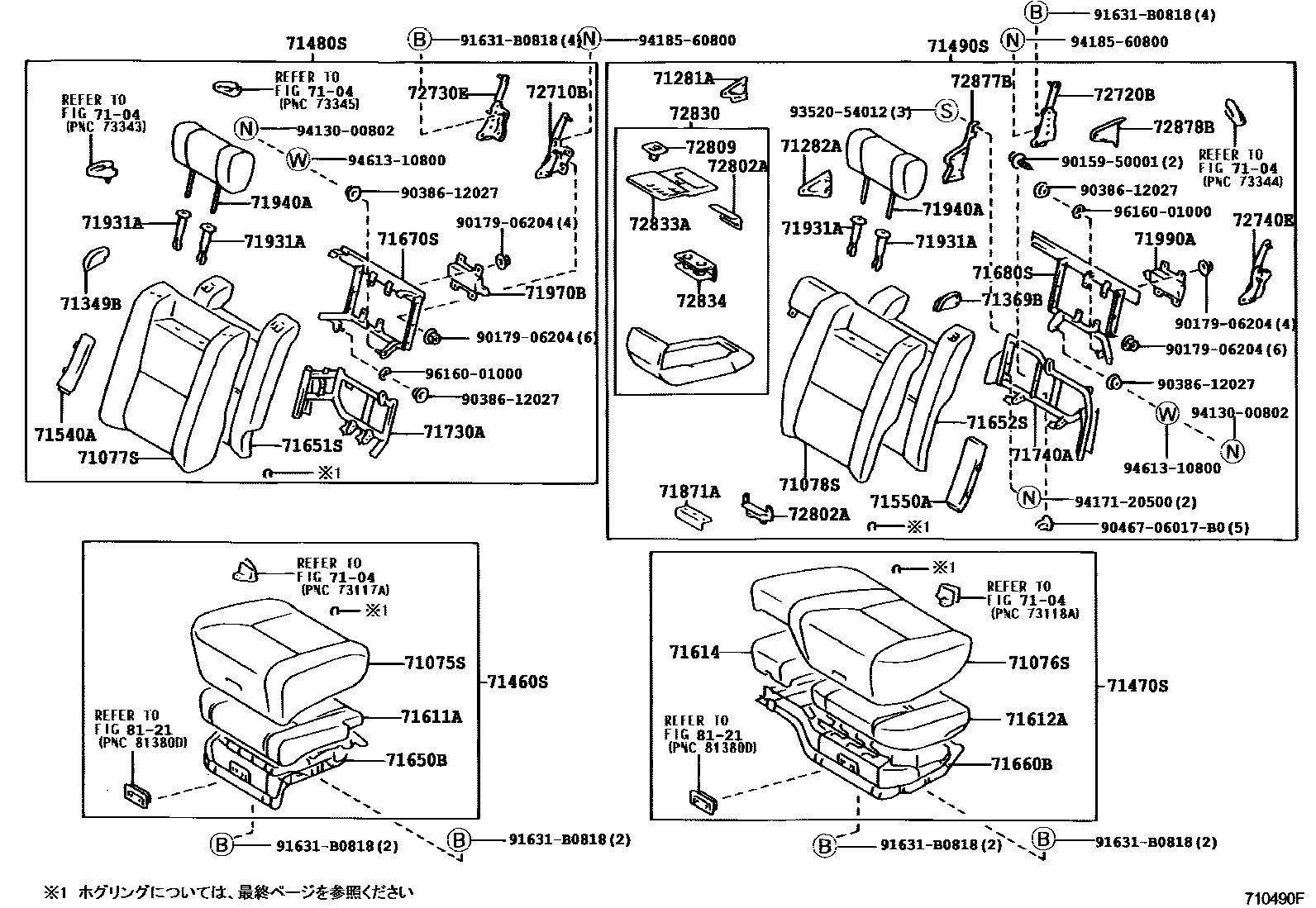

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-40110-B2i200206-200501
MD. GRAY,TRIM10
main71075-40110-B2i199704-200206
MD. GRAY,TRIM1#
main71075-40110-B3i199704-200501
DK. BLUE GRAY,TRIM8#
main71075-40110-E1i199704-200206
ORCHID,TRIM4#
main71075-40110-E1i200206-200501
ORCHID,TRIM40
main71075-40120-B2i199704-200501
main71075-40120-B3i199704-200501
main71075-40120-E1i199704-200501
main71075-40130-B0i199704-199905
main71075-40130-E0i199704-199905
main71075-40131-B0i199905-200501
main71075-40131-E0i199905-200501
main71075-40190-B0i200206-200501
main71075-40190-B1i200206-200501
main71075-40190-E0i200206-200501
main71075-40210-B0i200501-201701
MD.GRAY,TRIM1#
main71075-40210-B1i200501-201701
DK.BLUE GRAY,TRIM8#
main71075-40210-E0i200501-201701
ORCHID,TRIM4#
main71075-40220-B0i200501-201701
main71075-40220-E0i200501-201701
71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71076-40140-B2i199704-200206
MD. GRAY,TRIM1#
main71076-40140-B2i200206-200501
MD. GRAY,TRIM10
main71076-40140-B3i199704-200501
DK. BLUE GRAY,TRIM8#
main71076-40140-E1i199704-200206
ORCHID,TRIM4#
main71076-40140-E1i200206-200501
ORCHID,TRIM40
main71076-40150-B2i199704-200501
main71076-40150-B3i199704-200501
main71076-40150-E1i199704-200501
main71076-40160-B0i199704-199905
main71076-40160-E0i199704-199905
main71076-40161-B0i199905-200501
main71076-40161-E0i199905-200501
main71076-40210-B0i200206-200501
main71076-40210-B1i200206-200501
main71076-40210-E0i200206-200501
main71076-40230-B0i200501-200907
MD.GRAY,TRIM1#
main71076-40230-B1i200501-200907
DK.BLUE GRAY,TRIM8#
main71076-40230-E0i200501-200907
ORCHID,TRIM4#
main71076-40231-B0i200907-201701
MD.GRAY,TRIM1#
main71076-40231-B1i200907-201701
DK.BLUE GRAY,TRIM8#
main71076-40231-E0i200907-201701
ORCHID,TRIM4#
main71076-40240-B0i200501-200907
main71076-40240-E0i200501-200907
main71076-40241-B0i200907-201701
main71076-40241-E0i200907-201701
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-40140-B2i200206-200501
MD. GRAY,TRIM10
main71077-40140-B2i199704-200206
MD. GRAY,TRIM1#
main71077-40140-B3i199704-200501
DK. BLUE GRAY,TRIM8#
main71077-40140-E1i199704-200206
ORCHID,TRIM4#
main71077-40140-E1i200206-200501
ORCHID,TRIM40
main71077-40150-B2i199704-200501
main71077-40150-B3i199704-200501
main71077-40150-E1i199704-200501
main71077-40160-B0i199704-199905
main71077-40160-E0i199704-199905
main71077-40161-B0i199905-200501
main71077-40161-E0i199905-200501
main71077-40230-B0i200501-201008
MD.GRAY,TRIM1#
main71077-40230-B1i200501-201008
DK.BLUE GRAY,TRIM8#
main71077-40230-E0i200501-201008
ORCHID,TRIM4#
main71077-40240-B0i200501-201008
main71077-40240-E0i200501-201008
main71077-40270-B0i201008-201701
MD.GRAY,TRIM1#
main71077-40270-B1i201008-201701
DK.BLUE GRAY,TRIM8#
main71077-40270-E0i201008-201701
ORCHID,TRIM4#
main71077-40280-B0i201008-201701
main71077-40280-E0i201008-201701
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-40180-B2i199704-200206
MD. GRAY,TRIM1#
main71078-40180-B2i200206-200501
MD. GRAY,TRIM10
main71078-40180-B3i199704-200501
DK. BLUE GRAY,TRIM8#
main71078-40180-E1i199704-200206
ORCHID,TRIM4#
main71078-40180-E1i200206-200501
ORCHID,TRIM40
main71078-40190-B2i199704-200501
main71078-40190-B3i199704-200501
main71078-40190-E1i199704-200501
main71078-40200-B0i199704-199905
main71078-40200-E0i199704-199905
main71078-40201-B0i199905-200501
main71078-40201-E0i199905-200501
main71078-40240-B2i200206-200501
main71078-40240-B3i200206-200501
main71078-40240-E1i200206-200501
main71078-40250-B0i200501-200907
MD.GRAY,TRIM1#
main71078-40250-B1i200501-200907
DK.BLUE GRAY,TRIM8#
main71078-40250-E0i200501-200907
ORCHID,TRIM4#
main71078-40251-B0i200907-201008
MD.GRAY,TRIM1#
main71078-40251-B1i200907-201008
DK.BLUE GRAY,TRIM8#
main71078-40251-E0i200907-201008
ORCHID,TRIM4#
main71078-40260-B0i200501-200907
main71078-40260-E0i200501-200907
main71078-40261-B0i200907-201008
main71078-40261-E0i200907-201008
main71078-40290-B0i201008-201701
MD.GRAY,TRIM1#
main71078-40290-B1i201008-201701
DK.BLUE GRAY,TRIM8#
main71078-40290-E0i201008-201701
ORCHID,TRIM4#
main71078-40300-B0i201008-201701
main71078-40300-E0i201008-201701
71281AHINGE, REAR SEAT CENTER ARMREST
main71281-40010i199704-200501
71282AHINGE, REAR SEAT CENTER ARMREST, LH
main71282-40010i199704-200501
71349BCOVER, REAR SEATBACK STAY, RH
main71349-40010-B0i200206-200501
MD.GRAY,TRIM10
main71349-40010-B0i199704-200206
MD.GRAY,TRIM1#
main71349-40010-B2i200501-201701
MEDIUM GRAY,TRIM1#
main71349-40010-B3i200501-201701
DK. BLUE GRAY,TRIM8#
main71349-40010-E0i200206-200501
ORCHID,TRIM40
main71349-40010-E0i199704-200206
ORCHID,TRIM4#
main71349-40010-E2i200501-201701
ORCHID,TRIM4#
main71349-40010-J0i199704-200501
DK.BLUE GRAY,TRIM8#
main71349-40020-B0i199704-199705
main71349-40020-E0i199704-199705
main71349-40021-B0i199705-199905
main71349-40021-E0i199705-199905
main71349-40022-B0i199905-200501
main71349-40022-B1i200501-201701
main71349-40022-E0i199905-200501
main71349-40022-E1i200501-201701
71369BCOVER, REAR SEATBACK STAY, LH
main71369-40010-B0i200206-200501
MD.GRAY,TRIM10
main71369-40010-B0i199704-200206
MD.GRAY,TRIM1#
main71369-40010-B2i200501-201701
MEDIUM GRAY,TRIM1#
main71369-40010-B3i200501-201701
DK. BLUE GRAY,TRIM8#
main71369-40010-E0i200206-200501
ORCHID,TRIM40
main71369-40010-E0i199704-200206
ORCHID,TRIM4#
main71369-40010-E2i200501-201701
ORCHID,TRIM4#
main71369-40010-J0i199704-200501
DK.BLUE GRAY,TRIM8#
main71369-40020-B0i199704-199705
main71369-40020-E0i199704-199705
main71369-40021-B0i199705-199905
main71369-40021-E0i199705-199905
main71369-40022-B0i199905-200501
main71369-40022-B1i200501-201701
main71369-40022-E0i199905-200501
main71369-40022-E1i200501-201701
71460SCUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)
main71460-40130-B0i199704-200206
***,MD.GRAY,TRIM1#
main71460-40130-B0i200206-200501
***,MD.GRAY,TRIM10
main71460-40130-E0i200206-200501
***,ORCHID,TRIM40
main71460-40130-E0i199704-200206
***,ORCHID,TRIM4#
main71460-40130-J0i199704-200501
***,DK.BLUE GRAY,TRIM8#
main71460-40140-B0i199704-200501
main71460-40140-E0i199704-200501
main71460-40140-J0i199704-200501
main71460-40150-B0i199704-199905
main71460-40150-E0i199704-199905
main71460-40151-B0i199905-200501
main71460-40151-E0i199905-200501
main71460-40210-B0i200206-200501
main71460-40210-E0i200206-200501
main71460-40210-J0i200206-200501
71470SCUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
main71470-40180-B0i200206-200501
***,MD.GRAY,TRIM10
main71470-40180-B0i199704-200206
***,MD.GRAY,TRIM1#
main71470-40180-E0i200206-200501
***,ORCHID,TRIM40
main71470-40180-E0i199704-200206
***,ORCHID,TRIM4#
main71470-40180-J0i199704-200501
***,DK.BLUE GRAY,TRIM8#
main71470-40190-B0i199704-200501
main71470-40190-E0i199704-200501
main71470-40190-J0i199704-200501
main71470-40200-B0i199704-199905
main71470-40200-E0i199704-199905
main71470-40201-B0i199905-200501
main71470-40201-E0i199905-200501
main71470-40250-B0i200206-200501
main71470-40250-E0i200206-200501
main71470-40250-J0i200206-200501
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
main71480-40150-B0i200206-200501
***,MD.GRAY,TRIM10
main71480-40150-B0i199704-200206
***,MD.GRAY,TRIM1#
main71480-40150-E0i200206-200501
***,ORCHID,TRIM40
main71480-40150-E0i199704-200206
***,ORCHID,TRIM4#
main71480-40150-J0i199704-200501
***,DK.BLUE GRAY,TRIM8#
main71480-40160-B0i199704-200501
main71480-40160-E0i199704-200501
main71480-40160-J0i199704-200501
main71480-40170-B0i199704-199905
main71480-40170-E0i199704-199905
main71480-40171-B0i199905-200501
main71480-40171-E0i199905-200501
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
main71490-40440-B0i200206-200501
***,MD.GRAY,TRIM10
main71490-40440-B0i199704-200206
***,MD.GRAY,TRIM1#
main71490-40440-E0i200206-200501
***,ORCHID,TRIM40
main71490-40440-E0i199704-200206
***,ORCHID,TRIM4#
main71490-40440-J0i199704-200501
***,DK.BLUE GRAY,TRIM8#
main71490-40450-B0i199704-200501
main71490-40450-E0i199704-200501
main71490-40450-J0i199704-200501
main71490-40460-B0i199704-200206
main71490-40460-B0i200206-200501
main71490-40460-E0i200206-200501
main71490-40460-E0i199704-200206
main71490-40460-J0i199704-200501
main71490-40470-B0i199704-200501
main71490-40470-E0i199704-200501
main71490-40470-J0i199704-200501
main71490-40480-B0i199704-199905
main71490-40480-E0i199704-199905
main71490-40481-B0i199905-200501
main71490-40481-E0i199905-200501
main71490-40490-B0i199704-199905
main71490-40490-E0i199704-199905
main71490-40491-B0i199905-200501
main71490-40491-E0i199905-200501
main71490-40550-B2i200206-200501
main71490-40550-E2i200206-200501
main71490-40550-J2i200206-200501
main71490-40560-B2i200206-200501
main71490-40560-E2i200206-200501
main71490-40560-J2i200206-200501
71540ABACK ASSY, REAR SIDE SEAT, RH
main71540-40040-B0i199704-200206
MD.GRAY,TRIM1#
main71540-40040-B0i200206-200501
MD.GRAY,TRIM10
main71540-40040-B2i200501-201701
MEDIUM GRAY,TRIM1#
main71540-40040-B3i200501-201701
GRAY,TRIM8#
main71540-40040-E0i199704-200206
ORCHID,TRIM4#
main71540-40040-E0i200206-200501
ORCHID,TRIM40
main71540-40040-E2i200501-201701
ORCHID,TRIM4#
main71540-40040-J0i199704-200501
DK.BLUE GRAY,TRIM8#
main71540-40050-B0i199704-199705
main71540-40050-E0i199704-199705
main71540-40051-B0i199705-199905
main71540-40051-E0i199705-199905
main71540-40052-B0i199905-200501
main71540-40052-B1i200501-201701
main71540-40052-E0i199905-200501
main71540-40052-E1i200501-201701
71550ABACK ASSY, REAR SIDE SEAT, LH
main71550-40040-B0i199704-200206
MD.GRAY,TRIM1#
main71550-40040-B0i200206-200501
MD.GRAY,TRIM10
main71550-40040-B2i200501-201701
MEDIUM GRAY,TRIM1#
main71550-40040-B3i200501-201701
GRAY,TRIM8#
main71550-40040-E0i199704-200206
ORCHID,TRIM4#
main71550-40040-E0i200206-200501
ORCHID,TRIM40
main71550-40040-E2i200501-201701
ORCHID,TRIM4#
main71550-40040-J0i199704-200501
DK.BLUE GRAY,TRIM8#
main71550-40050-B0i199704-199705
main71550-40050-E0i199704-199705
main71550-40051-B0i199705-199905
main71550-40051-E0i199705-199905
main71550-40052-B0i199905-200501
main71550-40052-B1i200501-201701
main71550-40052-E0i199905-200501
main71550-40052-E1i200501-201701
main71550-40080i200206-200501
71611APAD, REAR SEAT CUSHION, RH
main71611-40070i199704-200501
main71611-40080i199704-199905
main71611-40081i199905-200501
main71611-40140i200206-200501
main71611-40160i200501
main71611-40170i200501
71612APAD, REAR SEAT CUSHION, LH
main71612-40070i199704-200501
main71612-40080i199704-199905
main71612-40081i199905-200501
main71612-40130i200206-200501
main71612-40150i200501
main71612-40160i200501-200907
main71612-40161i200907
71614PAD, REAR SEAT CUSHION, CENTER
main71614-40060i199704-200501
main71614-40070i199704-200501
main71614-40100i200206-200501
71650BSPRING ASSY, REAR SEAT CUSHION, RH
main71650-40040i199704-200501
main71650-40050i200501
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-40080i199704-200501
main71651-40090i199704-199905
main71651-40091i199905-200501
main71651-40150i200501-201008
main71651-40160i200501-201008
main71651-40180i201008
main71651-40190i201008
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-40050i199704-200501
main71652-40080i199704-199905
main71652-40081i199905-200501
main71652-40140i200206-200501
main71652-40150i200501-201008
main71652-40160i200501-201008
main71652-40180i201008
main71652-40190i201008
71660BSPRING ASSY, REAR SEAT CUSHION, LH
main71016-40100i200206-200501
main71660-40070i199704-200501
main71660-40080i200501
71670SSPRING ASSY, REAR SEATBACK, RH(FOR SEPARATE SEAT)
main71670-40070i199704-200501
main71670-40100i200501-201008
main71670-40120i201008
71680SSPRING ASSY, REAR SEATBACK, LH(FOR SEPARATE SEAT)
main71680-40080i199704-200501
main71680-40090i199704-200501
main71680-40100i200206-200501
main71680-40110i200501-201008
main71680-40120i201008
71730ASPRING ASSY, REAR SEATBACK, LOWER RH
main71730-40060i199704-200501
main71730-40070i199704-200501
main71730-40080i200501-201008
main71730-40090i201008
71740ASPRING ASSY, REAR SEATBACK, LOWER LH
main71740-40080i199704-200501
main71740-40090i199704-200501
main71740-40100i200501-201008
main71740-40110i201008
71871ABOARD, RR SEAT ARMREST HOLE
main71871-40040i199704-200501
71931ASUPPORT, REAR SEAT HEADREST
main71930-40010-B0i200206-200501
main71930-40010-B0i199704-200501
main71930-40010-B1i200206-200501
main71930-40010-B1i199704-200501
main71930-40010-E0i200206-200501
main71930-40010-E0i199704-200501
main71931-40010-B0i199704-200501
main71931-40010-B0i199704-200501
main71931-40010-B1i199704-200501
main71931-40010-B1i199704-200501
main71931-40010-E0i199704-200501
main71931-40010-E0i199704-200501
71940AHEADREST ASSY, REAR SEAT
main71940-40090-B0i200206-200501
main71940-40090-B0i199704-200501
main71940-40090-B1i200501-201008
MEDIUM GRAY,TRIM1#
main71940-40090-E0i199704-200501
main71940-40090-E0i200206-200501
main71940-40090-E1i200501-201008
ORCHID,TRIM4#
main71940-40090-J0i200206-200501
main71940-40090-J0i199704-200501
main71940-40090-J1i200501-201008
DK.BLUE GRAY,TRIM8#
main71940-40100-B0i199704-199905
main71940-40100-E0i199704-199905
main71940-40101-B0i199905-200501
main71940-40101-B1i200501-201008
main71940-40101-E0i199905-200501
main71940-40101-E1i200501-201008
main71940-40110-B0i200206-200501
main71940-40110-B0i200206-200501
MD.GRAY,TRIM10
main71940-40110-B0i199704-200206
MD.GRAY,TRIM1#
main71940-40110-E0i200206-200501
main71940-40110-E0i200206-200501
ORCHID,TRIM40
main71940-40110-E0i199704-200206
ORCHID,TRIM4#
main71940-40110-J0i200206-200501
main71940-40110-J0i199704-200501
DK.BLUE GRAY,TRIM8#
main71940-40150-B0i201008-201701
MD.GRAY,TRIM1#
main71940-40150-E0i201008-201701
ORCHID,TRIM4#
main71940-40150-J0i201008-201701
DK.BLUE GRAY,TRIM8#
main71940-40160-B0i201008-201701
main71940-40160-E0i201008-201701
71970BSUPPORT ASSY, REAR SEAT HEADREST, RH
main71970-40030i199704-200501
main71970-40040i199704-200501
main71970-40050i200501
71990ASUPPORT ASSY, REAR SEAT HEADREST, LH
main71990-40030i199704-200501
main71990-40040i199704-200501
main71990-40050i200501
72710BADJUSTER ASSY, REAR SEATBACK, INNER RH
main72710-40030i199704-200501
72720BADJUSTER ASSY, REAR SEATBACK, INNER LH
main72720-40030i199704-200501
72730EADJUSTER ASSY, REAR SEATBACK, OUTER RH
main72730-40020i199704-200501
72740EADJUSTER ASSY, REAR SEATBACK, OUTER LH
main72740-40020i199704-200501
72802AHINGE SUB-ASSY, ARMREST CONSOLE
main72802-40020i199704-200501
main72802-40020i200501
main72802-40040i200501
main72802-40040i199704-200501
72809LOCK SUB-ASSY, CENTER ARMREST
main72809-40030-B3i199704-201701
MD.GRAY,TRIM1#
main72809-40030-B4i199704-201701
DK.BLUE GRAY,TRIM8#
main72809-40030-E2i199704-201701
ORCHID,TRIM4#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-40330-B0i199704-200105
main72830-40330-E0i199704-200105
main72830-40330-J0i199704-200105
main72830-40331-B1i200105-200205
main72830-40331-E1i200105-200205
main72830-40331-J1i200105-200205
main72830-40332-B1i200205-200501
main72830-40332-E1i200205-200501
main72830-40332-J1i200205-200501
main72830-40340-B0i199704-199905
main72830-40340-E0i199704-199905
main72830-40341-B0i199905-200105
main72830-40341-E0i199905-200105
main72830-40342-B1i200105-200205
main72830-40342-E1i200105-200205
main72830-40343-B1i200205-200501
main72830-40343-E1i200205-200501
main72830-40350-B0i199704-200105
MD.GRAY,TRIM1#
main72830-40350-E0i199704-200105
ORCHID,TRIM4#
main72830-40350-J0i199704-200105
DK.BLUE GRAY,TRIM8#
main72830-40351-B1i200105-200205
MD. GRAY,TRIM1#
main72830-40351-E1i200105-200205
ORCHID,TRIM4#
main72830-40351-J1i200105-200205
DK. BLUE GRAY,TRIM8#
main72830-40352-B1i200205-200501
MD.GRAY,TRIM1#
main72830-40352-E1i200205-200501
ORCHID,TRIM4#
main72830-40352-J1i200205-200501
DK.BLUE GRAY,TRIM8#
main72830-40360-B0i199704-200105
main72830-40360-E0i199704-200105
main72830-40360-J0i199704-200105
main72830-40361-B1i200105-200205
main72830-40361-E1i200105-200205
main72830-40361-J1i200105-200205
main72830-40362-B1i200205-200501
main72830-40362-E1i200205-200501
main72830-40362-J1i200205-200501
main72830-40370-B0i199704-200105
main72830-40370-E0i199704-200105
main72830-40370-J0i199704-200105
main72830-40371-B1i200105-200205
main72830-40371-E1i200105-200205
main72830-40371-J1i200105-200205
main72830-40372-B1i200205-200501
main72830-40372-E1i200205-200501
main72830-40372-J1i200205-200501
main72830-40380-B0i199704-199905
main72830-40380-E0i199704-199905
main72830-40381-B0i199905-200105
main72830-40381-E0i199905-200105
main72830-40382-B1i200105-200205
main72830-40382-E1i200105-200205
main72830-40383-B1i200205-200501
main72830-40383-E1i200205-200501
main72830-40471-B0i200206-200501
main72830-40471-E0i200206-200501
main72830-40471-J0i200206-200501
main72830-40481-B0i200206-200501
main72830-40481-E0i200206-200501
main72830-40481-J0i200206-200501
main72830-40500-B0i200501-201008
MEDIUM GRAY,TRIM1#
main72830-40500-E0i200501-201008
ORCHID,TRIM4#
main72830-40500-J0i200501-201008
DK.BLUE GRAY,TRIM8#
main72830-40510-B0i200501-201008
main72830-40510-E0i200501-201008
main72830-40510-J0i200501-201008
main72830-40520-B0i200501-201008
main72830-40520-E0i200501-201008
main72830-40530-B0i200501-201008
main72830-40530-E0i200501-201008
main72830-40590-B0i201008-201701
MD.GRAY,TRIM1#
main72830-40590-E0i201008-201701
ORCHID,TRIM4#
main72830-40590-J0i201008-201701
DK.BLUE GRAY,TRIM8#
main72830-40600-B0i201008-201701
main72830-40600-E0i201008-201701
main72830-40600-J0i201008-201701
main72830-40610-B0i201008-201701
main72830-40610-E0i201008-201701
main72830-40620-B0i201008-201701
main72830-40620-E0i201008-201701
72833APLATE, SEAT CENTER ARMREST, INNER
main72832-40070-B0i200206-200501
main72832-40070-B1i200206-200501
main72832-40070-E0i200206-200501
main72833-40080i199704-200501
main72833-40090i199704-200501
main72833-40120i200206-200501
main72833-40140i200501
72834PANEL, REAR SEAT CENTER ARMREST, NO.2
main58890-40090i199704-200501
72877BCOVER, SEAT ARMREST, RH
main72877-40090-B0i199704-201701
MD.GRAY,TRIM1#
main72877-40090-B0i200206-200501
MD.GRAY,TRIM10
main72877-40090-B1i199704-201701
DK.BLUE GRAY,TRIM8#
main72877-40090-E0i199704-201701
ORCHID,TRIM4#
main72877-40090-E0i200206-200501
ORCHID,TRIM40
main72877-40100-B0i199704-199905
main72877-40100-E0i199704-199905
main72877-40101-B0i199905-200501
main72877-40101-B0i200501-201701
main72877-40101-E0i200501-201701
main72877-40101-E0i199905-200501
72878BCOVER, SEAT ARMREST, LH
main72878-40070-B0i199704-200501
MD.GRAY,TRIM10
main72878-40070-B0i200501-201701
MD.GRAY,TRIM1#
main72878-40070-B1i199704-201701
DK.BLUE GRAY,TRIM8#
main72878-40070-B2i199704-201701
main72878-40070-E0i199704-200501
ORCHID,TRIM40
main72878-40070-E0i200501-201701
ORCHID,TRIM4#
main72878-40070-E1i199704-201701
8121INTERIOR LAMP
→ Go to FIG 81-21
9015950001
main90159-50001
9017906204
main90179-06204
9038612027
main90386-12027
9046706017B0
main90467-06017B0
91631B0818
main91631-B0818
9352054012
main93520-54012
9413000802
main94130-00802
9417120500
main94171-20500
9418560800
main94185-60800
9461310800
main94613-10800
9616001000
main96160-01000

54 parts on this diagram · 7 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
